In General


The Scoop:

I started this page after completing a page for Detroit that covered the majority of bridges and overpasses found in the metro area.  This is an introduction to the many varieties of railroad bridges that exist, and some that are no longer with us.  For further reading, check out some of the links I have come across.

Bridge - Overpass - Viaduct.... What is the difference?  The large majority of the bridges mentioned below can probably be referred to as a bridge or an overpass, and the terms are interchangeable.  One fellow who helped me with another page in PA is a "bridge guy", and may disagree.  Being that almost all bridges in Detroit are "older", I don't think any qualify as being called a viaduct, but some, like #8 and #9 going to Zug Island, are bridges, and not overpasses or viaducts.  I reference this page in Detroit, because, as I said, this is what got me going on this page.

A viaduct is a specific type of bridge that consists of a series of arches, piers or columns supporting a long elevated railway or road.  Typically a viaduct connects two points of roughly equal elevation, allowing direct overpass across a wide valley, road, river, or other low-lying terrain features and obstacles.

Acknowledgements:
Structsource
Google Maps
Open Railway Maps
Bing Maps
Denver Todd
Dave Frieder
Scott Dunn
Adam J.W.C
Bob Castle
Rich W.

Websites and other additional information sources of interest for the area:
http://www.structsource.com/railroadbridge/main.html
https://en.wikipedia.org/wiki/Viaduct
http://pghbridges.com/termsBrg.htm
http://pghbridges.com/basics.htm covers railroad and automobile bridges, extensive descriptions, but no pictures or diagrams to help explain


Bridge Types


FIXED BRIDGES
Steel Girder
Steel Truss
Precast Concrete
Trussed Through Arch

MOVABLE BRIDGES
ABT Bascule
Lift
Swing


Here is one listing of railroad bridge types, however, it is for "modern" bridges being built today, and doesn't include a lot of the "older" ones found around any town of reasonable "old" age, like Baltimore, Detroit, and Chicago.

Stuff in grey is from Strucsource

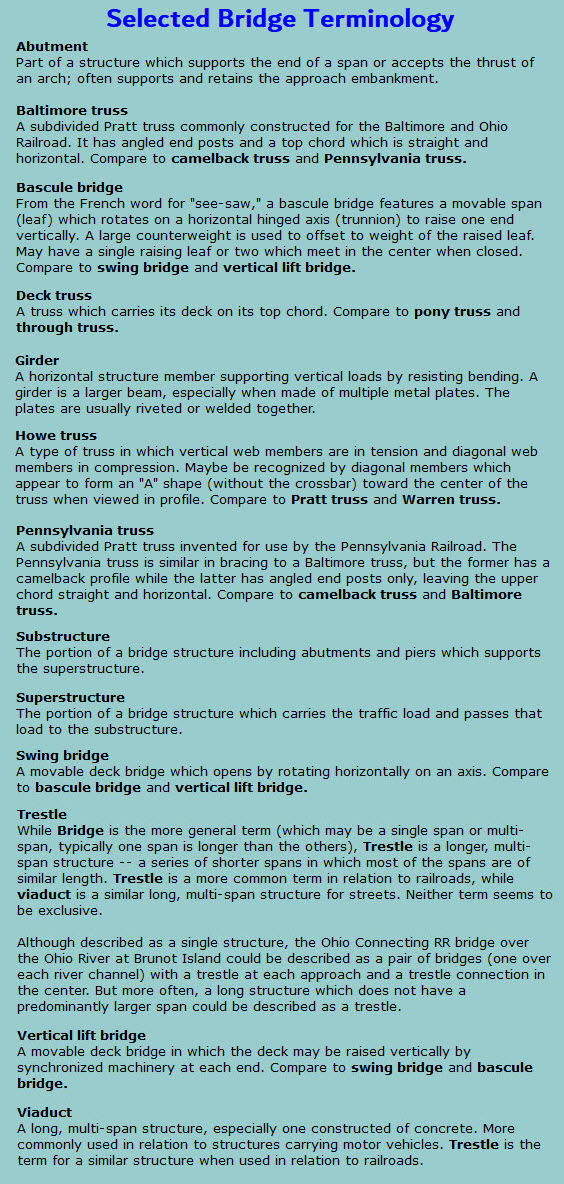

From pghbridges.com




FIXED BRIDGES

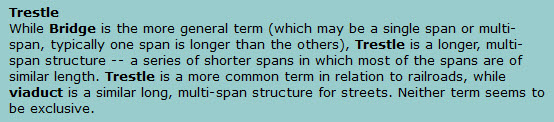

Trestle's



Trestle Type Bridges






Steel Girder Types

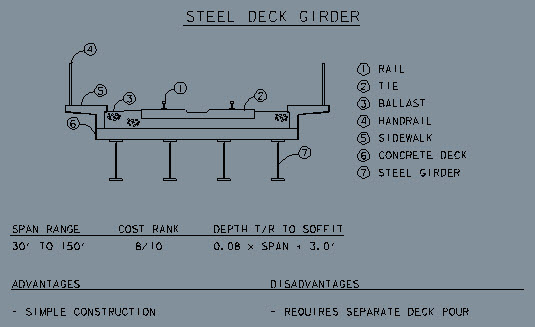

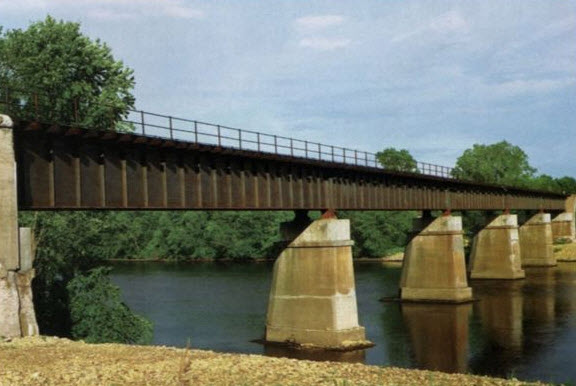

Steel Deck Girder

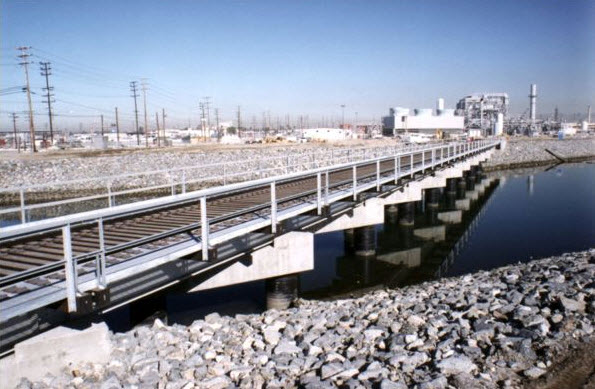

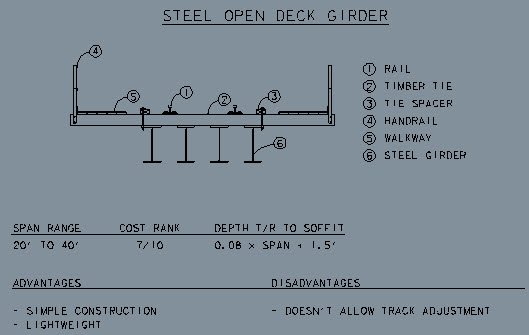

Steel Open Deck Girder

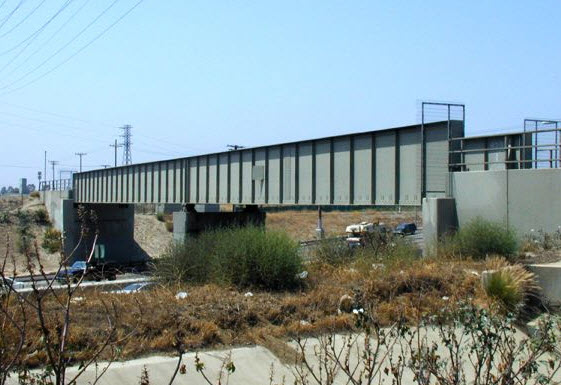

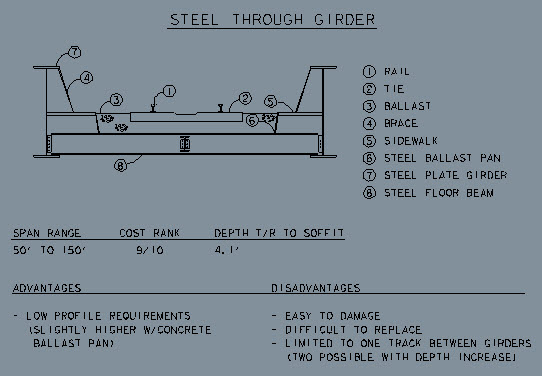

Steel Through Girder




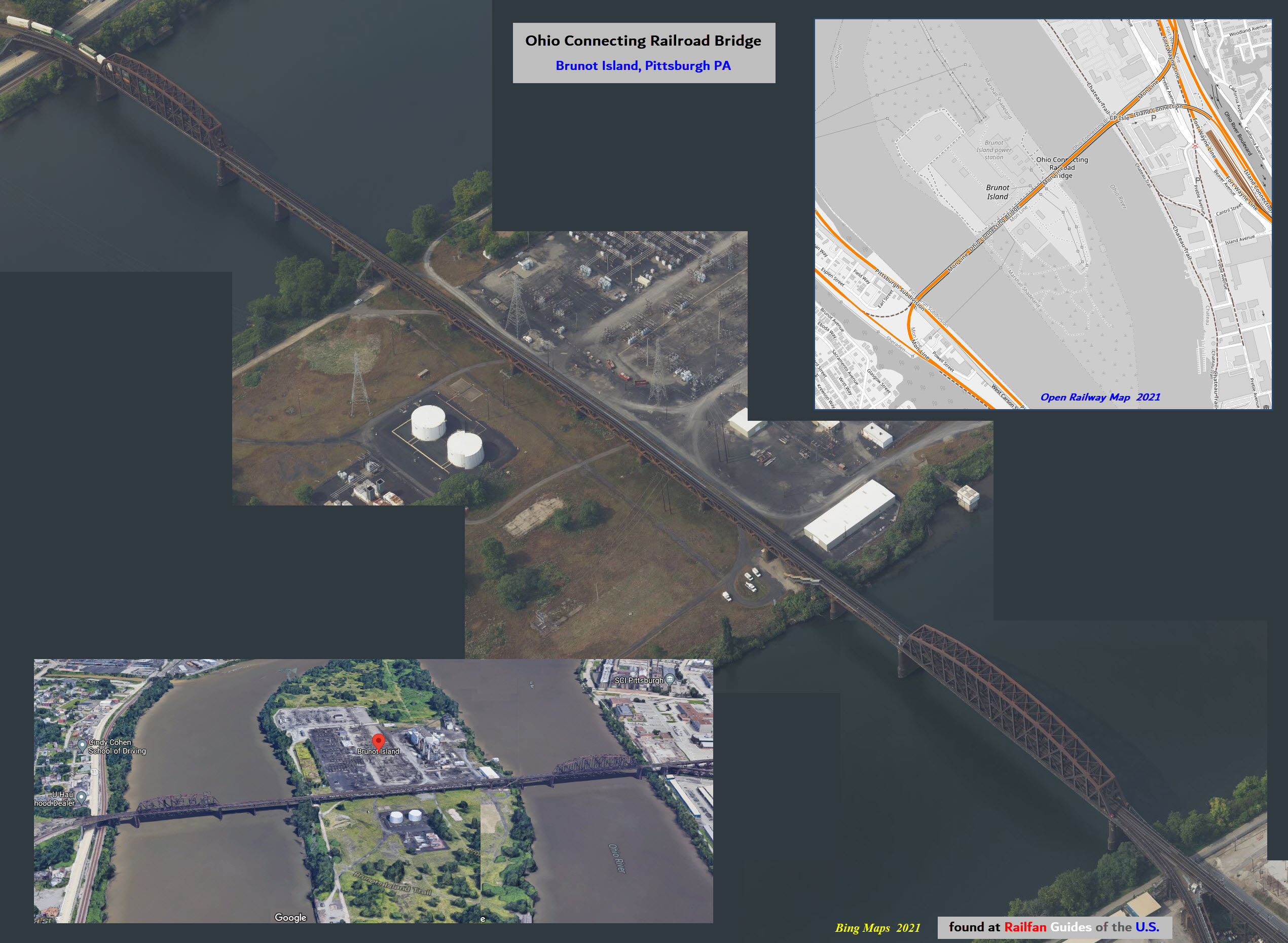

Steel Truss

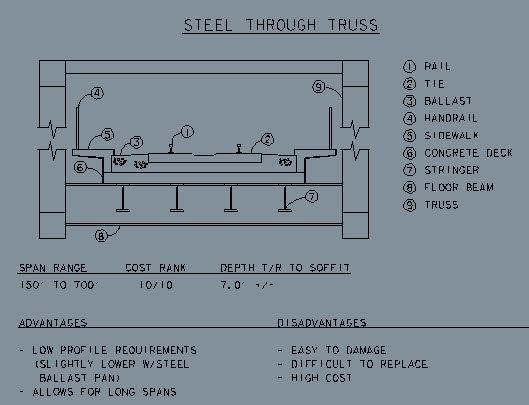

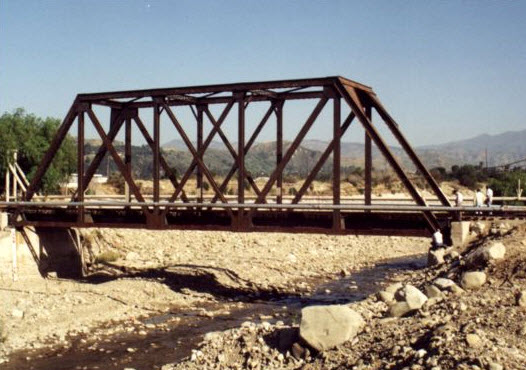

Steel Through Truss

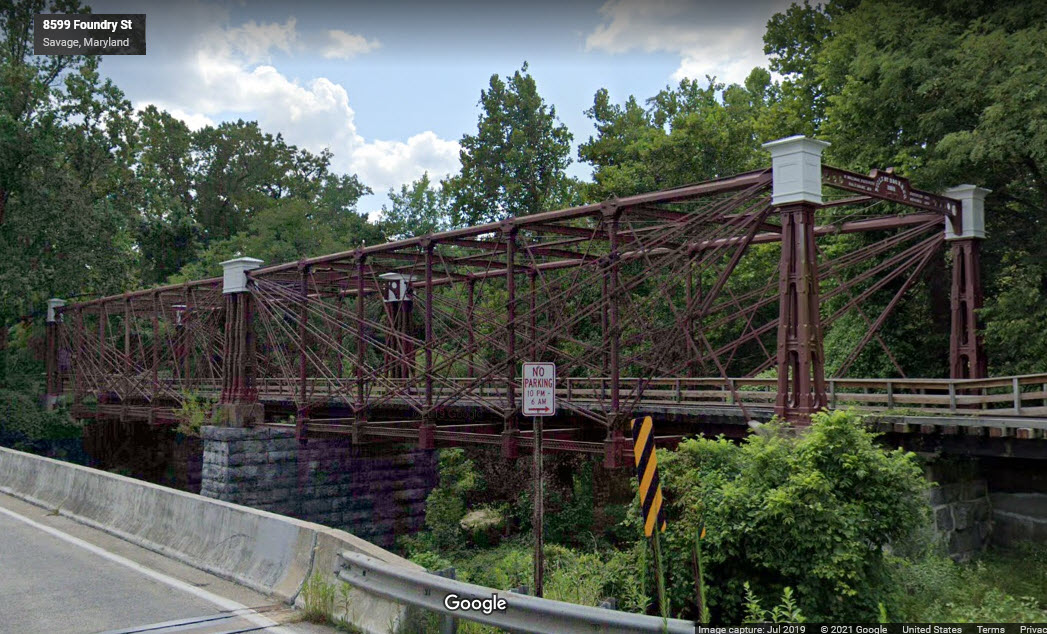

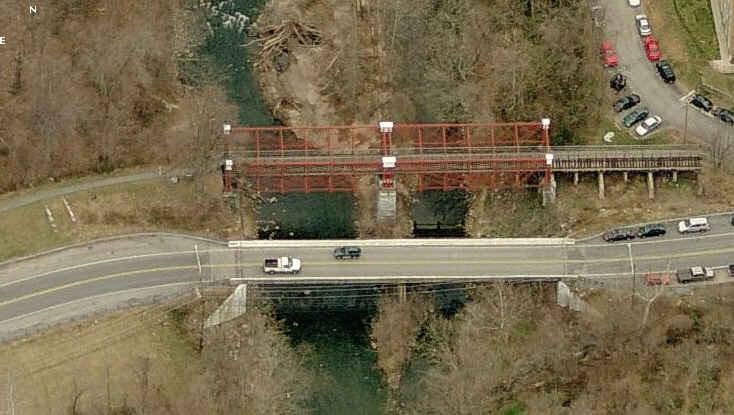

Bollman Iron Truss

GPS Coordinates: 39.13485, -76.82506
This is the only surviving example of this type of bridge, built by the B&O in 1852, and moved to Savage MD in 1887.
I have a whole page dedicated to this bridge here.






Precast Concrete

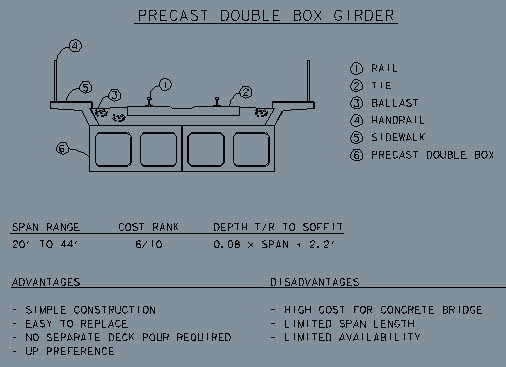

Precast Concrete Double Box Girder

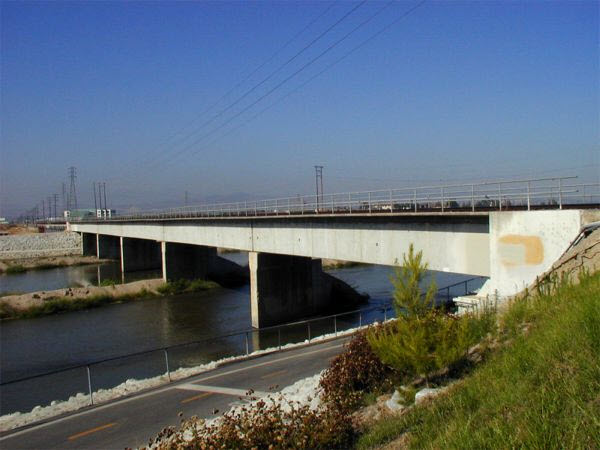

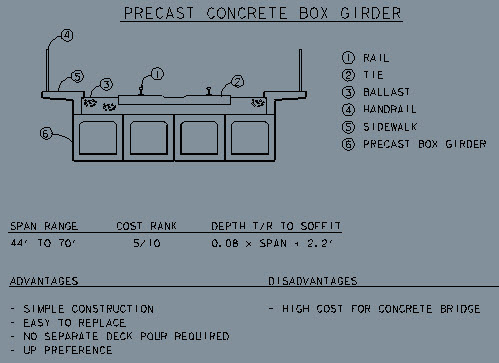

Precast Concrete Box Girder

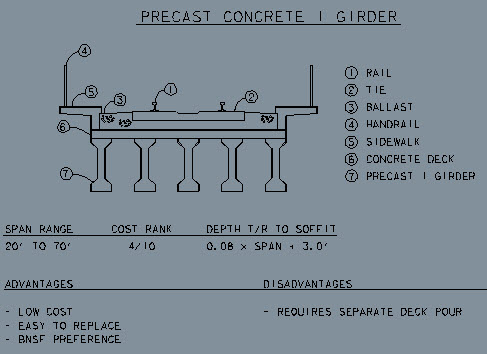

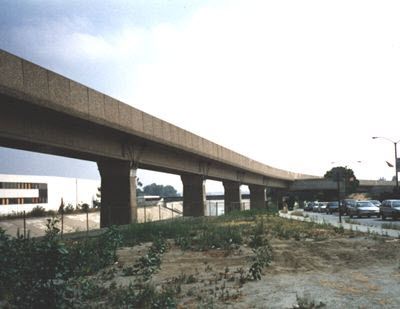

Precast Concrete I-Beam Girder

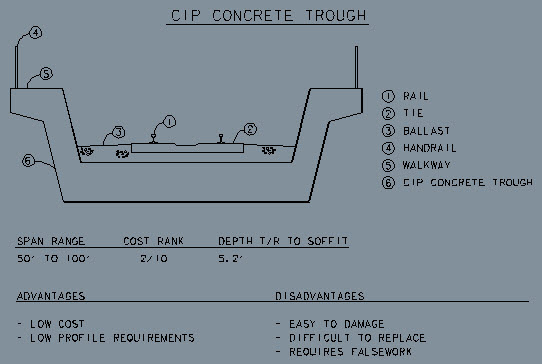

CIP Concrete Trough

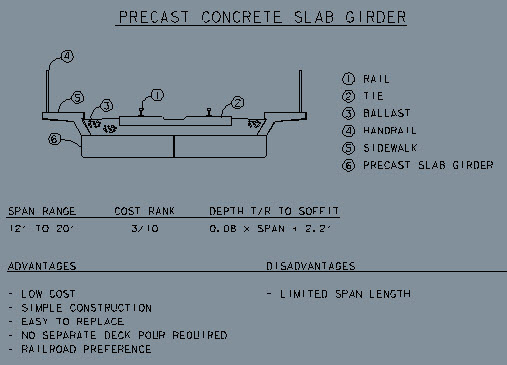

Precast Concrete Slab Girder

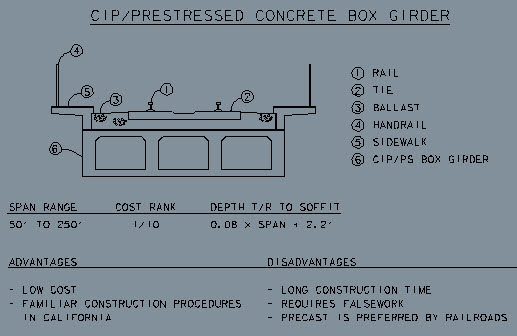

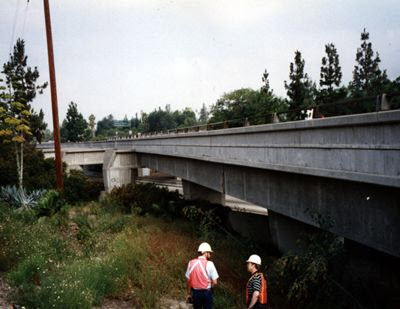

Prestressed Concrete Box Girder




Trussed Through Arch

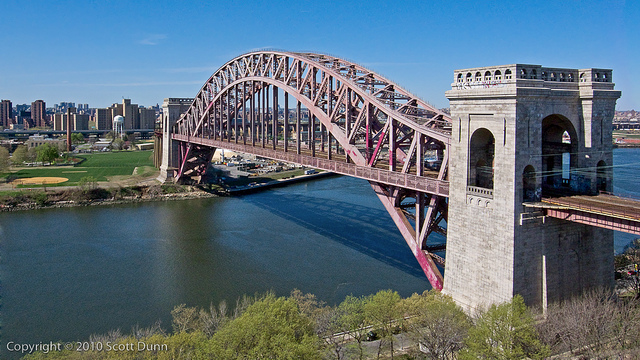

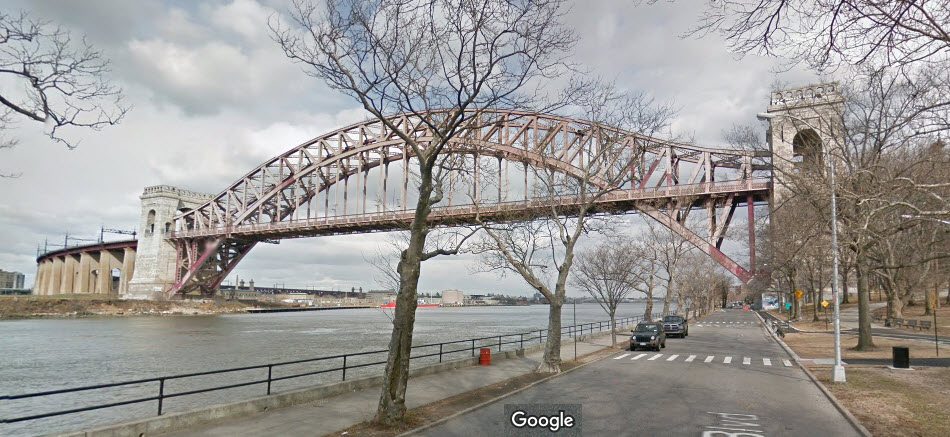

Hell Gate Bridge

GPS Coordinates: 40.78269, -73.92219
https://railfanguides.us/ny/NYChellgate/index.htm
https://en.wikipedia.org/wiki/Hell_Gate_Bridge
https://en.wikipedia.org/wiki/Sydney_Harbour_Bridge
https://en.wikipedia.org/wiki/Tyne_Bridge

A bridge (almost) in a class all of it's own.  I used to sit up at night in the 60's and watch the New Haven trains come and go over this bridge.  Priceless memories!!!
Hell Gate is not the largest, but it was the first, completed in 1916.  It is 1,017 feet long, but 17,000 feet if you include the elevated approaches, and clears the water below by 135 feet.  It goes between the Queens and the Bronx via Ward and Randall Islands.  It was built by the New Haven RR.

Sydney Australia has the largest of these: the Sydney Harbour Bridge - it carries car, rail, and pedestrian traffic, and you can even climb to the top of it!  It was completed in 1932, and Hell Gate did provide the inspiration for using this type.  It is 1,149ft long, and sits 161 feet above the water.  It carries 8 car lanes and 2 streetcar tracks electrified at 1,500 volts
.

A third example of this type of bridge is the Tyne Bridge in Newcastle, England.  It is 1,276ft long, and opened in 1928.

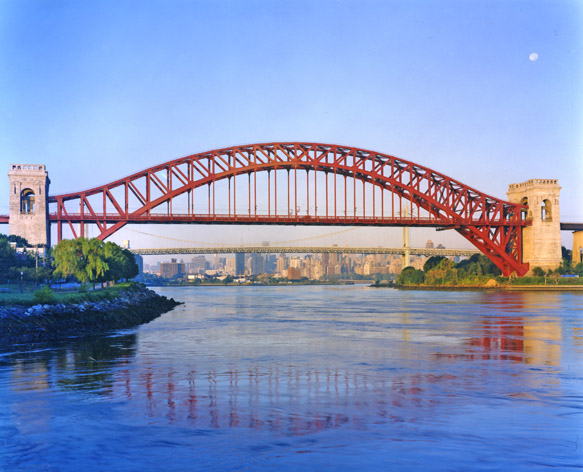

photo by Dave Frieder via Wikipedia

photo by Scott Dunn

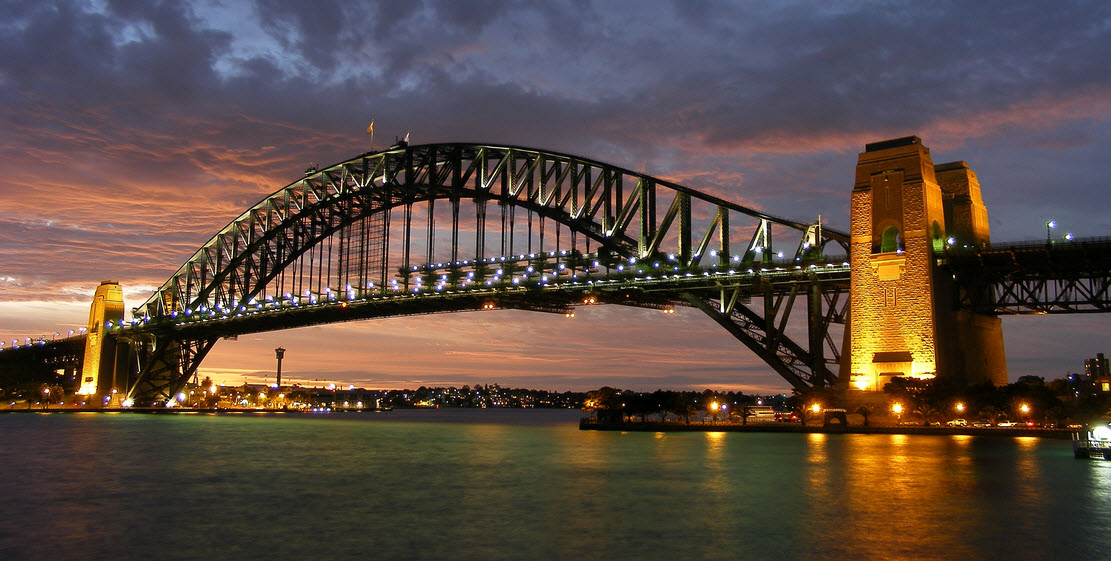

The Sydney Harbour Bridge, photo by Adam J.W.C, 2008, via Wikipedia

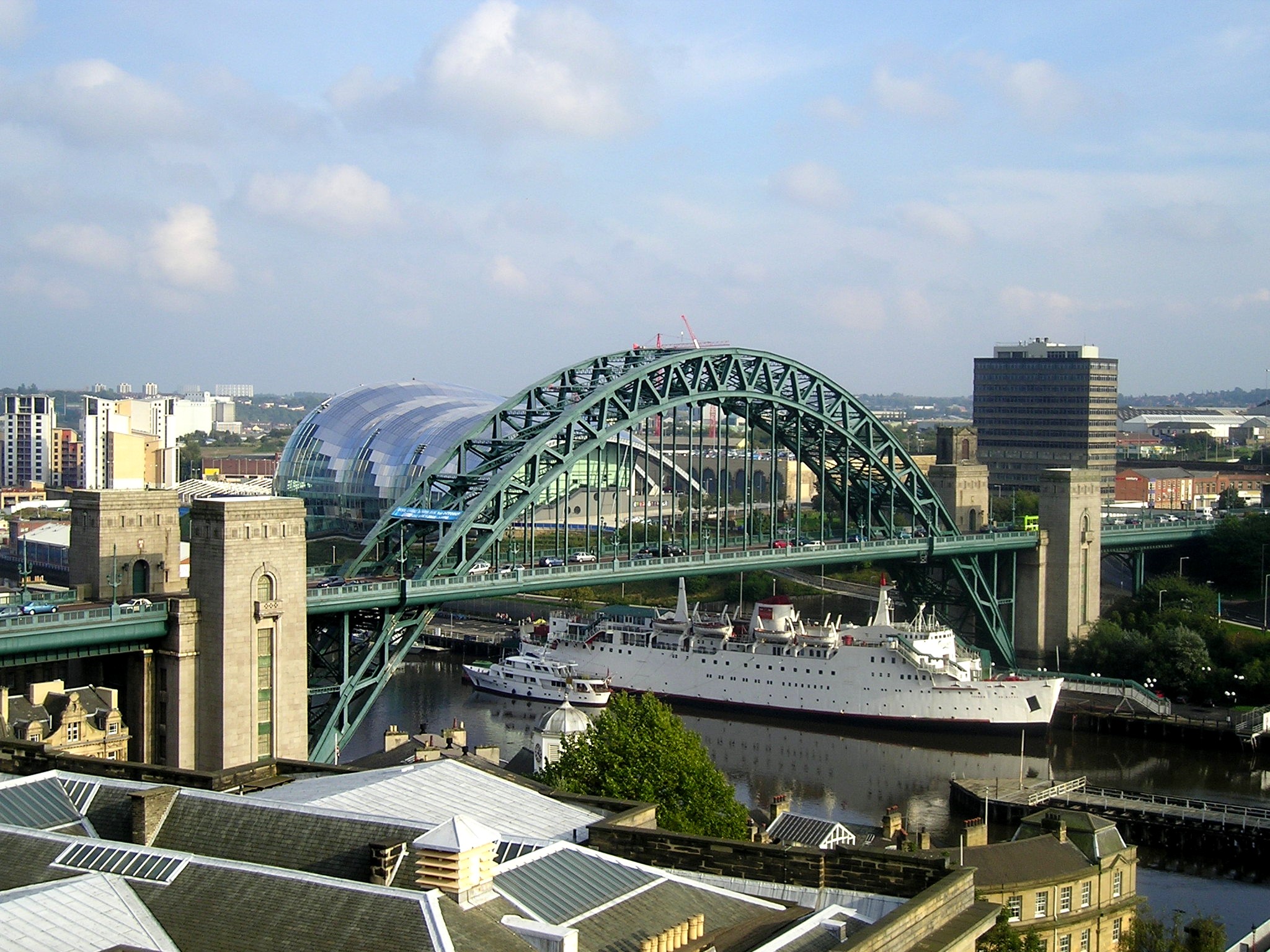

The Tyne Bridge, photo by Bob Castle, 2006, via Wikipedia


MOVABLE BRIDGES

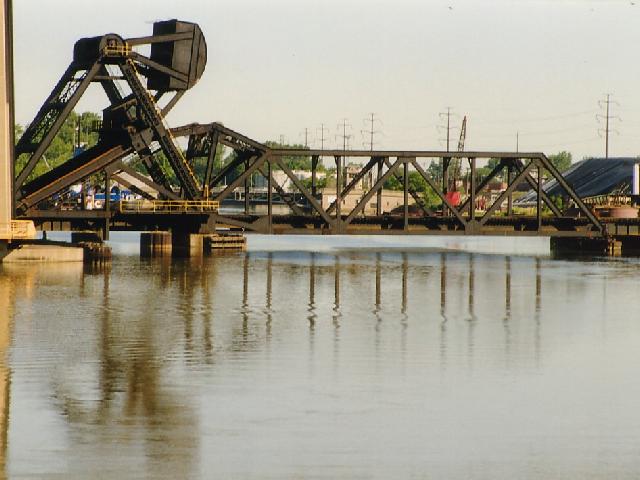

ABT Bascule

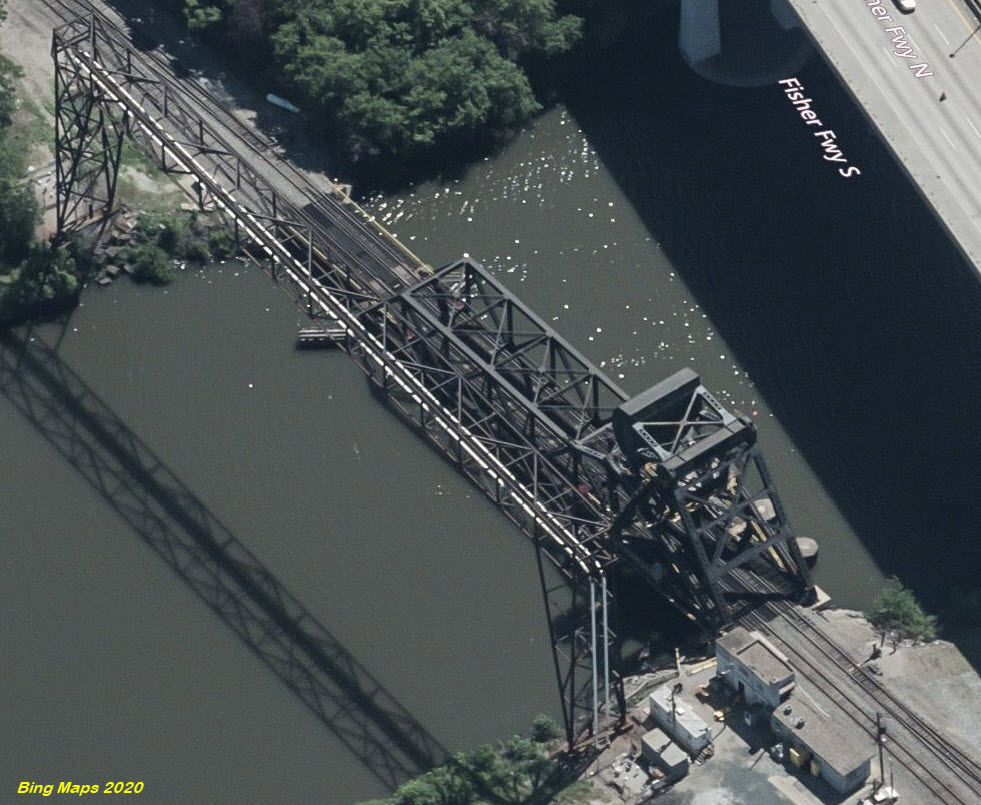

GPS Coordinates: 42.17247, -83.08392

https://historicbridges.org/bridges/browser/?bridgebrowser=michigan/rougens/
http://www.michiganrailroads.com/stations-locations/498-wayne-county-82/wayne-co-a-c/2174-bridge-rouge-detroit-mi-wabash-ns

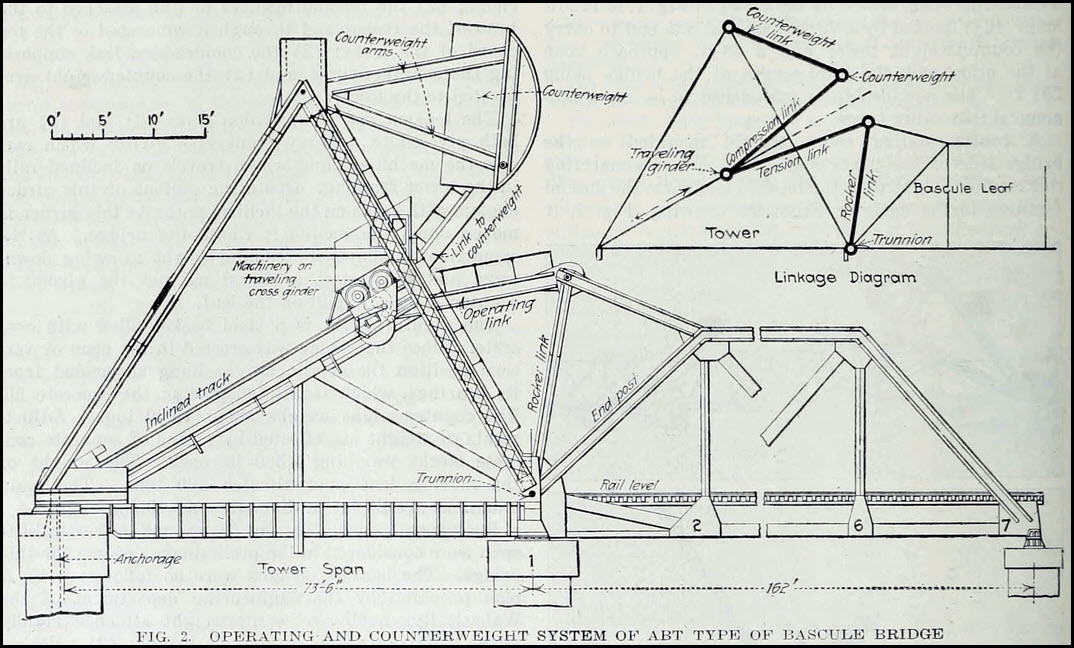

This bridge was built by the Wabash in the mid 1920's, and replaced a swing bridge when the Rouge River was widened for the Ford plant.  It was also used by the Detroit & Toledo Shore Line Railroad, and later the Pennsy later in the 1920's.  It is a bascule bridge that utilizes a complex counterweight that moves to adjust the weight as the bridge raises and lowers, a patented design called the ABT Bascule bridge.  It is among the rarest bascule bridge types in the country.  Michigan has three examples.  Just about the only way to get good pictures is by boat!








Lift

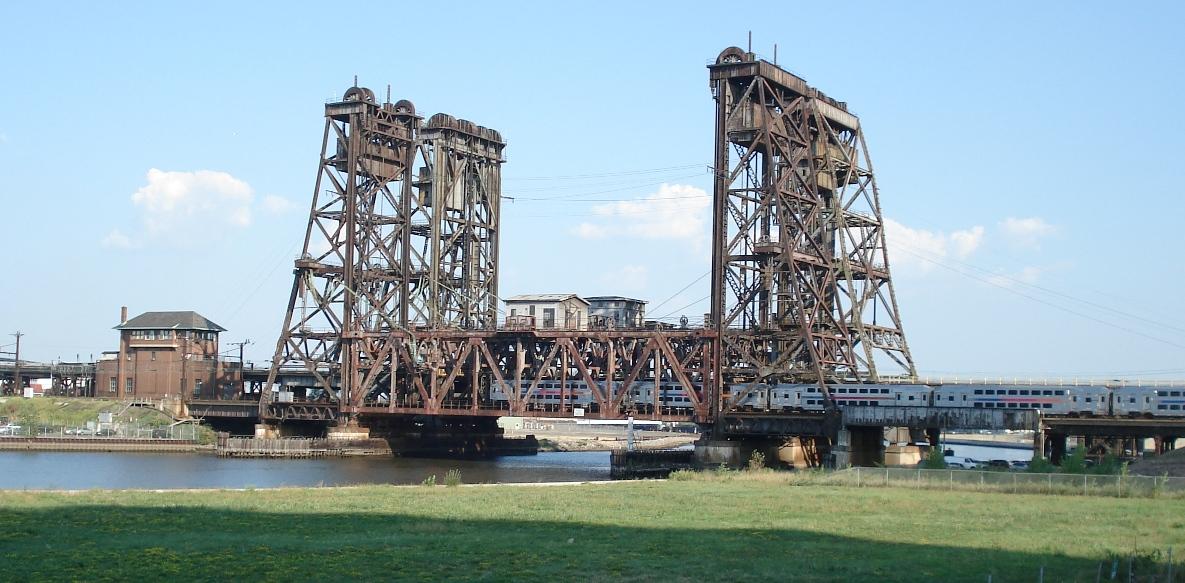

Dock Bridge, Newark NJ

This "bridge" is actually two parallel spans crossing the Passaic River, and they carry Amtrak and NJT trains running on the North East Corridor.

photo by Rich W.


Swing

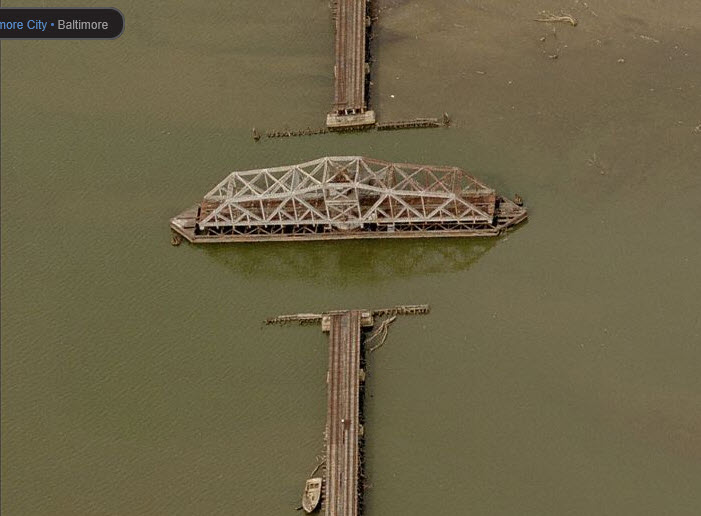

Spring Garden Swing Bridge, Baltimore MD

This bridge was built by the Western Maryland Rwy to connect the east and west sides of an inlet, so the WM trains could get to Port Covington Yard.  Once the WM disappeared and they tore up the yard, the bridge was no longer needed, so they left it in it's open position.  Since that aerial picture from Bing was taken, the tracks have been removed.
