Doll Posts or Doll Arms are "sort of" an accessory item for signals.....
When a signal could not be located directly to the right of the track it governed, with another track between it and the signal, railroads employed a Doll Post to indicate that to the engineer..... Think of the Doll Post as a place holder.

Many railroads employed a bracket post installation, much as they would if they were using two signals.  In place of a second signal though, they would use a short mast with a blue light on it, and if you have ever seen one, it is a deep, deep blue.

Other bracket post installations, such as the one below on SEPTA in the Philadelphia area, uses a blue circular reflector on the mast.

When the railroads did not want to go to the expense of putting in a bracket post, they would set up a simple two pipe installation to the side of the mast, supported by a small piece of angle iron as seen below in the B&O and SCL installations.

And furthermore, some railroads, like the B&O, employed no signal at all.

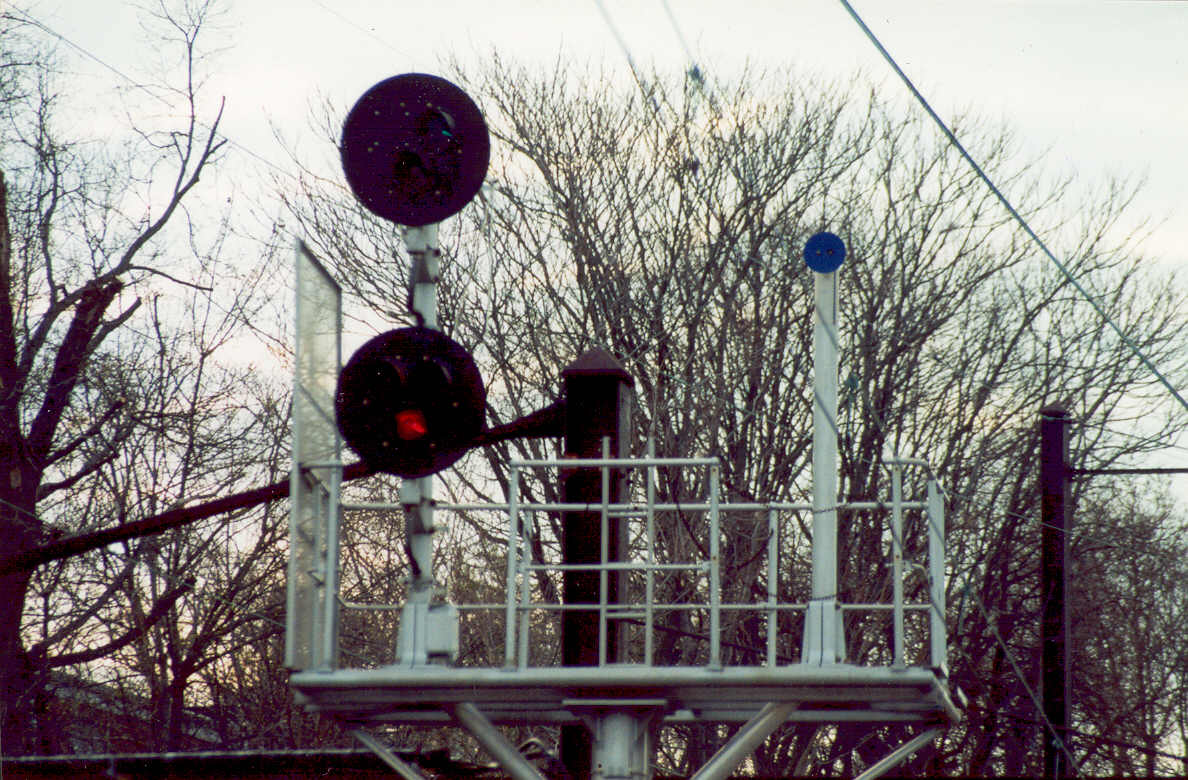

The B&M was one railroad to employ Doll Posts with an active blue signal,
A visit to Waltham Massachusetts will not disappoint you (unless the lamp was out as it was on one of my trips)!
The Seaboard is another railroad that employed the blue lights, also shown below.

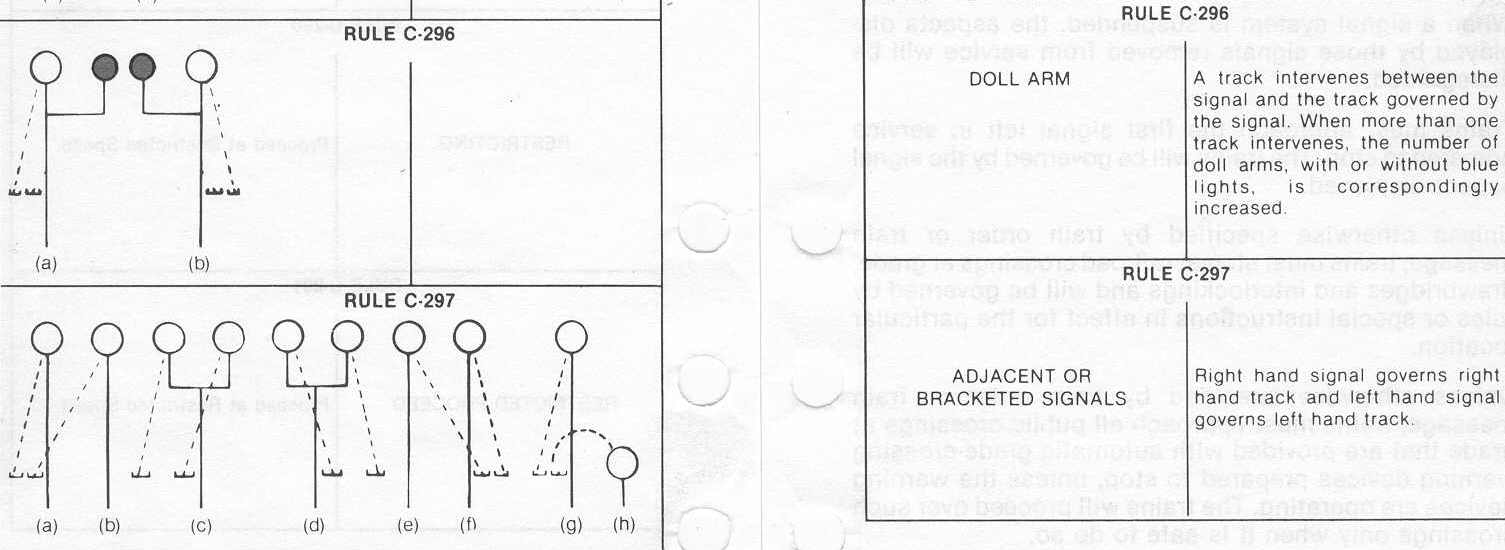

The picture below, out of a B&O rulebook, illustrates the doll post concept.




"Perryville" MD

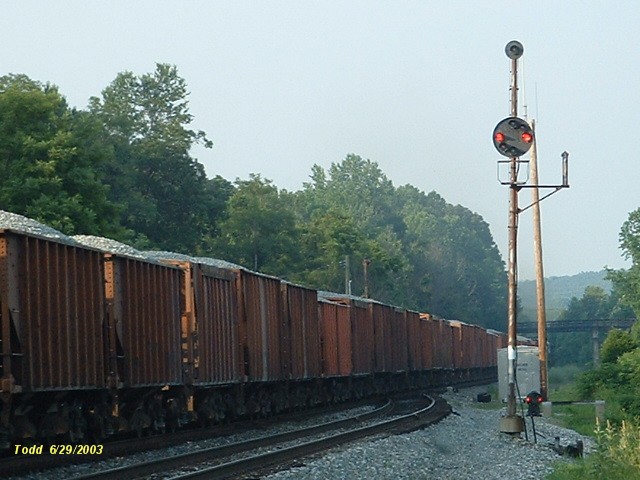

Typical B&O CPL Doll Post located on the east end of Aiken Siding siding north of Perryville MD.
Notice the lack of a lamp on the post.

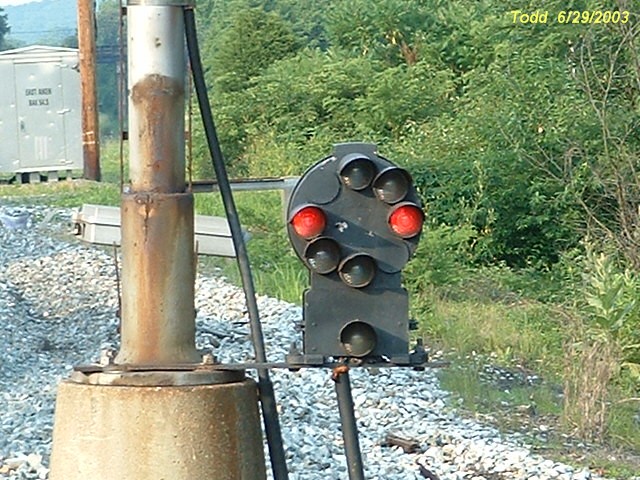

Also notice how the dwarf signal is mounted to the base of the high signal.... interesting!

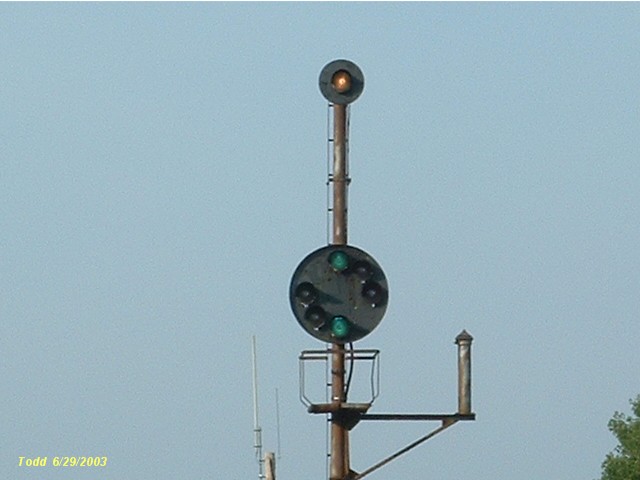

The high signal is for the main line, which is to the left,
And the dwarf signal is for the siding on the right, which is in between the signal and the track it governs, hence the Doll Post.
Picture taken from Jackson Station Road.




Lineville AL

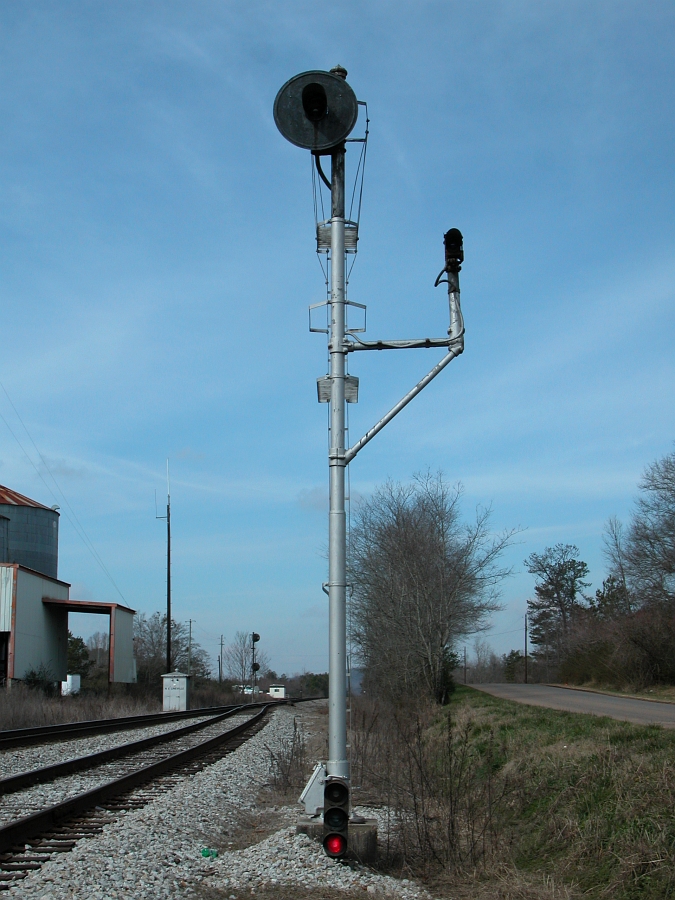

A pair of pictures of a US&S Searchlight signal with a doll post in Lineville AL on an ex-SCL line,

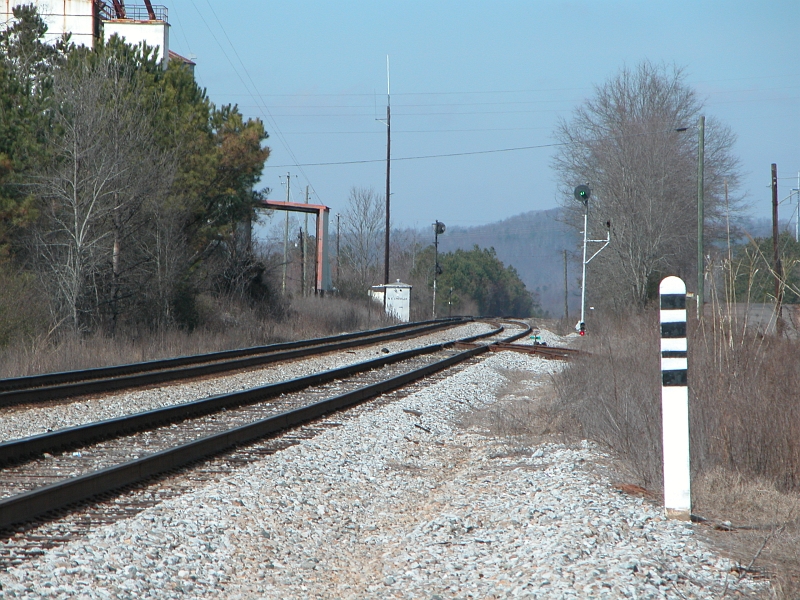

one of which includes a shot of a classic SCL whistle post.
As with many other railroads, they use a high signal for the mainline and a dwarf for the siding.
Photos courtesy John Higginson.


Ann Arbor MI

You don't often get to see any semaphore with doll post installations any more.  This is a long unused semaphore installation in on the north side of Toledo not to far away from the Ann Arbor tower off Matzinger Rd.  My picture on the left is from 2009.  The photo on the right, courtesy Eric Schmelz, was taken back in 1998 when the signal installation was still intact.  Very nice shot!




Media PA

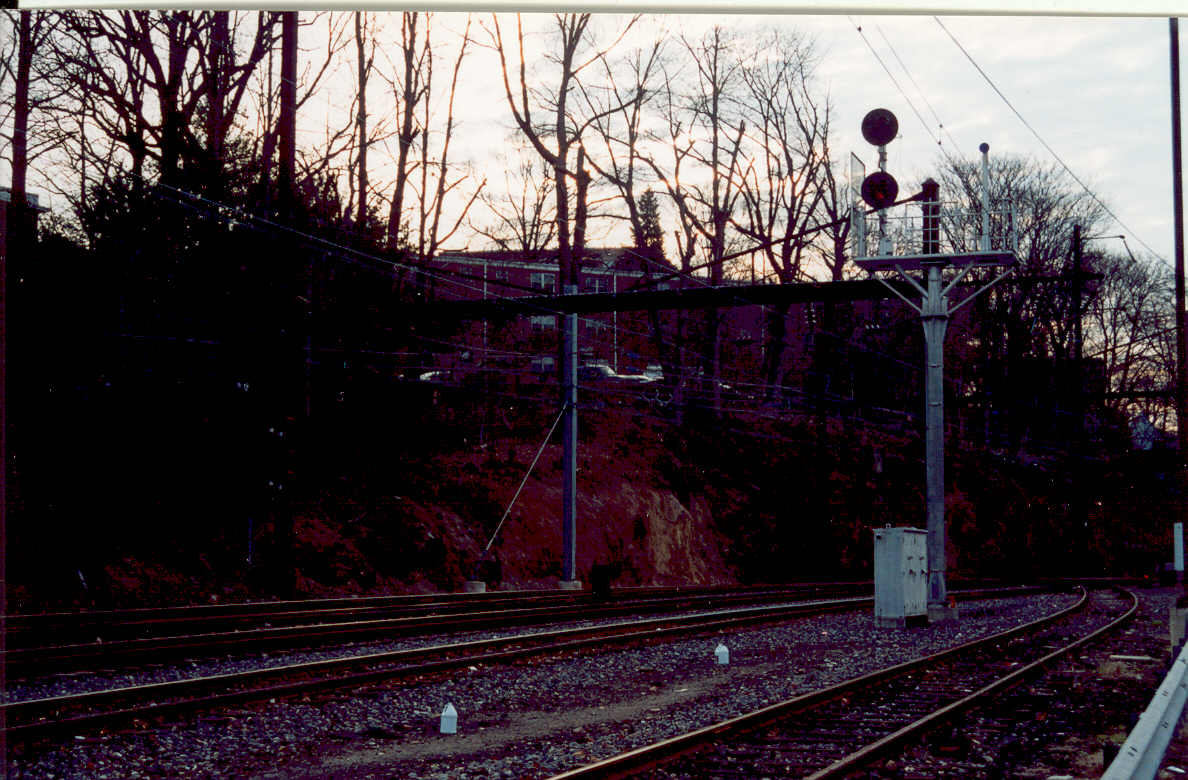

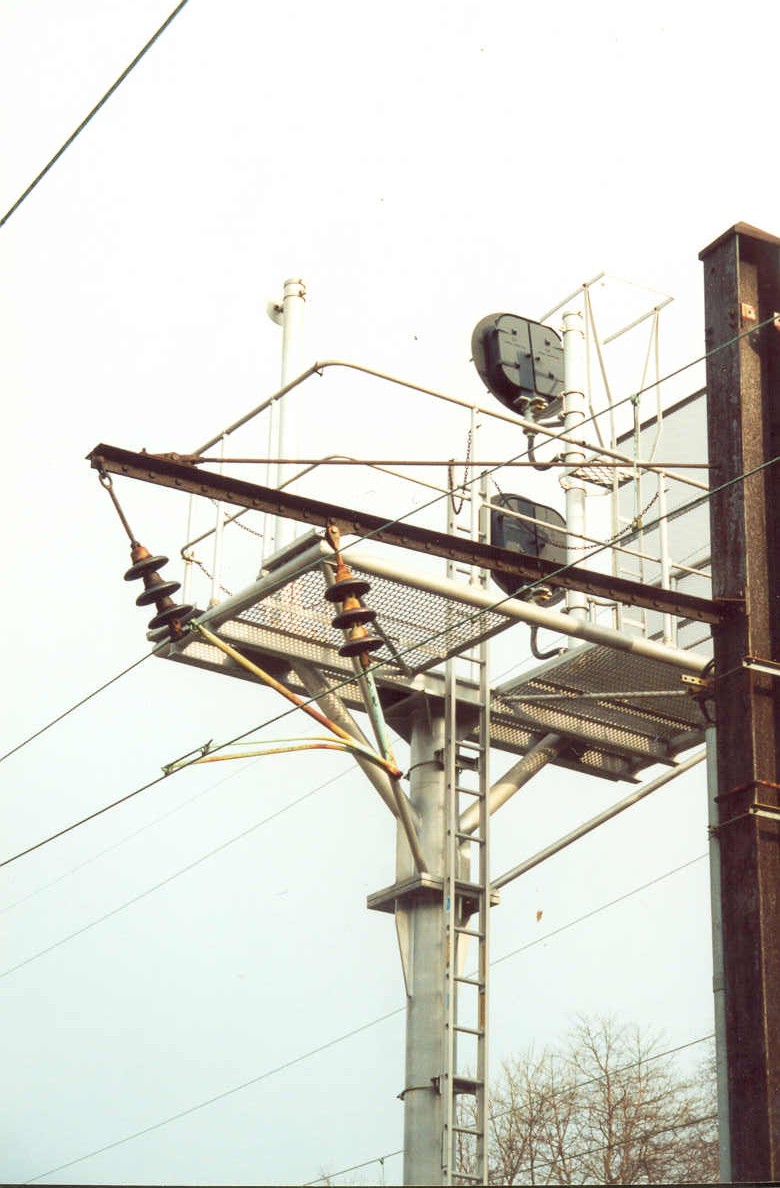

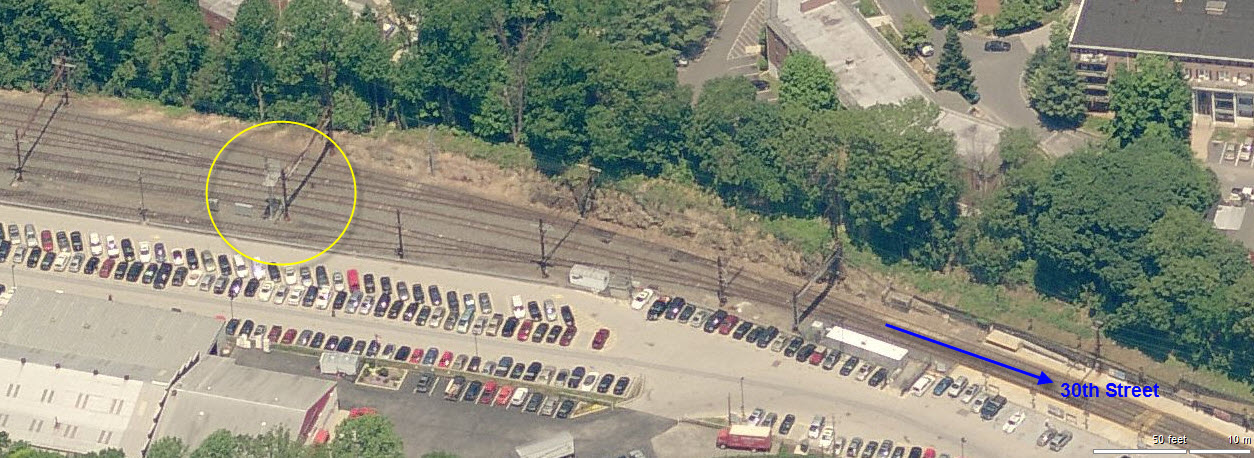

SEPTA's version of a doll post, it uses a blue reflector.  This one is on the R3 line in Media PA.




Shenandoah Junction WV

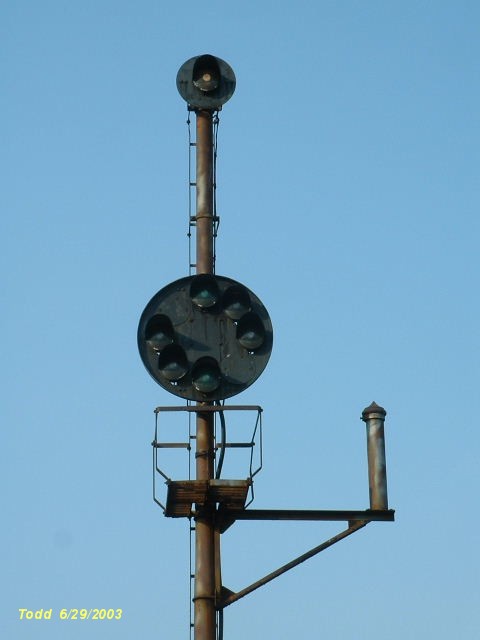

Photo used by permission from Todd Paoni.

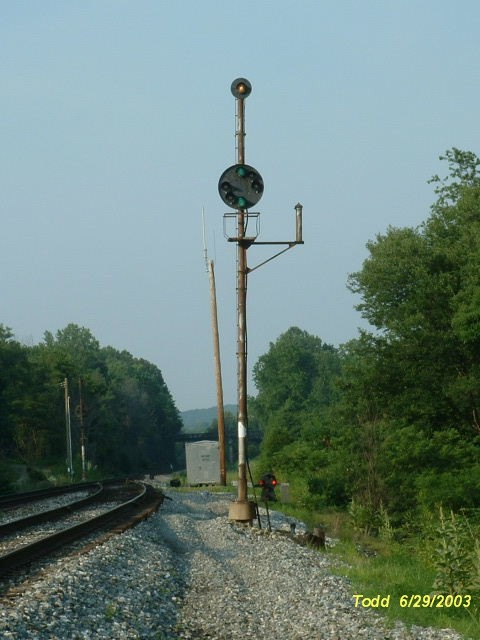

Many more excellent pictures from around the MD-VA-WV areas by Todd are at:  http://members.trainorders.com/bucky1986/




Waltham MA

Just east of the tower in Waltham is a signal installation with a lit doll post.  I've been there twice, and on one of the occasions, the lamp was out.  The reason for the doll post is because the signal mast is located to the right of a siding, and it is between the signal and the track it governs.

The doll and accompanying signal have now been replaced, darn, there goes another set of searchlight signals (they are beginning to disappear as quickly as the CPL's and PL's!  :-)

I have a picture of it somewhere in my slide collection, but if someone lives near there and can swing by to get a picture, it would be greatly appreciated.

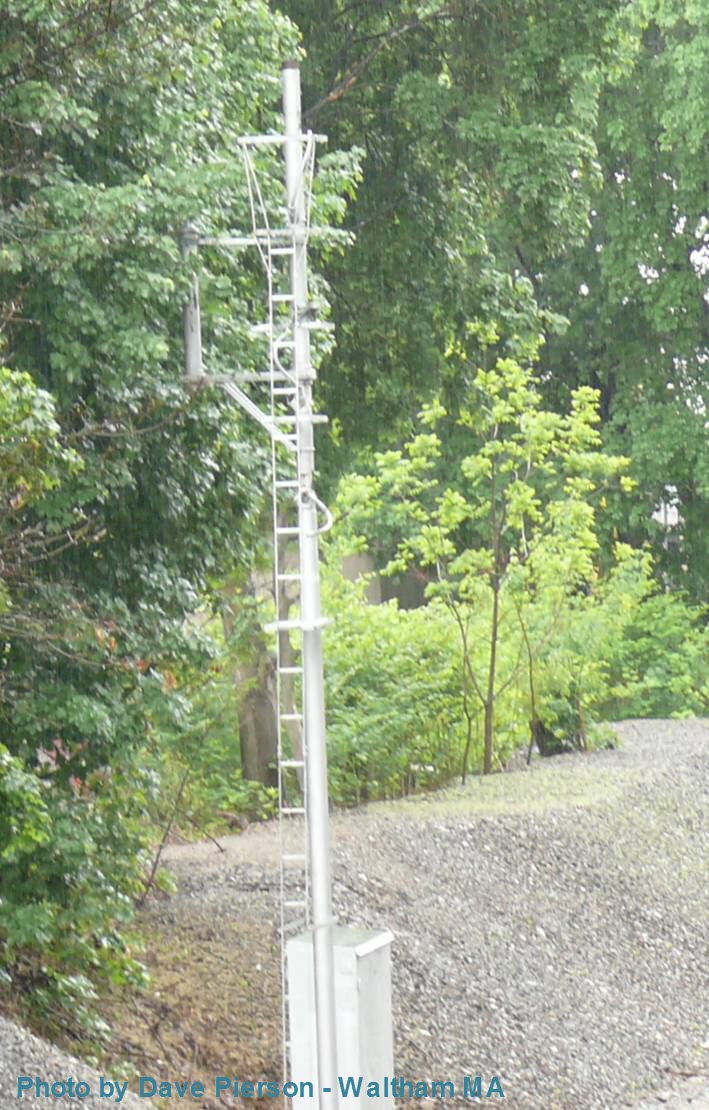

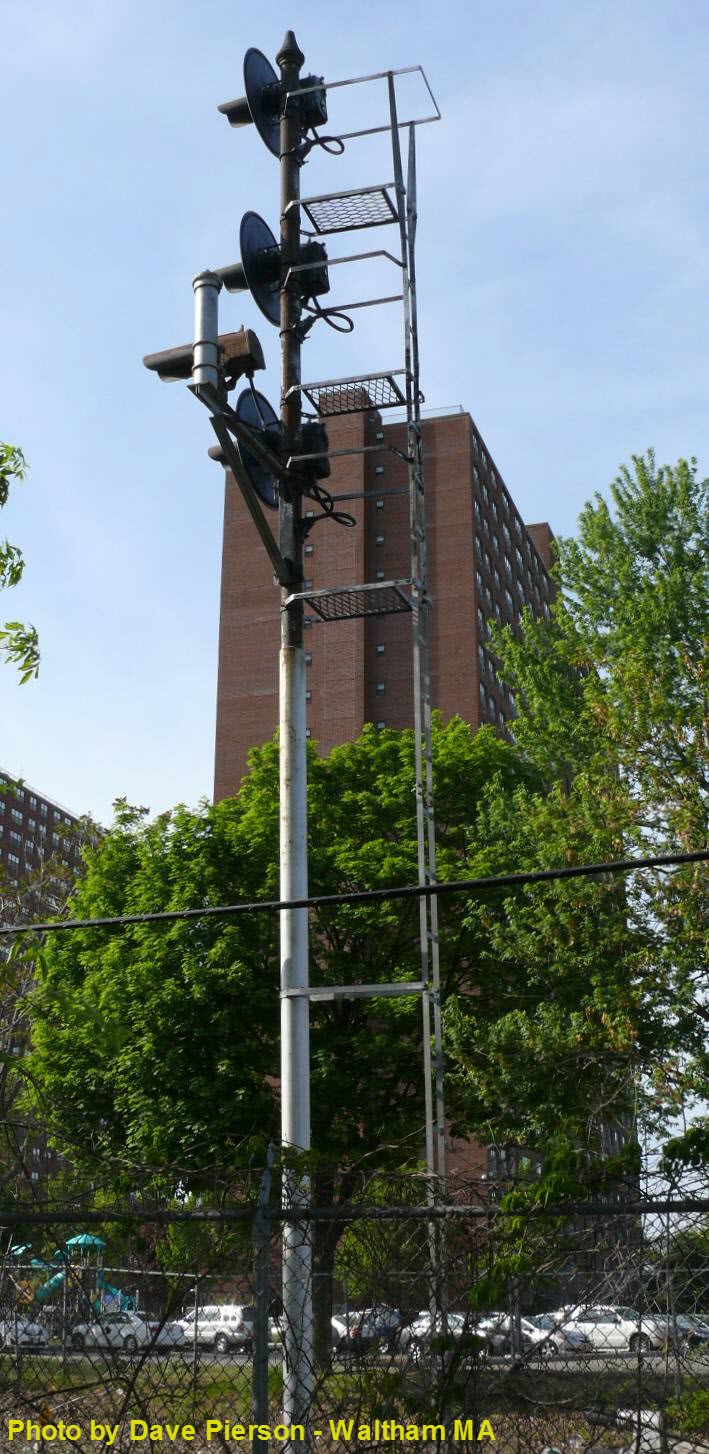

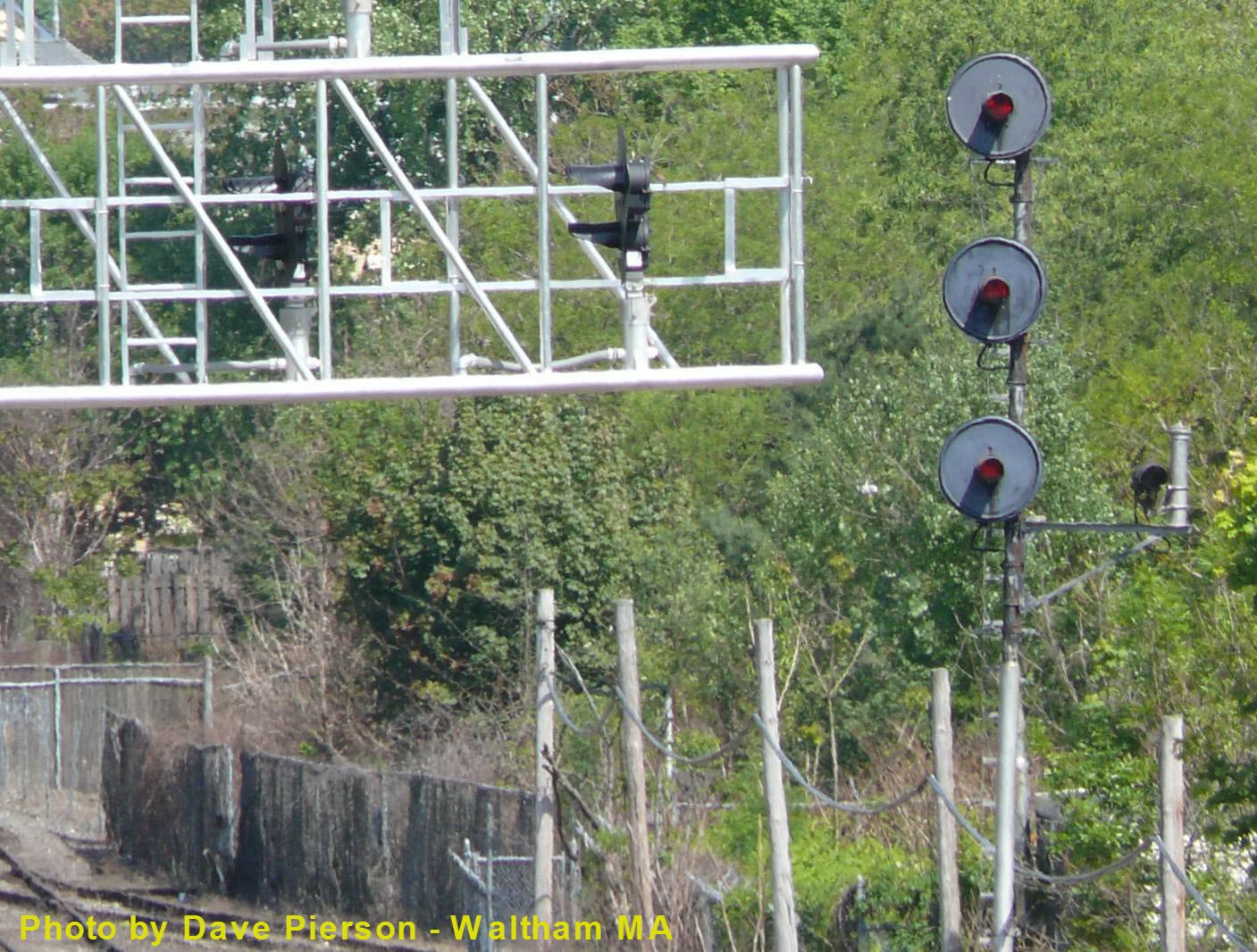

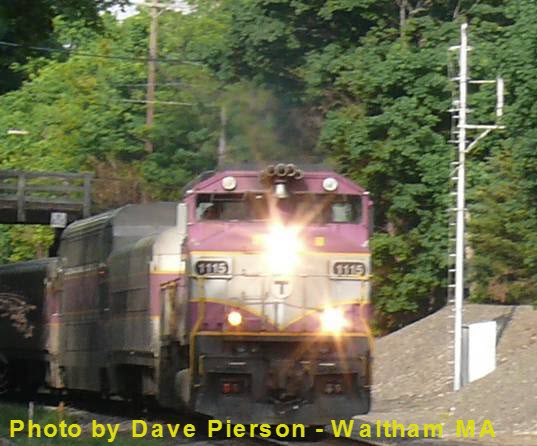

Below are pictures of the Waltham Doll sent in by Dave Pierson:
