RAILROAD SIGNALS of the U.S.

LONG ISLAND RR
SIGNAL ASPECTS from November 13th, 1989



Rule 280A - Temporary Manual Block Signal
Rule 280 - Clear Block


Rule 281 - Clear
Rule 281A - Absolute-Clear


Rule 282 - Approach Medium
Rule 283 - Medium Clear


Rule 283A - Absolute-Medium-clear
Rule 284 - Approach-slow


Rule 285 - Approach
Rule 285A - Caution

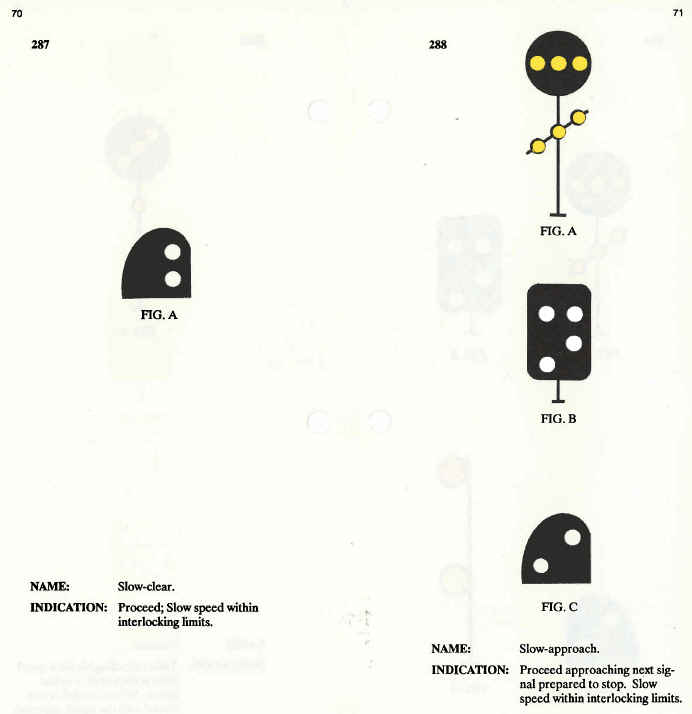

Rule 287 - Slow-clear
Rule 288 - Slow-approach


Rule 290 - Restricting
Rule 291 - Stop-and-proceed


Rule 292 - Stop-signal
Rule 293 - Block-limit

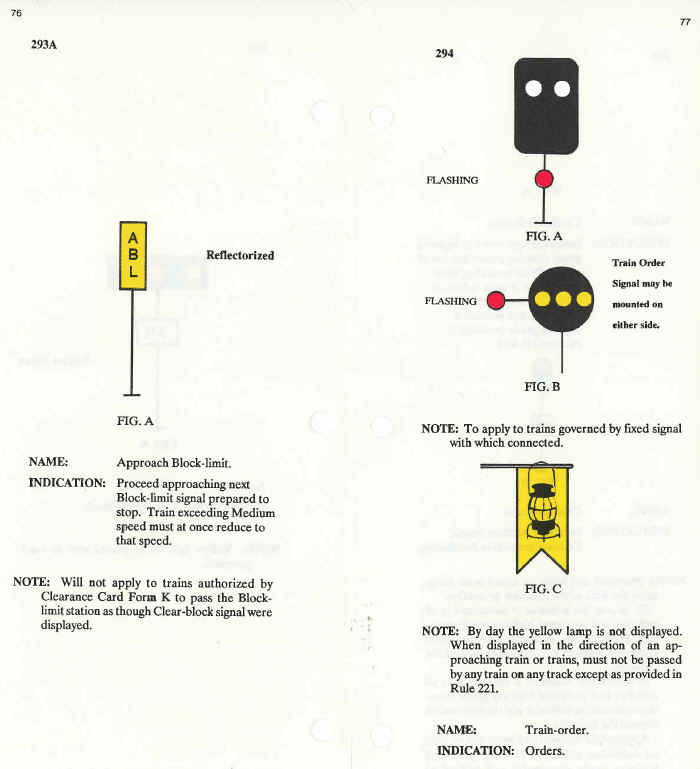

Rule 293 - Approach Block-limit
Rule 294 - Train-order

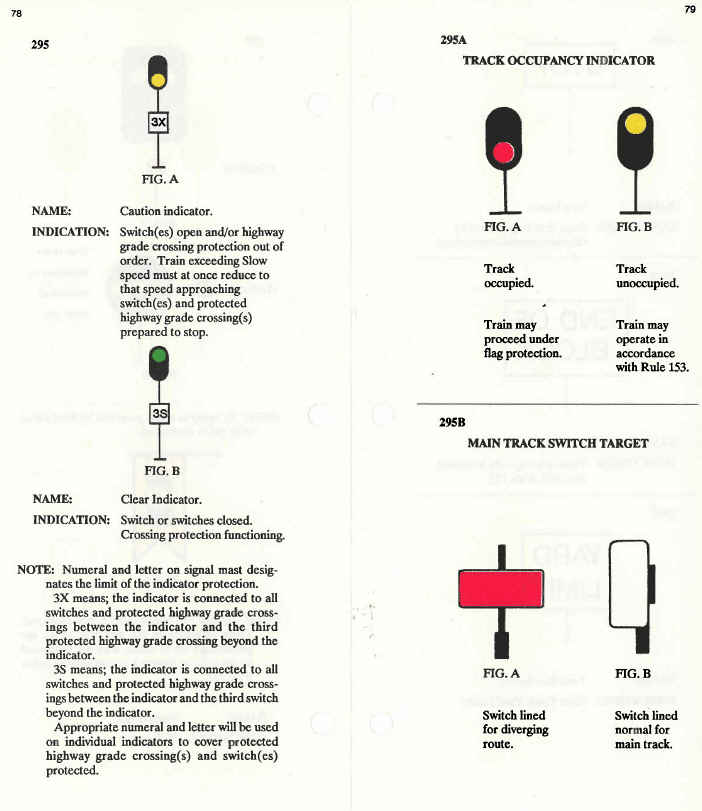

Rule 295 - Caution and Clear Indicator
Rule 295A - Track Occupancy Indicator
Rule 295B - Main Track Switch Target

Click here for the above pages in a PDF version, around 950kB in size.

I would like to thank David P. Maloln for taking the time to make these scans for me.

Click here for the above single-sheet reference chart in a PDF version.
