Railroad signs are every where we go.  Signs are about as varied as you can get, for every railroad seemed to have it's own idea about what a sign should look like.

If you are building a model pike, they add a bit of realism to the layout.  As you can see from the pictures here, you have great leeway in creating your own if you so choose, it's one place where there are no standards, unless you want to be prototypical.

A great deal of the pictures on this page come from the train show held every year in Gaithersburg MD... the first Sunday in November at the fairgrounds (it's mostly a paper and collectables event, but there are some signals and signs on display).  I've included multiple pictures of the same sign to illustrate that not every sign is collectable.

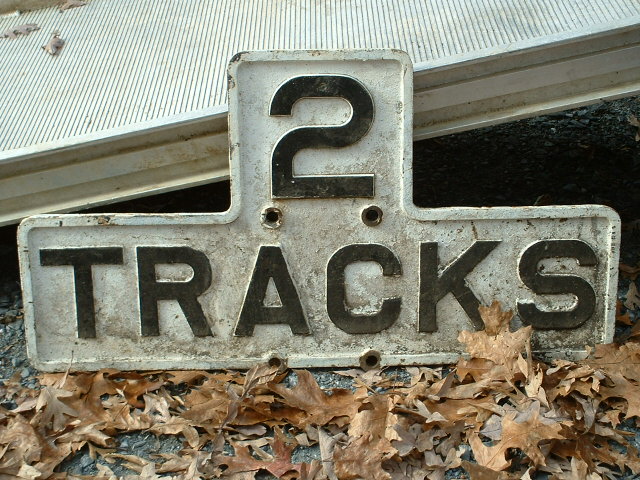

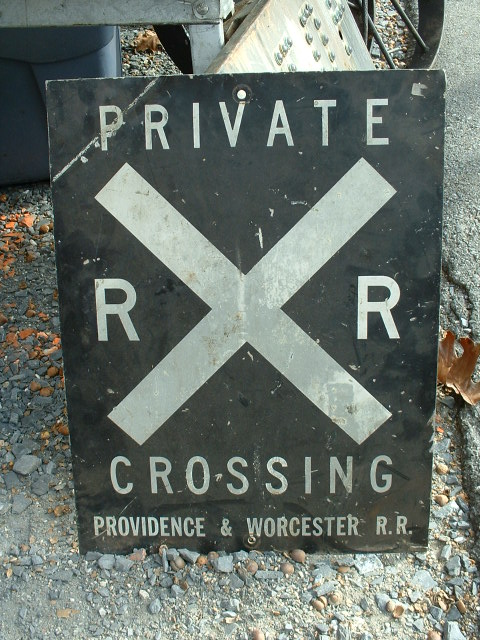

RR GRADE CROSSING SIGNS
for Vehicular Traffic

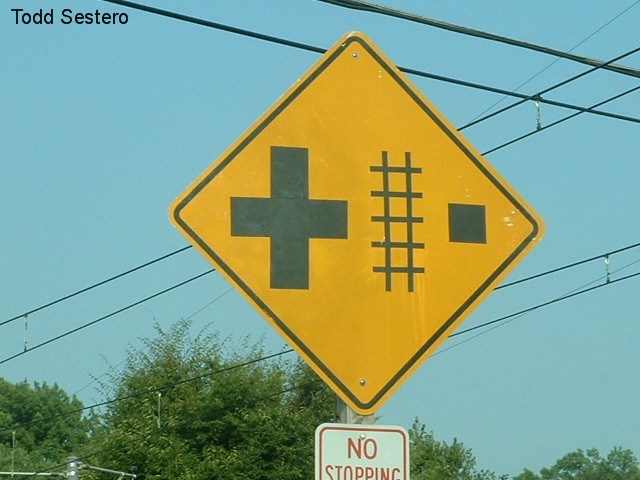

A couple of grade crossing signs in Lutherville MD protecting the Light Rail grade crossing with Seminary Ave.


Pictures taken Thurs 09/22/2005
The left picture is kind of interesting.....
The vertical line (street) on the sign is Railroad Ave, the horizontal Seminary Ave.,
In the upper right corner of the intersection, is the old Pennsy Lutherville station,
An article on it ran in the Baltimore Sun (09/18/2005)



This is a view of the station from Trackside
More pictures of stations around Baltimore can be found
HERE

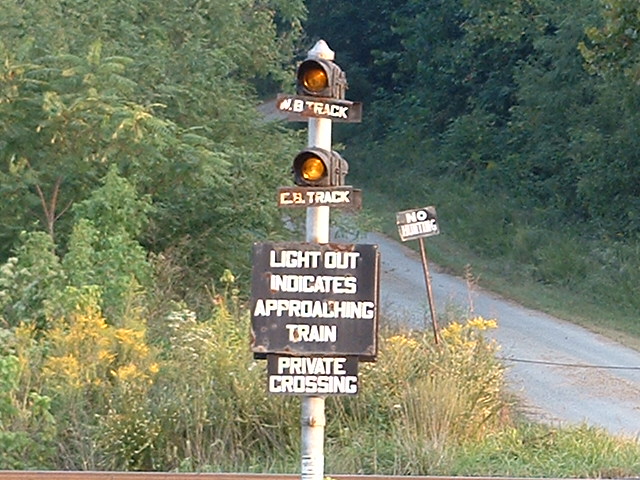

Unique crossing protection and signs on the old N&W south of Roanoke and Salem VA along US11
For a map of the area and where to find this gem: http://www.railroadsignals.us/virginia/roanoke/salemchase.htm

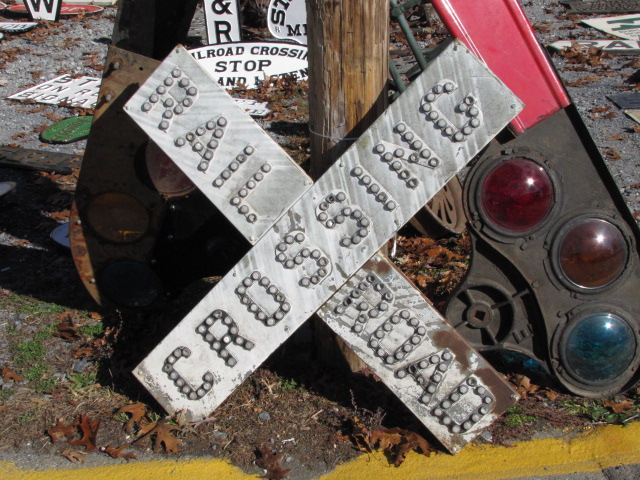

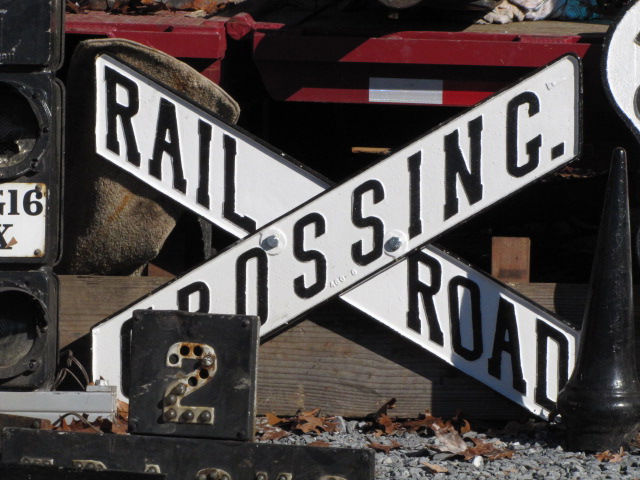

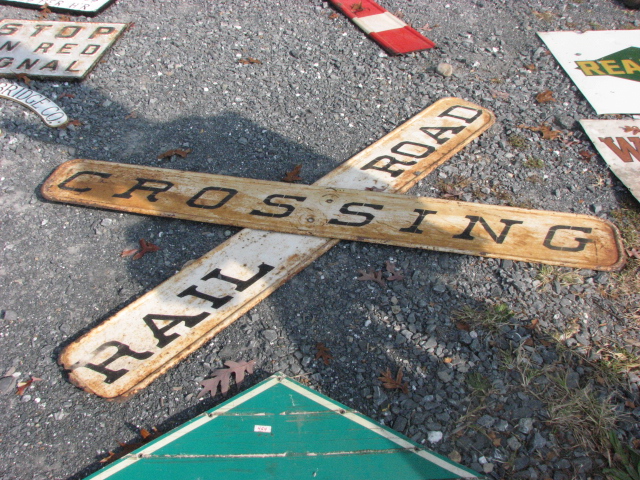

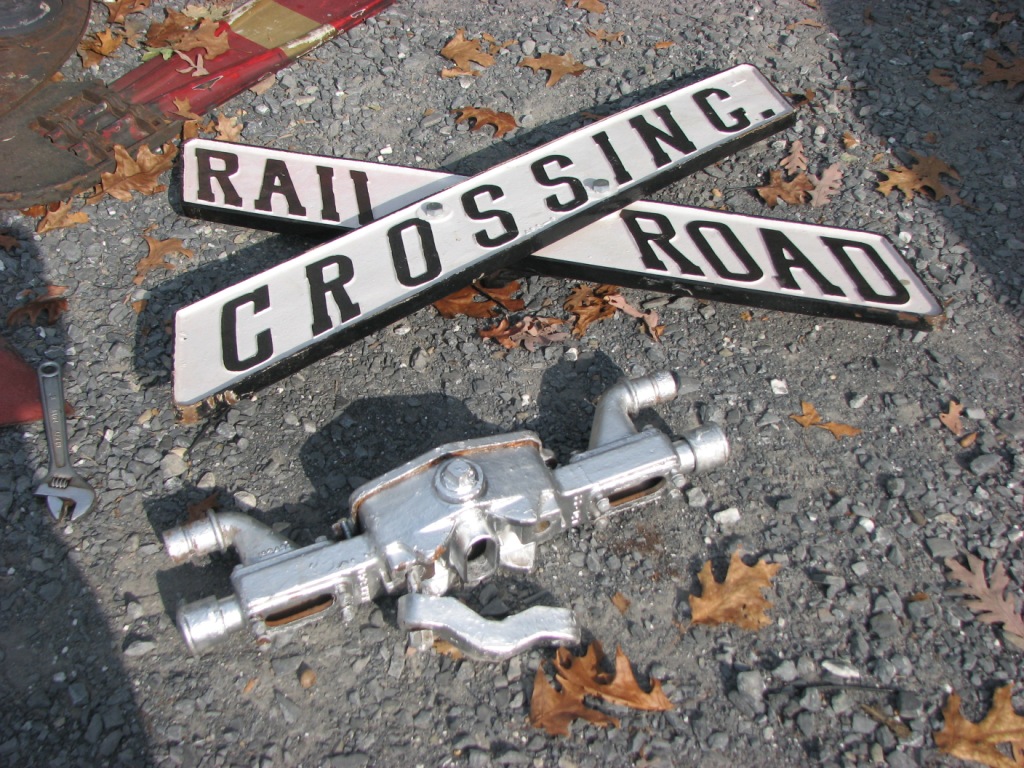

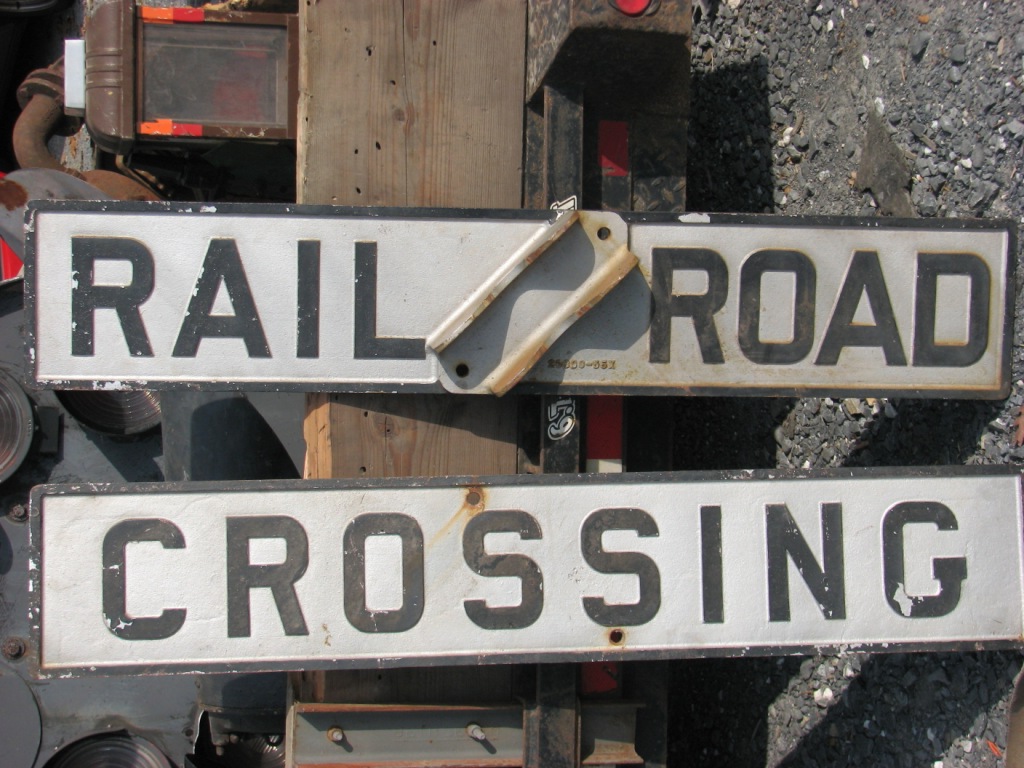

CROSSBUCKS




RRX ROUND SIGNS

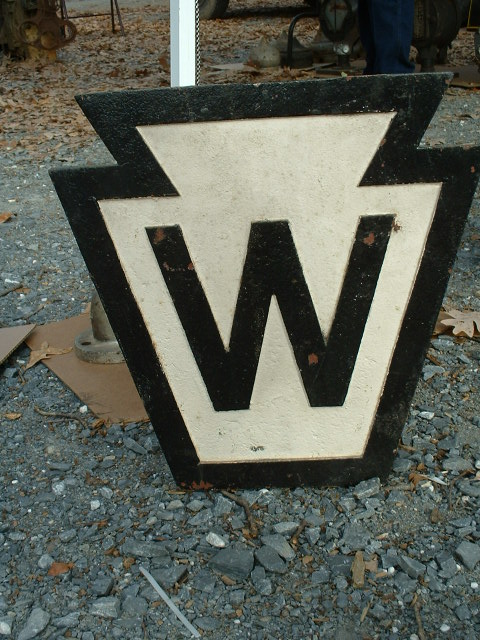

WHISTLE and RING POSTS

    Whistle and speed limit sign in Clare MI  07/2009

  Whistle sign at the crossing in Doswell VA

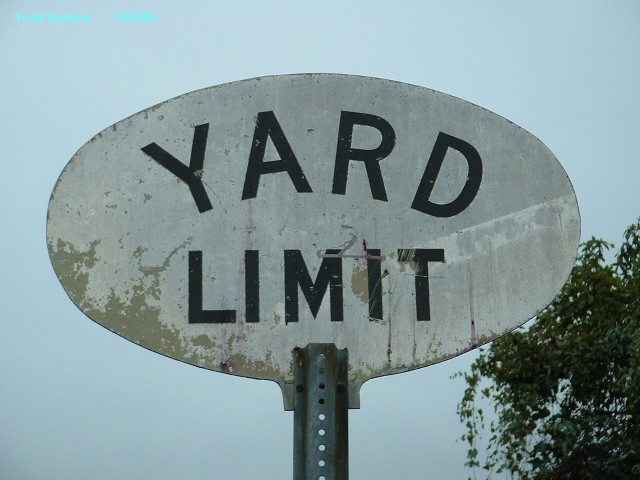

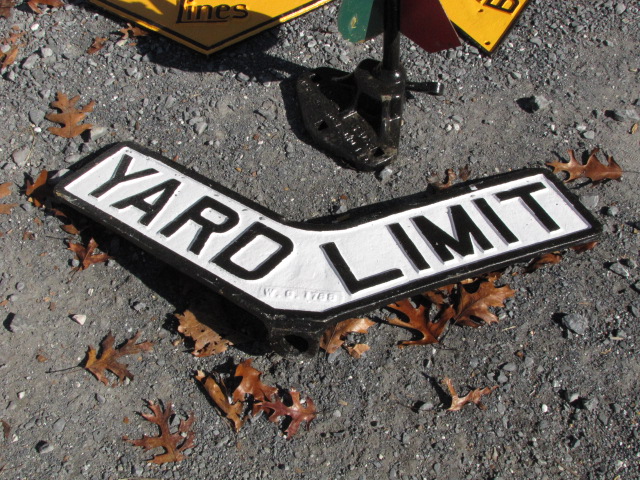

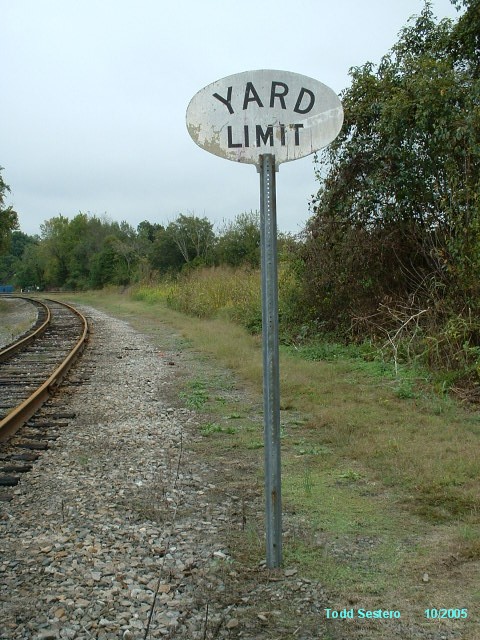

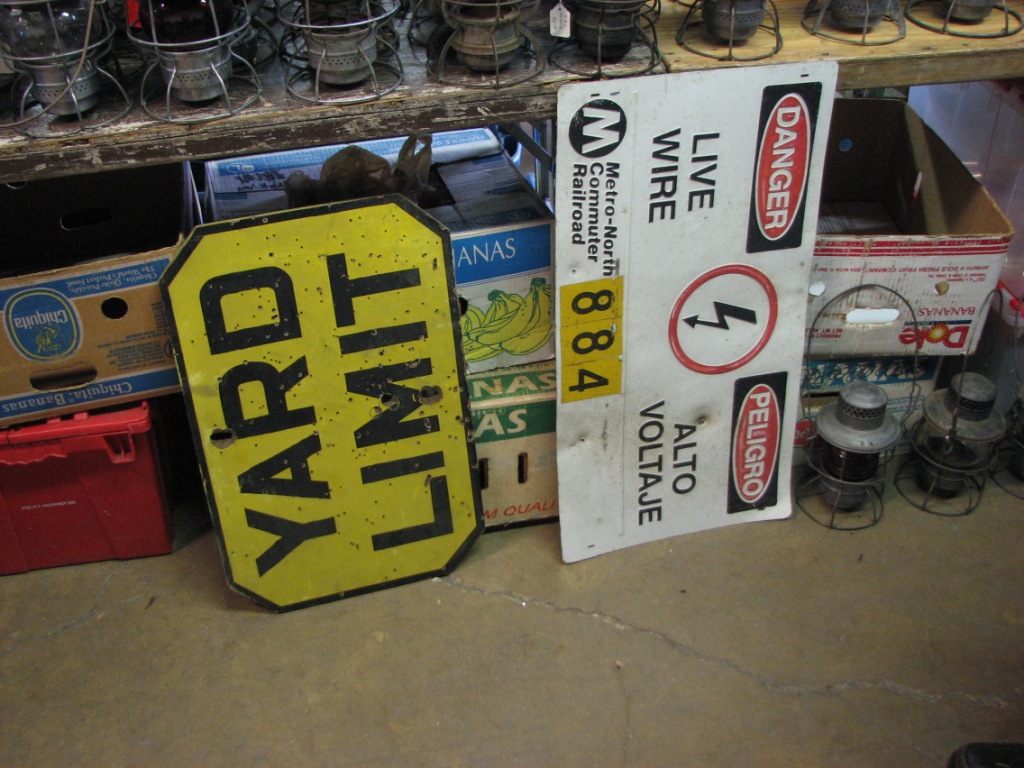

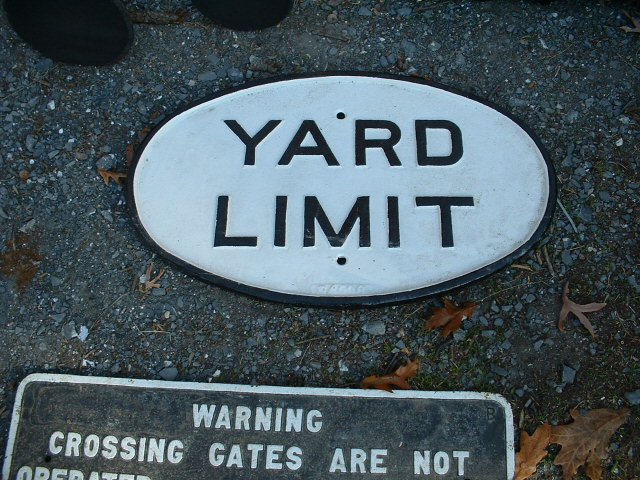

YARD LIMITS

  Yard limit sign across the road from Delrey Tower in Detroit MI

    A yard limit sign at the NC Transportation Museum in Spencer NC

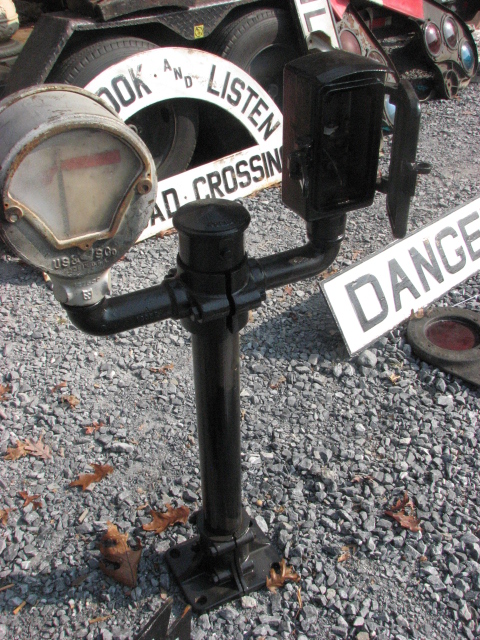

SWITCH TARGETS and DERAIL BANNERS

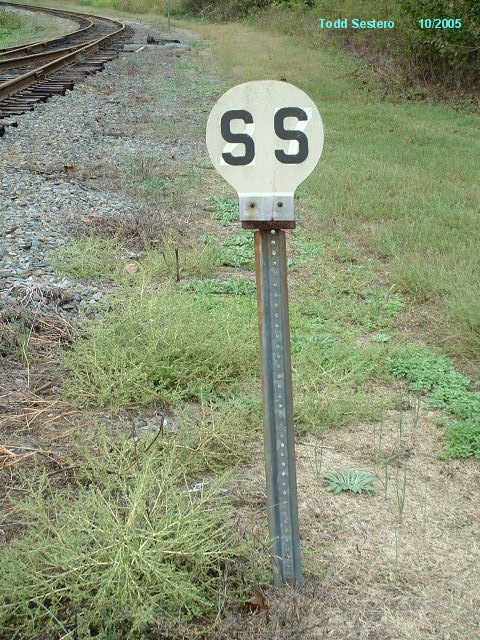

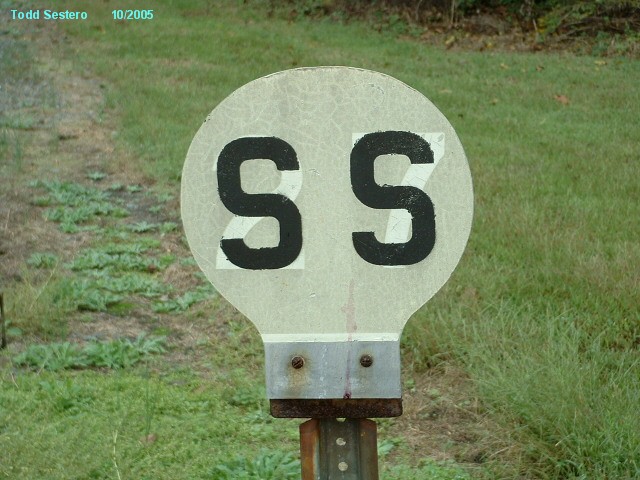

SPRING SWITCH SIGNS


You can find this guy at the NC Transportation Museum in Spencer NC - Great museum and it's convenient to I85.

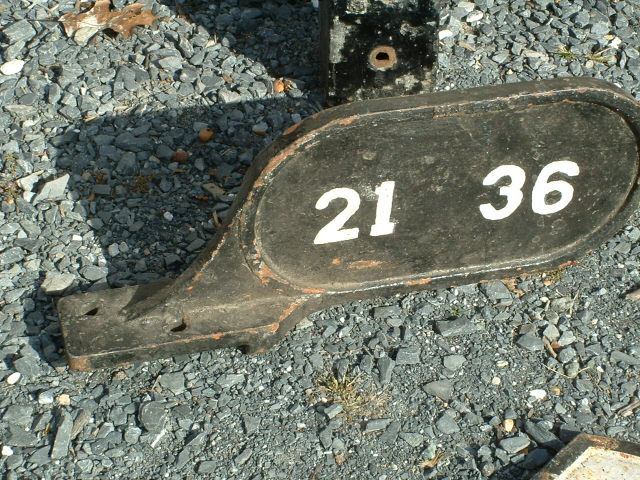

SPEED LIMIT SIGNS

       082805

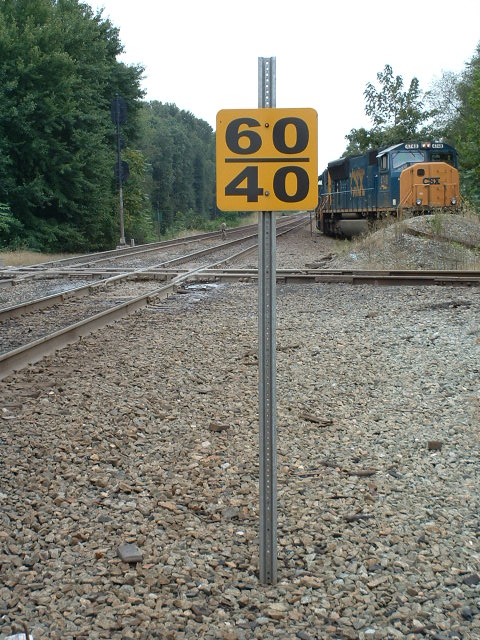

A couple of speed limit signs on the CSX in Relay (S. Denis) MD.....
A southwestern suburb of Baltimore MD in Baltimore County


The upper speed is the speed limit for passenger trains
The lower speed limit is for freights
The signs are 18" square, on 1/8" thick aluminum
The third picture is of the station the signs are next to, which I have heard is going to be moved about a half mile south (or so) so the MARC passenger platforms are not next to the Old Main Line.

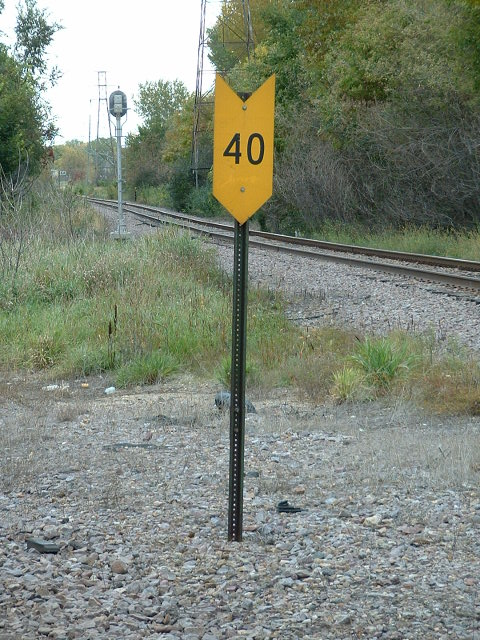

     Speed limit sign in Albert Lea MN on the (I think) DM&E / IC&E - 2006


  Speed limit sign in Doswell Virginia at the diamond


SPEED RESTRICTION SIGNS

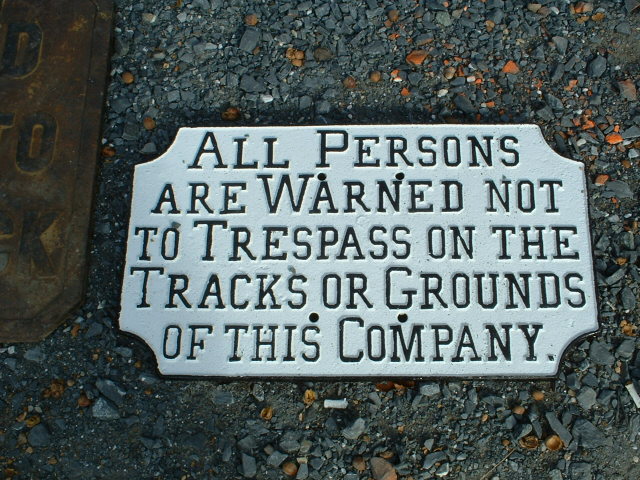

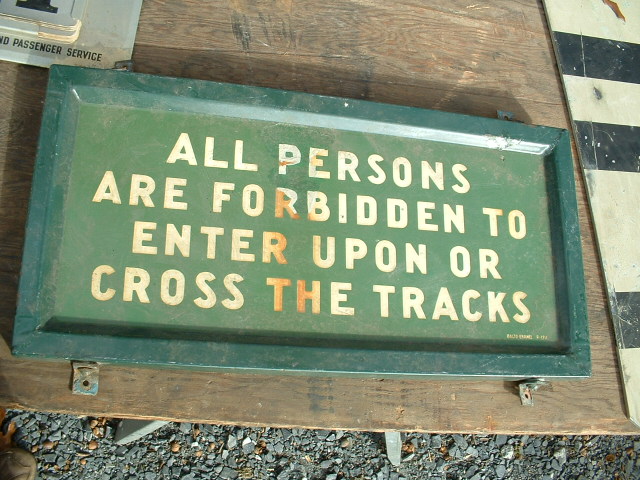

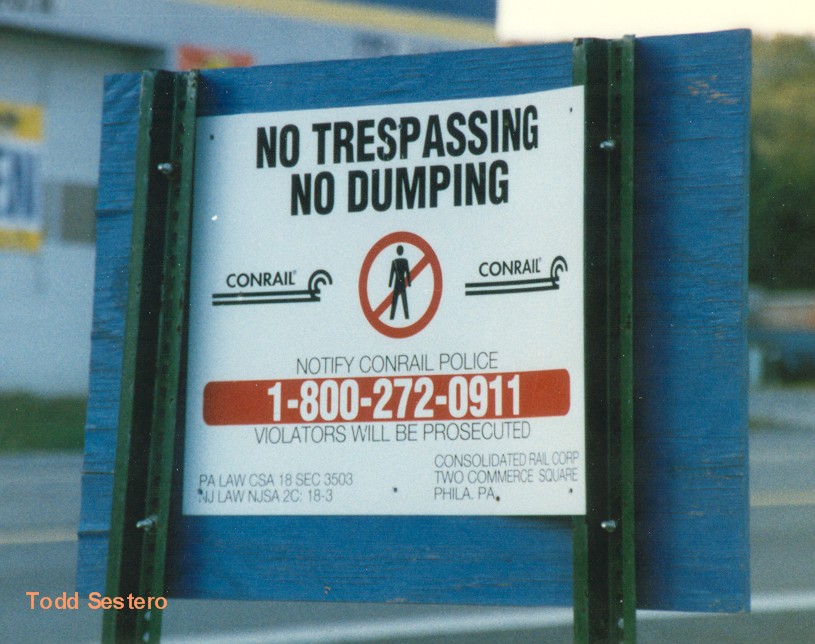

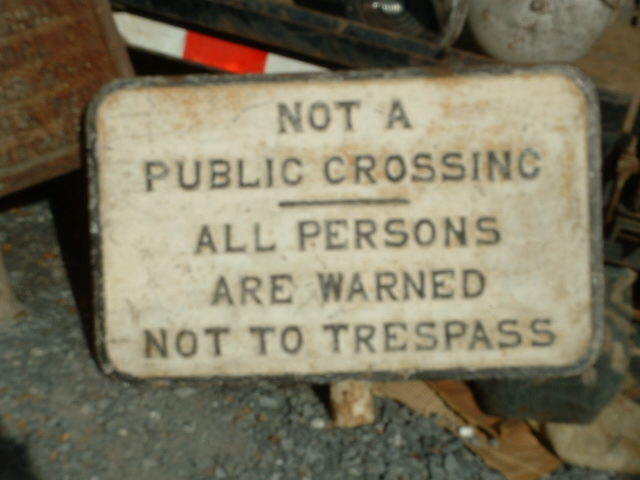

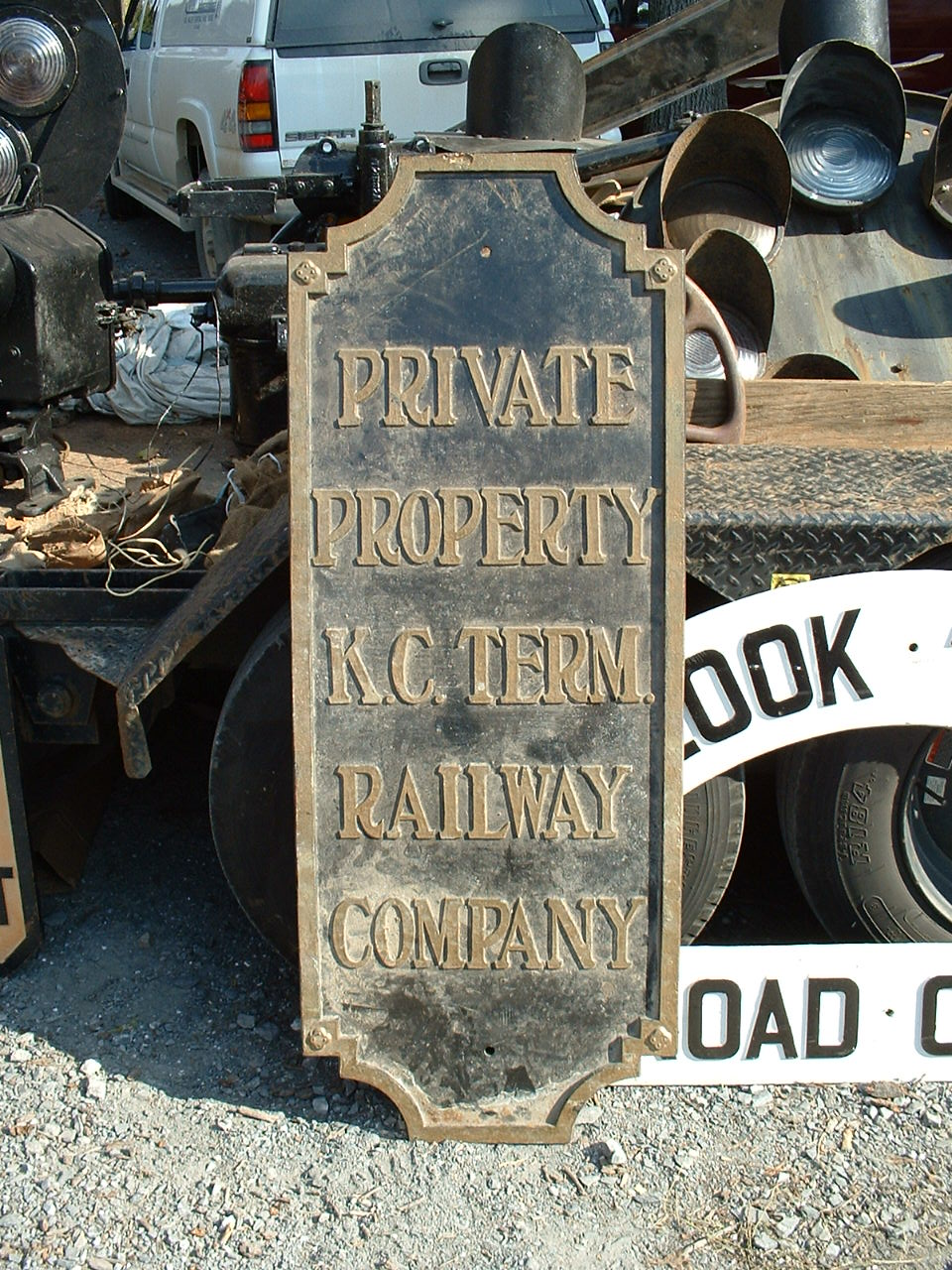

NO TRESPASSING

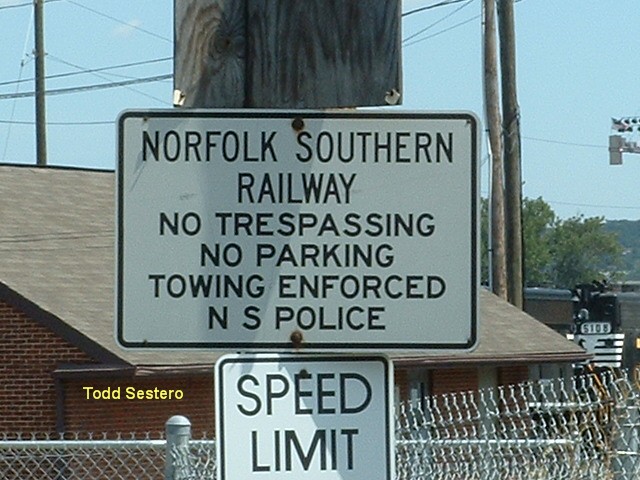

  A sign at the entrance to the parking lot at the NS Manassas yard

  A sign from the west end of the NS Manassas VA yard

  A no trespassing sign in Harrisburg PA at Enola Yard

    A sign from (probably) the NYC subway system, made in Baltimore MD




FLANGER


CLEARANCE


TELL TALES


ROCK / MUD SLIDE


DEFECT DETECTOR, HOT BOX, ETC

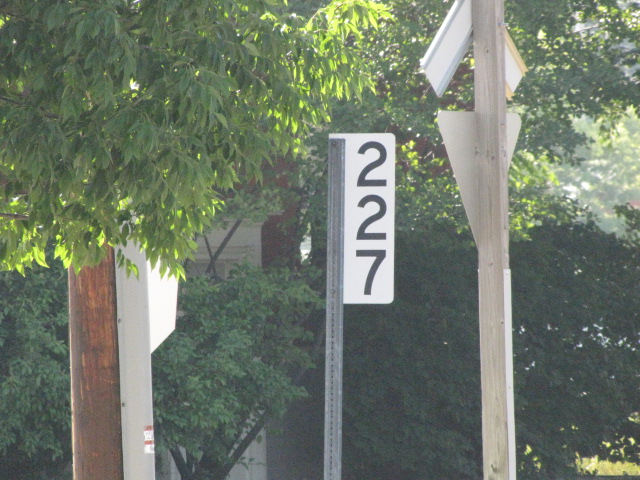

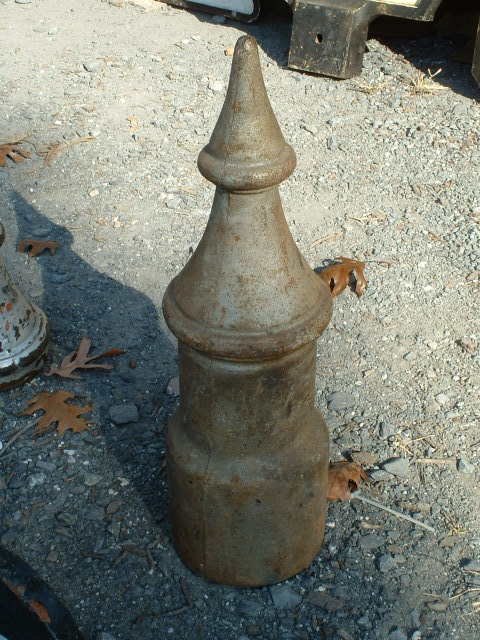

MILEPOSTS

   82805
A comparatively new, plain aluminum milepost near Thomas Viaduct on the main line to DC
Located in Relay (St. Denis) MD, a southwestern suburb of Baltimore MD in Baltimore County


    082805
The same style milepost mounted to an old B&O concrete milepost at the split between the mainline and the old mainline,
I was told the difference in the two mileages (between this MP and the one above) stems from the old days when the two routes took different paths through the city, resulting in a different mileage at this point,
The picture on the left is the mainline going to DC, with the Thomas Viaduct just barely to the left, and a monument to the original builders of the B&O railroad,
The picture to the right shows the split in the routes.



Now some classic stuff....

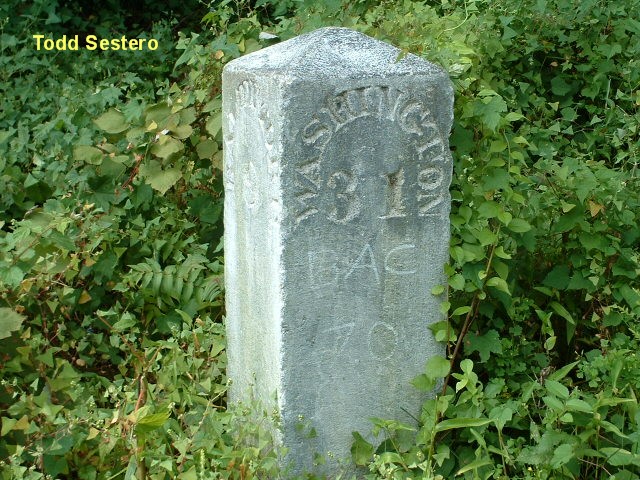

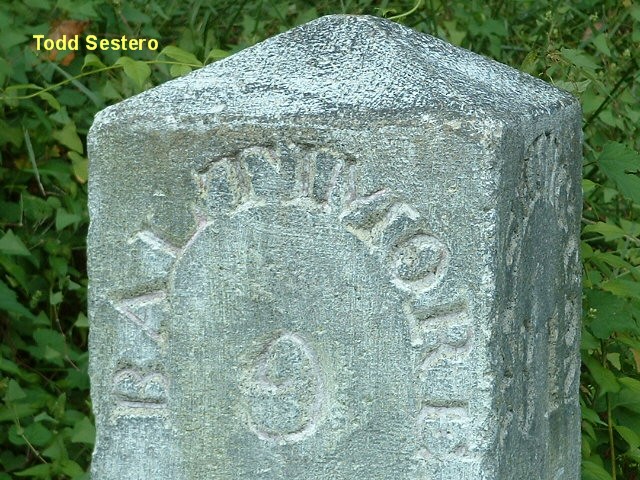

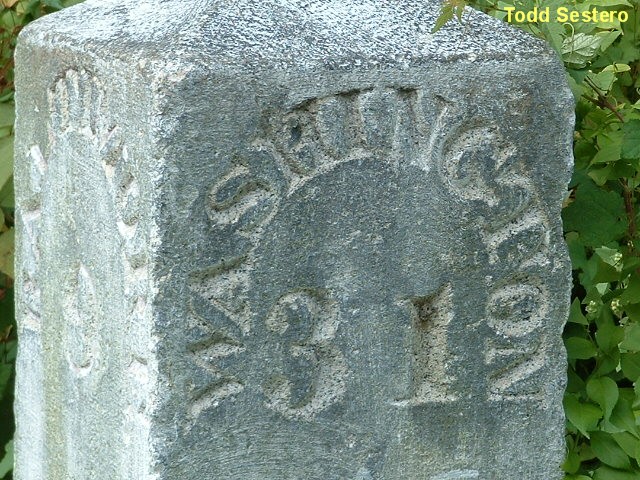

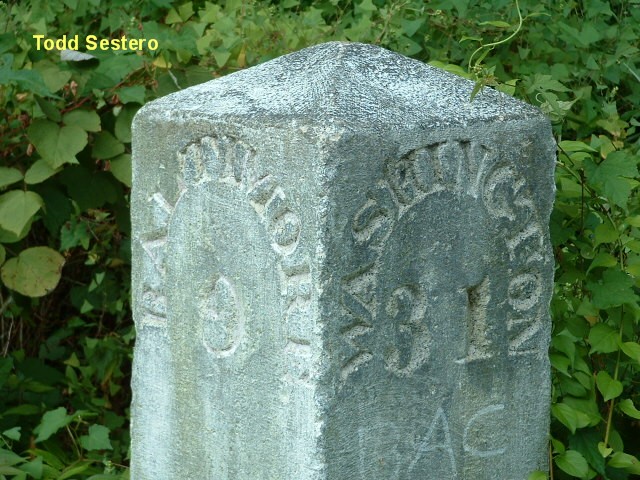

This stone milepost stands next to the "7" milepost above,
Great stuff!
The one side says 9 miles to Baltimore, the other says 31 miles to Washington DC,
There is another one on the other side of the three tracks.

Unfortunately, these guys disappeared in 2007, and I'm willing to bet they are not down at the B&O Transportation Museum...


  Milepost sign in Cadillac MI.

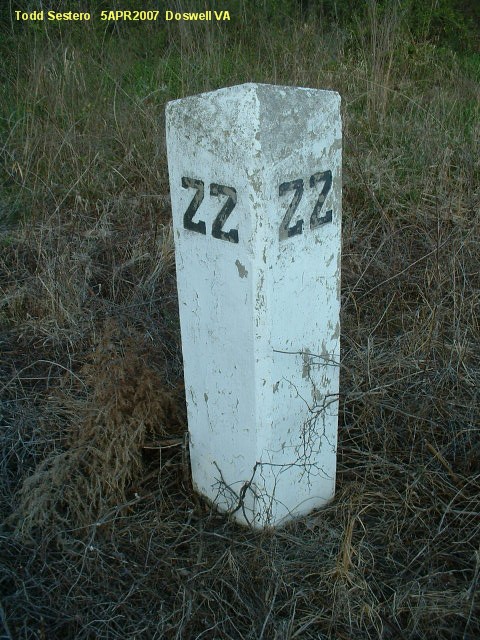

  For more pictures of this milepost, check out my Doswell page: http://www.railroadsignals.us/diamonds/doswell/index.htm


TRAIN ORDER

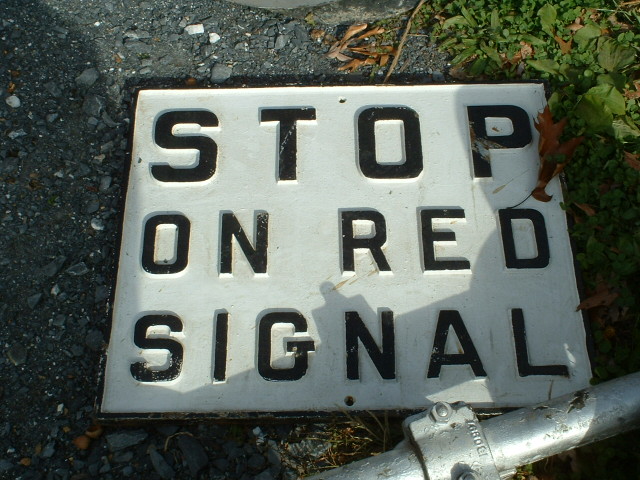

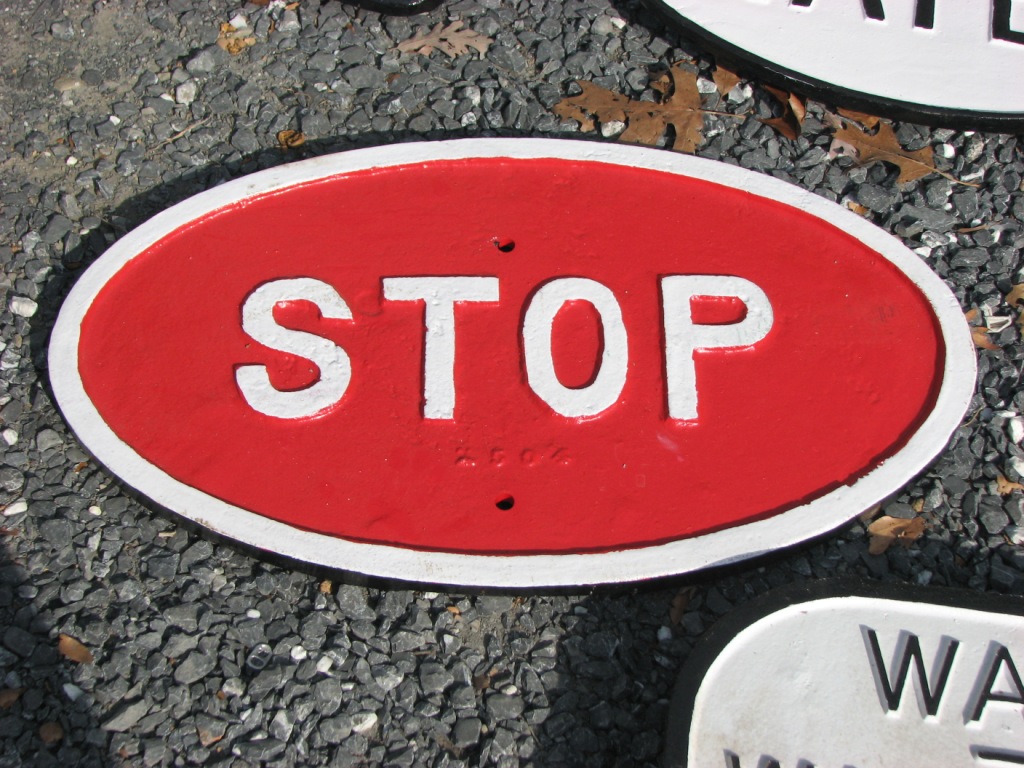

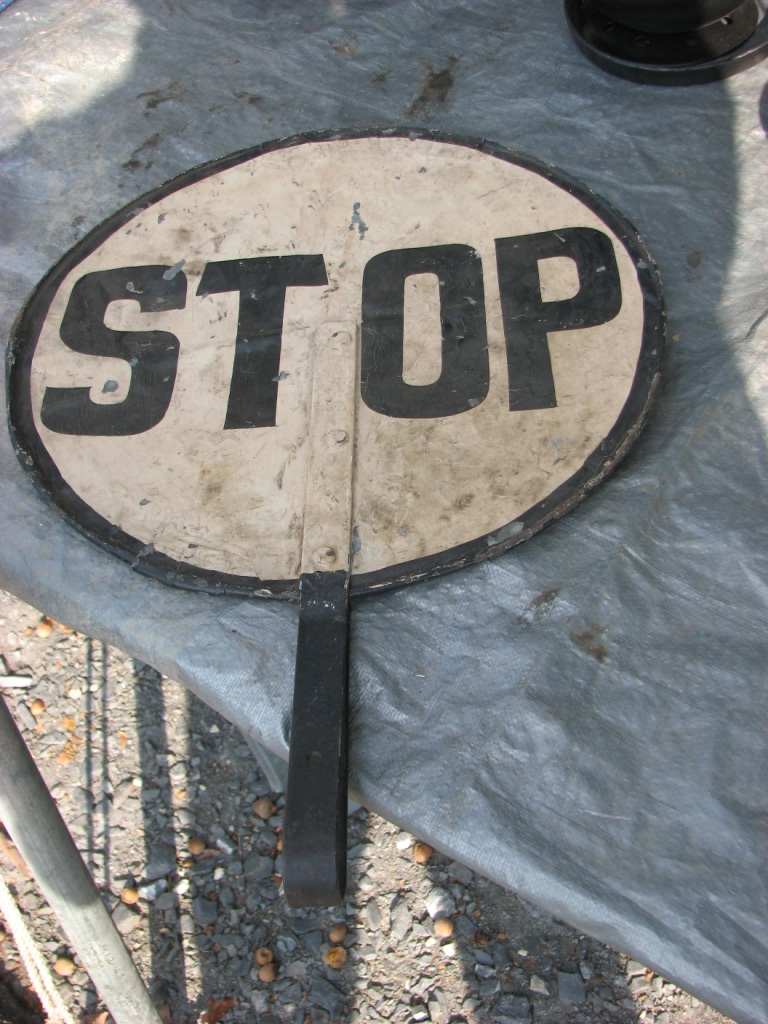

STOP SIGNS

            082805

The stop signs above were at Relay (St. Denis) MD while CSX was in the process of installing a new signal bridge, about 300 ft down the tracks (it went live in early 2008).... They needed these signs to get the trains to stop before proceeding thru the area.

The Yellow sign with an orange stripe is an "approach" sign for the stop signs, and they are placed about a quarter of a mile in advance of the stop signs.

Both signs are temporary in nature, and are either laid down or removed when not needed.... As in after regular work hours for the construction crews.

The right picture shows the approximate placement next to the St. Denis station when they were being used.

As of 2005, it was rumored that this station would be moved about a half mile or so to the south to get it away from the heavy traffic on the old main line (which is the track to the far left in the first and last pictures), but as of mid 2008, MARC has supposedly given in to users of this stop and plans on keeping the station here.




YARD SIGNS

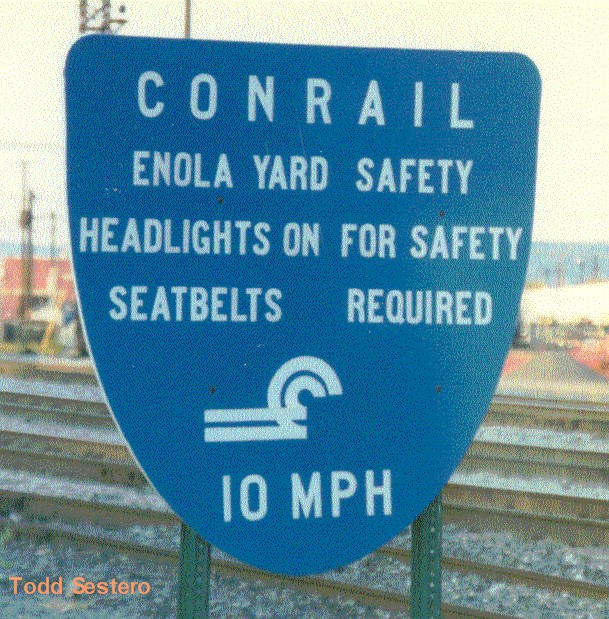

A couple of signs at Enola Yard in Harrisburg PA

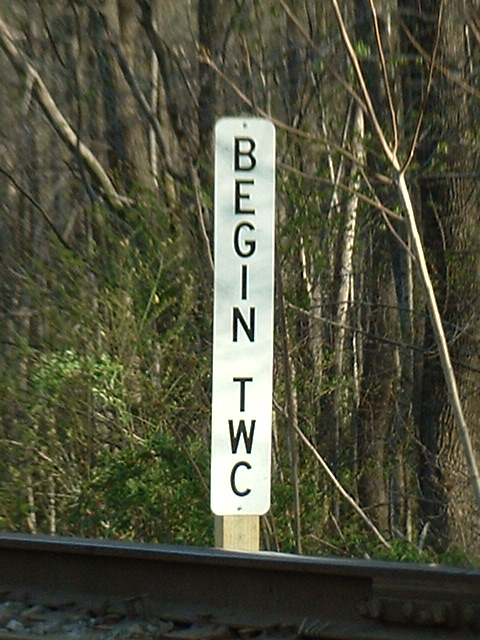

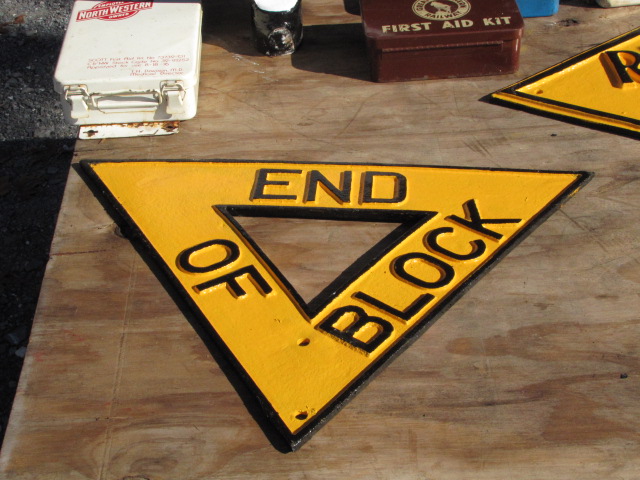

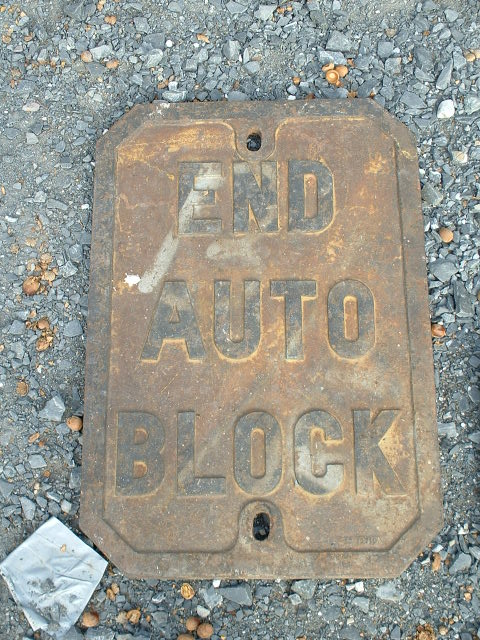

END / START BLOCK SIGNS

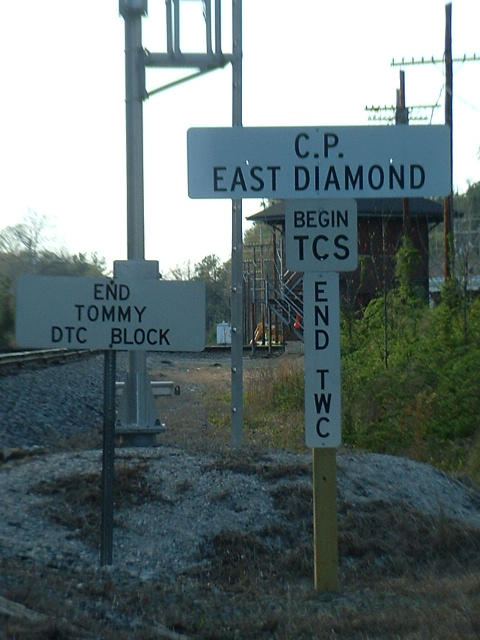

A few signs at the diamond in Doswell VA, a very good railfan spot..... for more cool stuff click here

     Same sign, three years in a row....

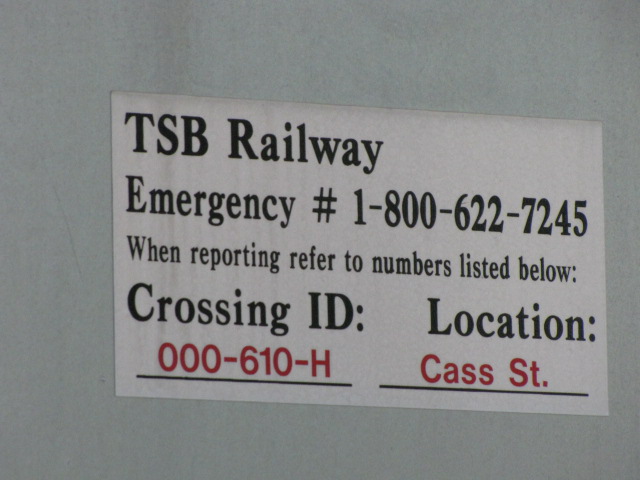

ID TAGS ON GRADE CROSSING EQUIPMENT

  Doswell VA

  Sign on Equipment cabinet in Cadillac MI

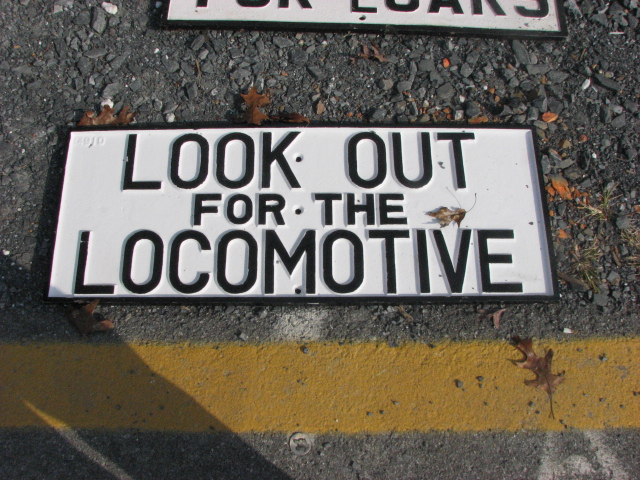

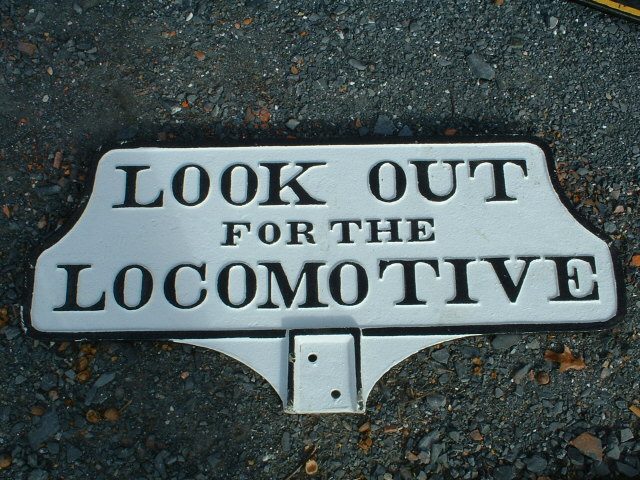

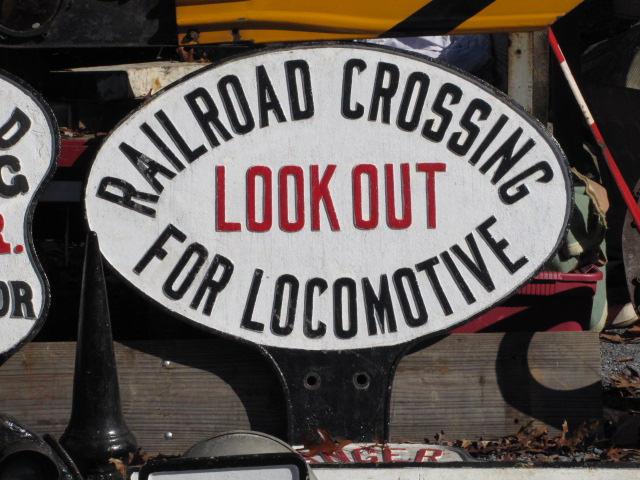

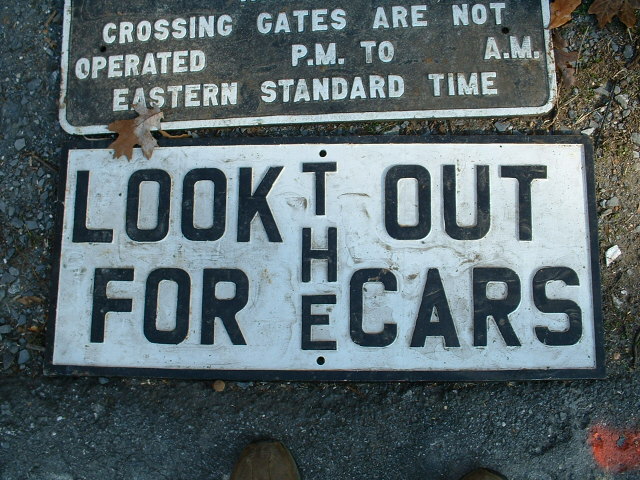

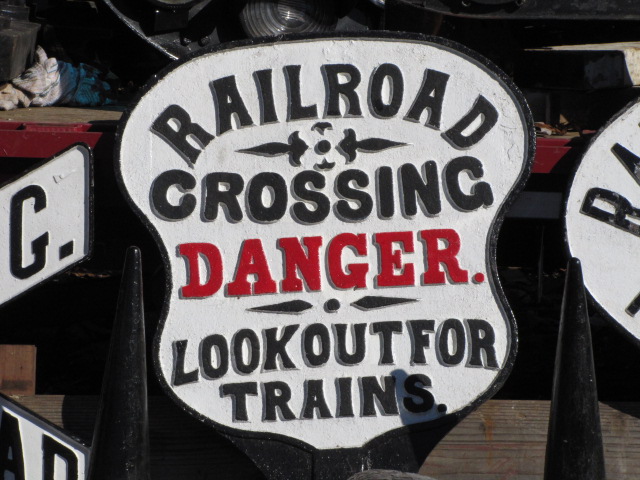

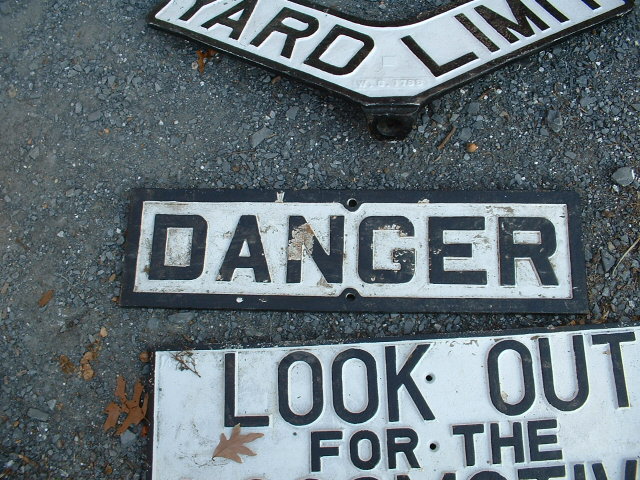

LOOK OUT FOR ......

        Four years and no sale!

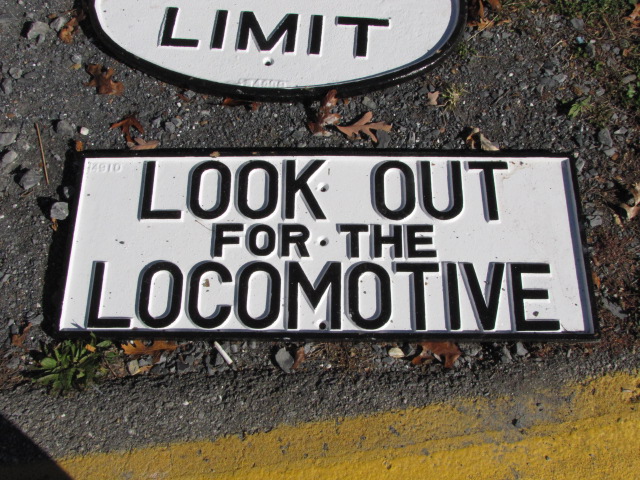

Looks like no-one wants the "look out for the loco or car" signs, they have been to a number of shows.....

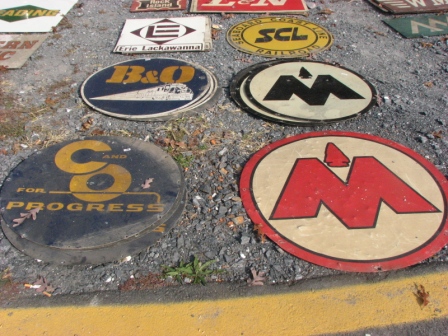

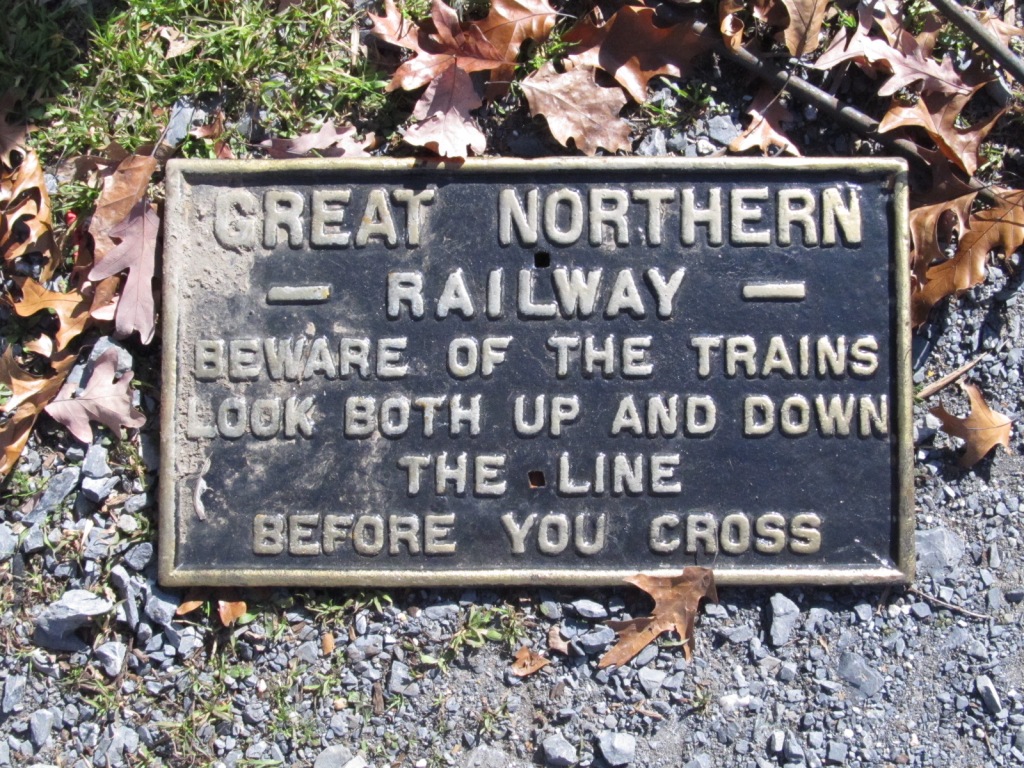

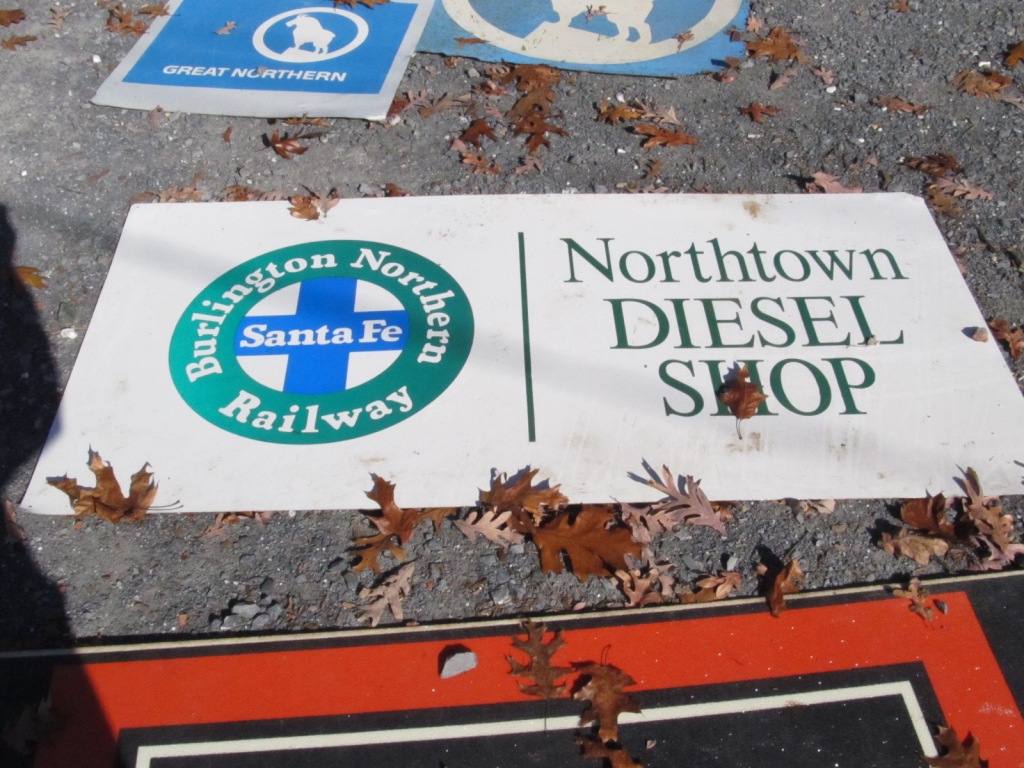

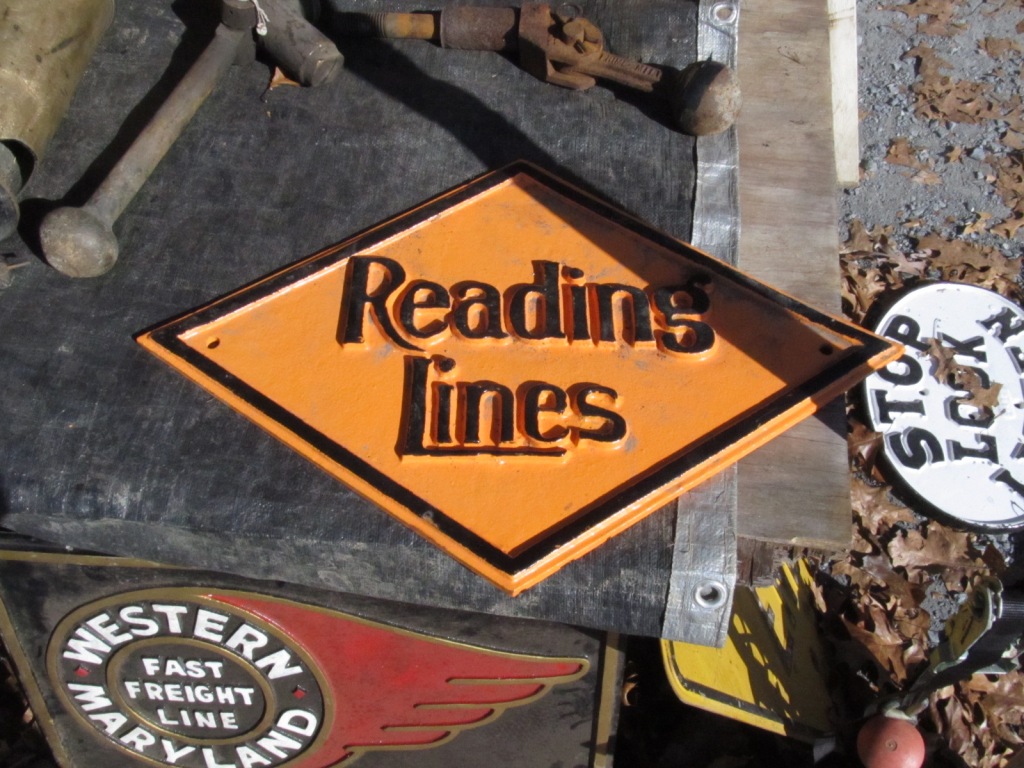

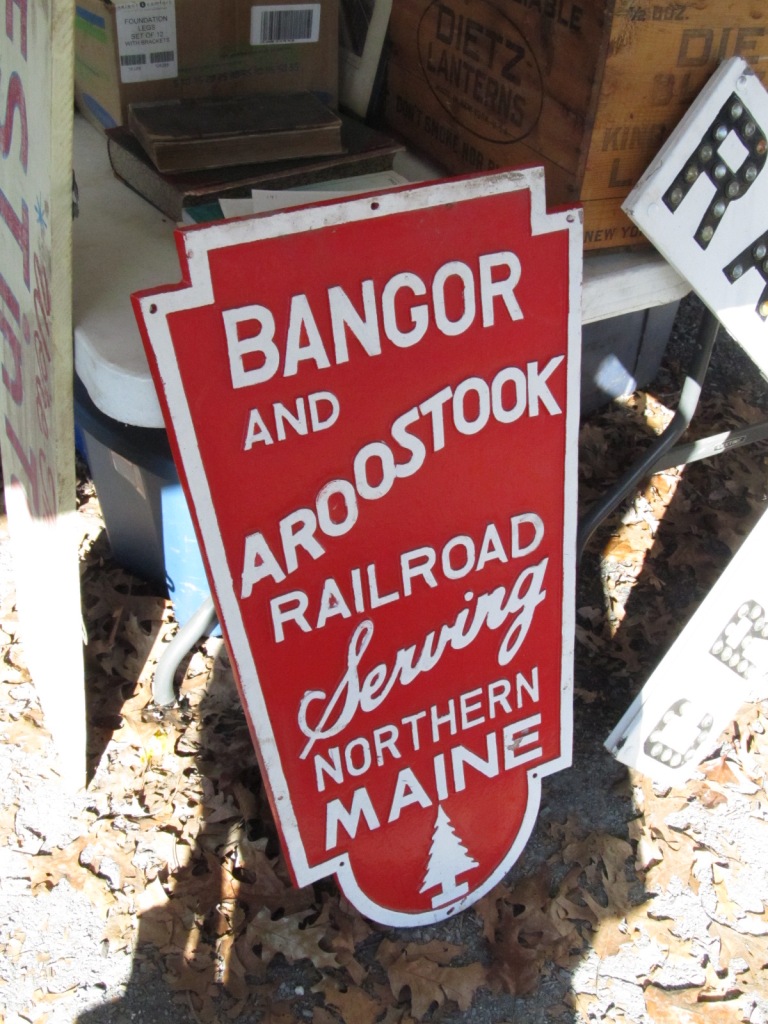

with a RAILROAD NAME

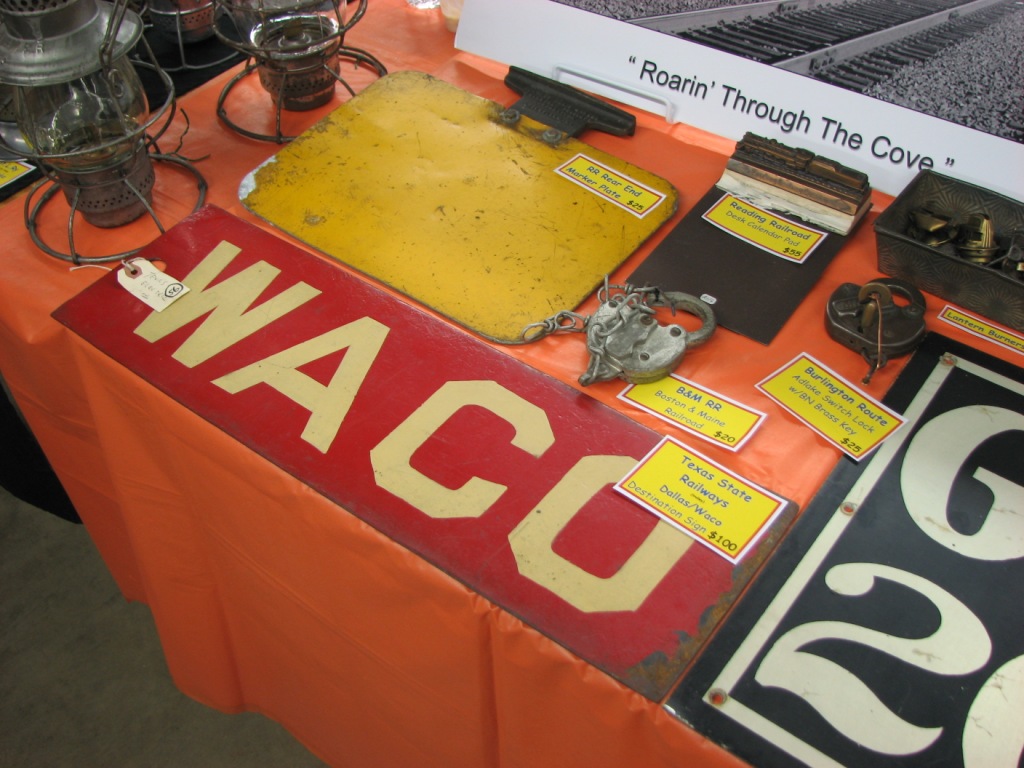

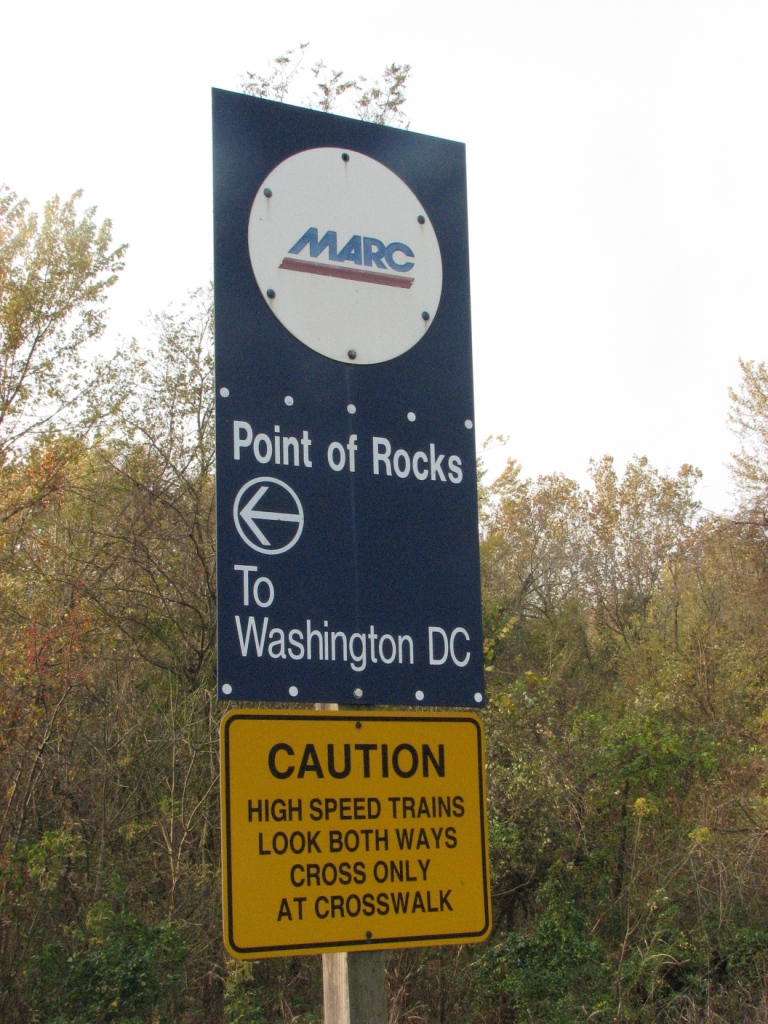

STATION SIGNS

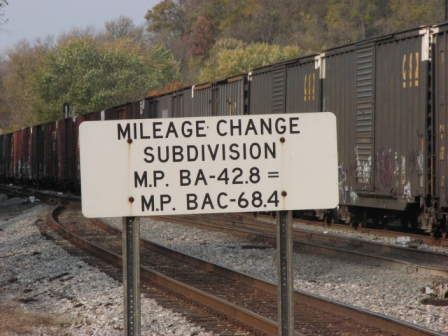

SUBDIVISION CHANGE

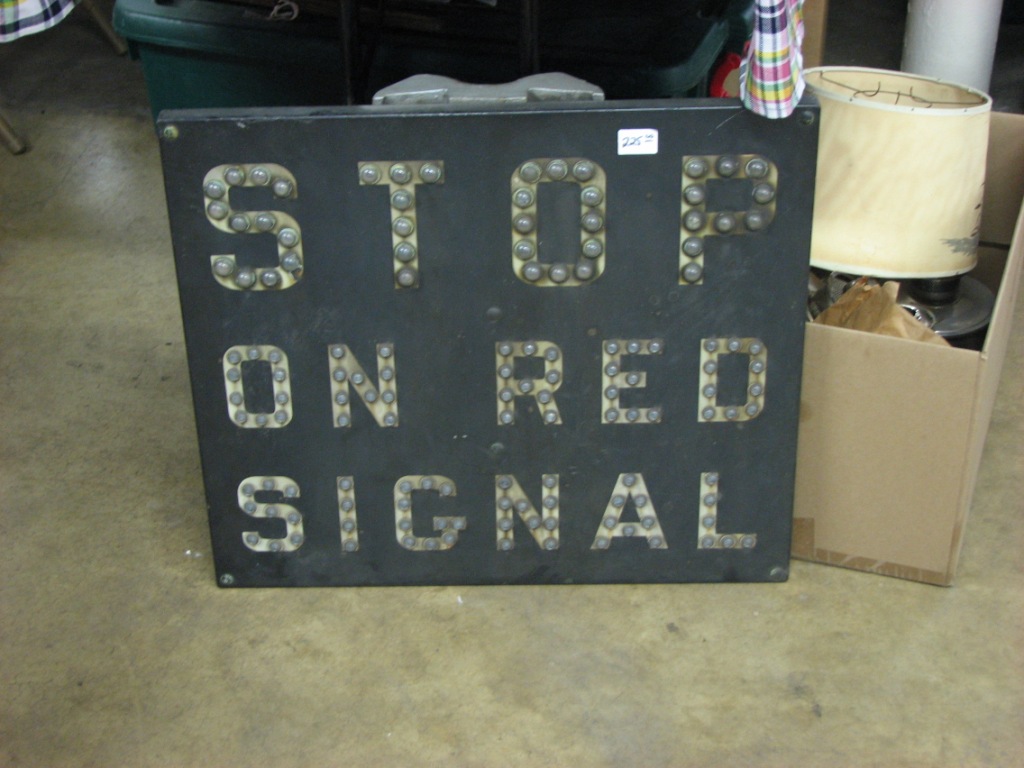

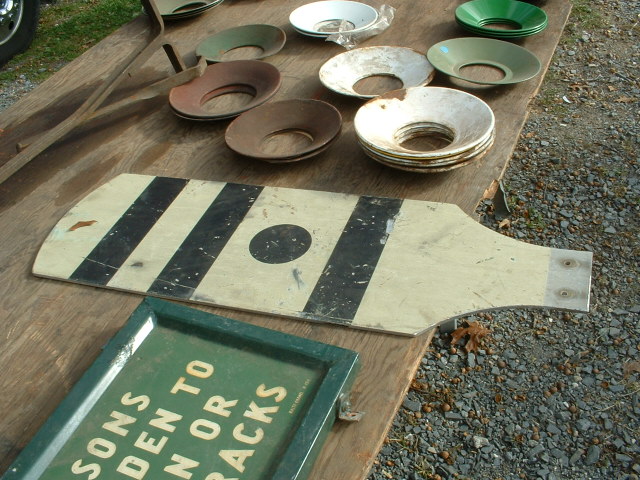

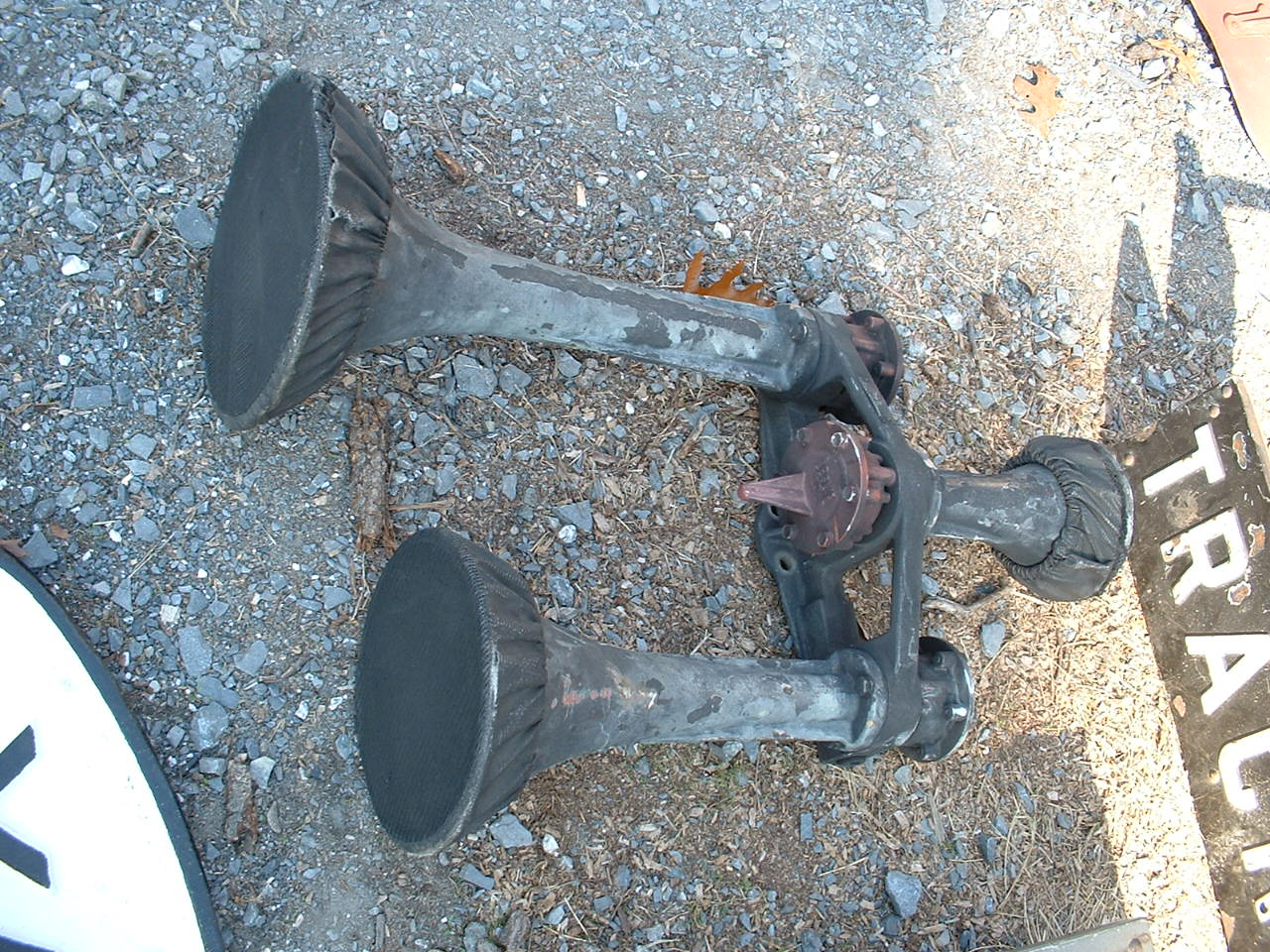

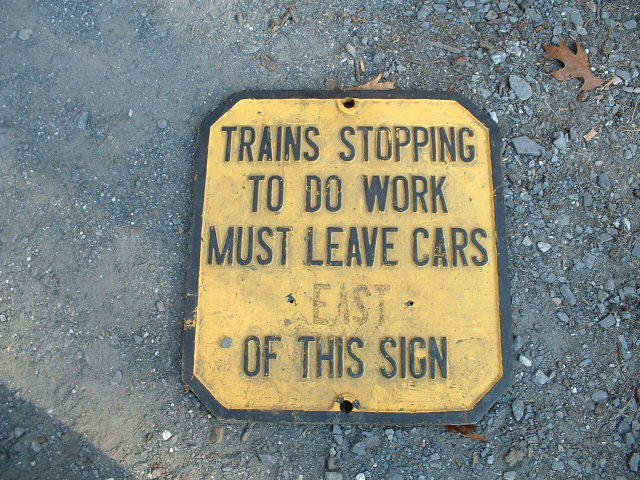

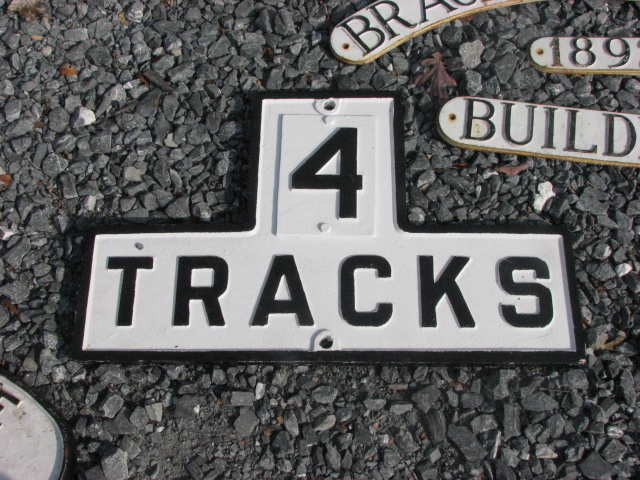

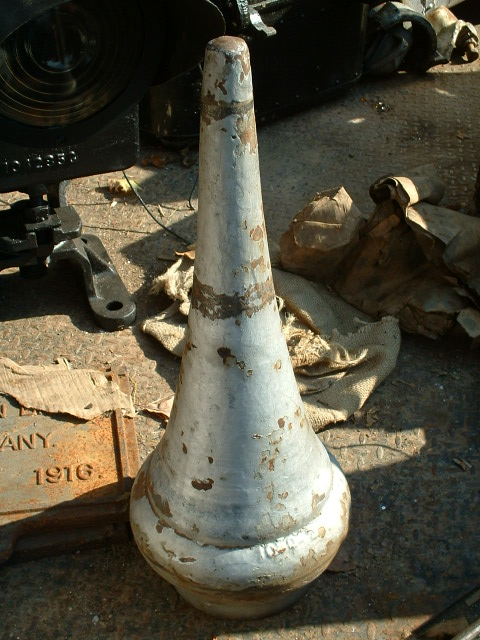

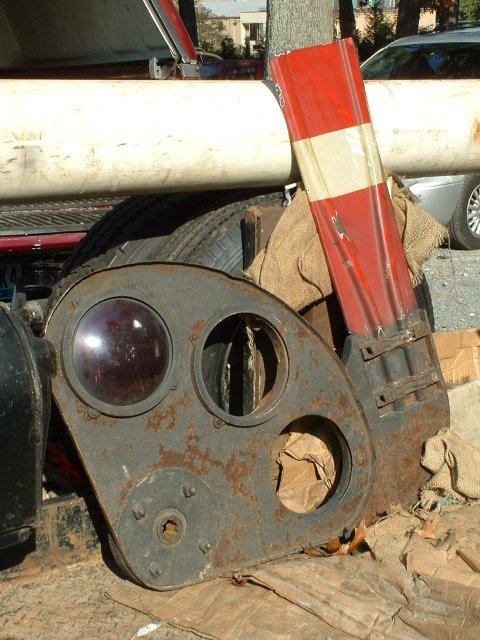

MISC SIGNS

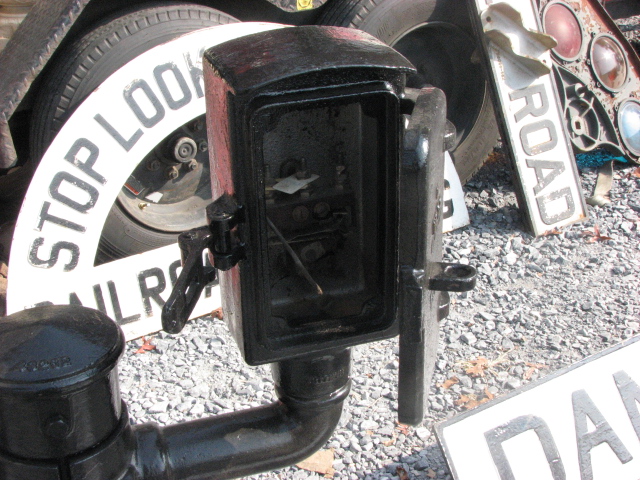

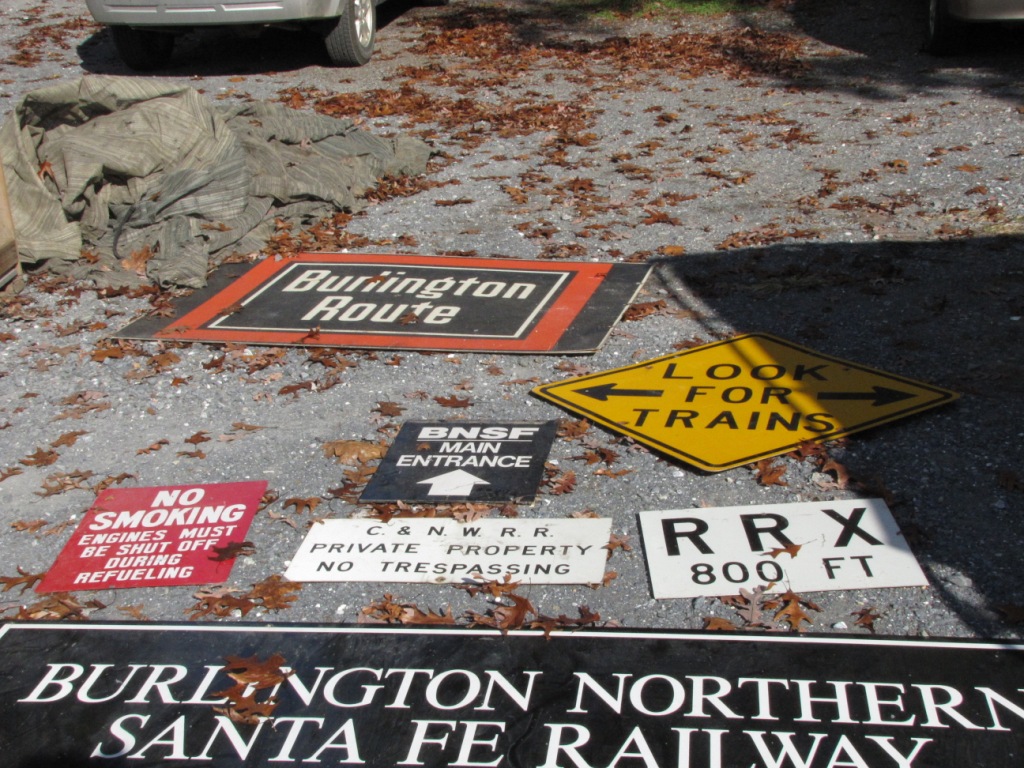

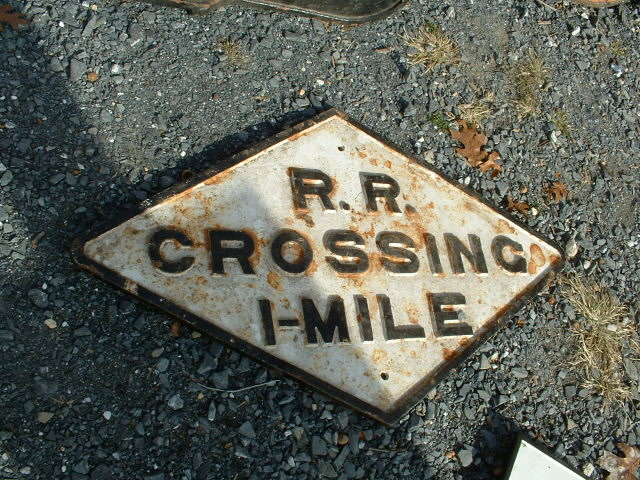

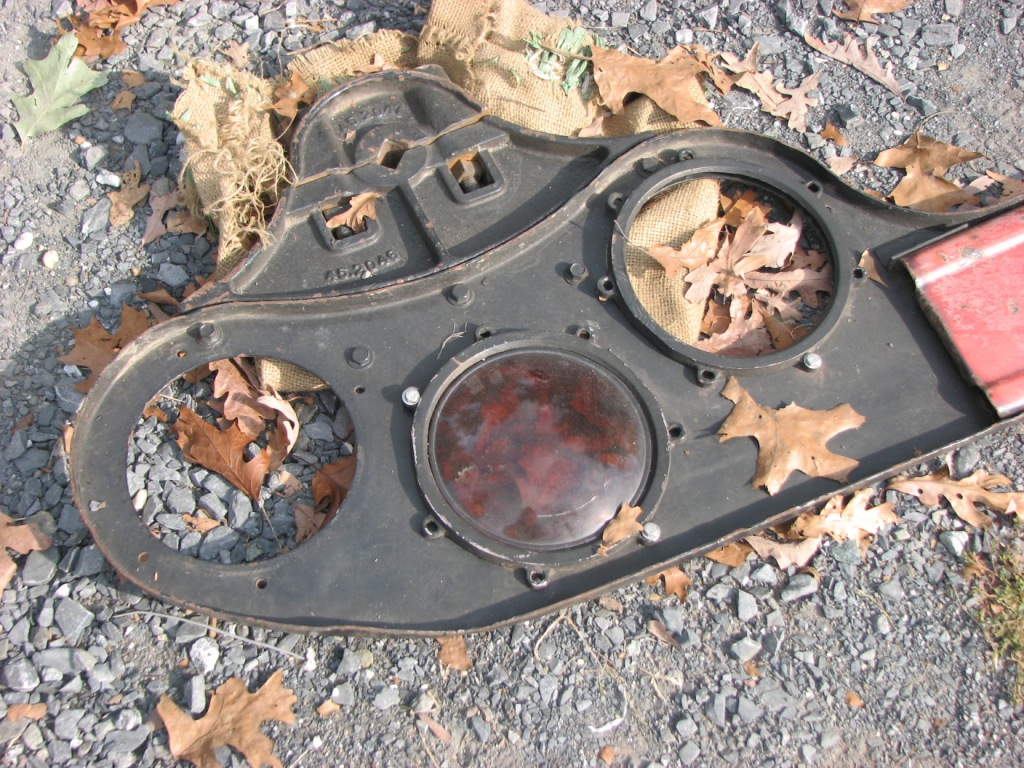

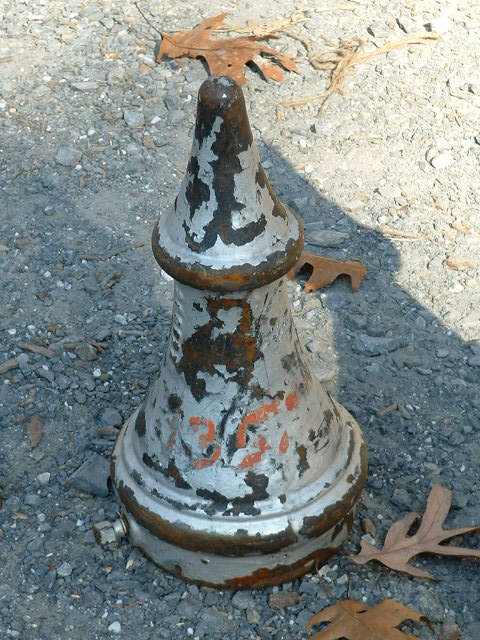

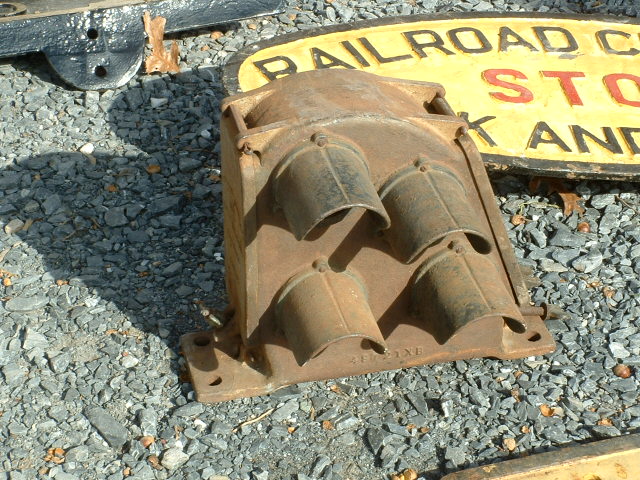

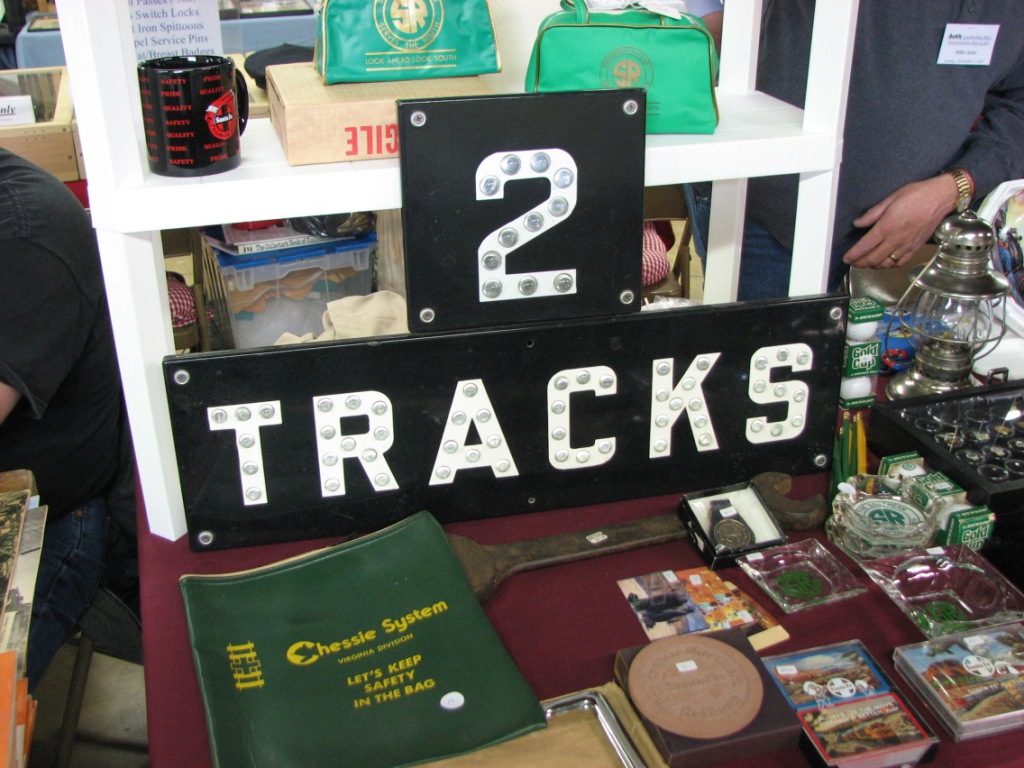

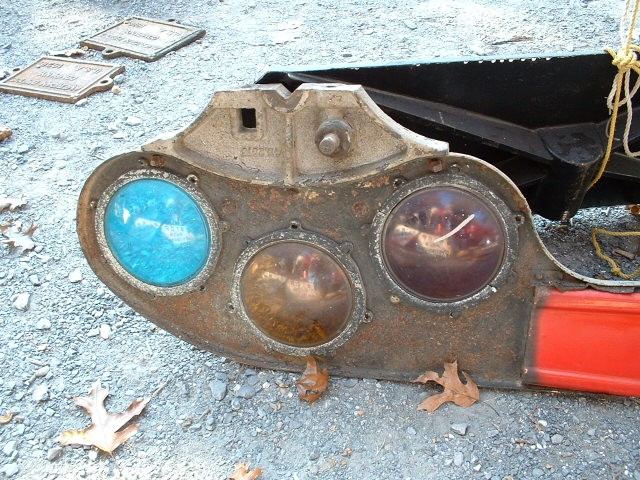

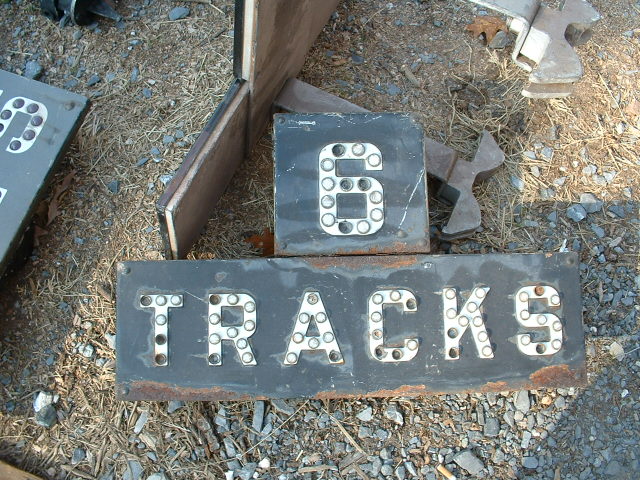

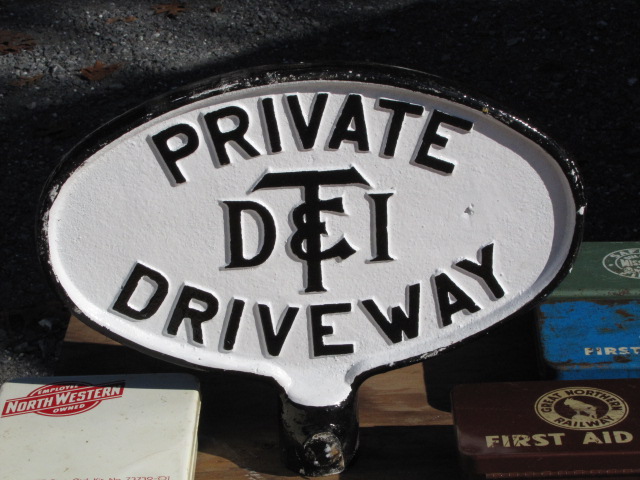

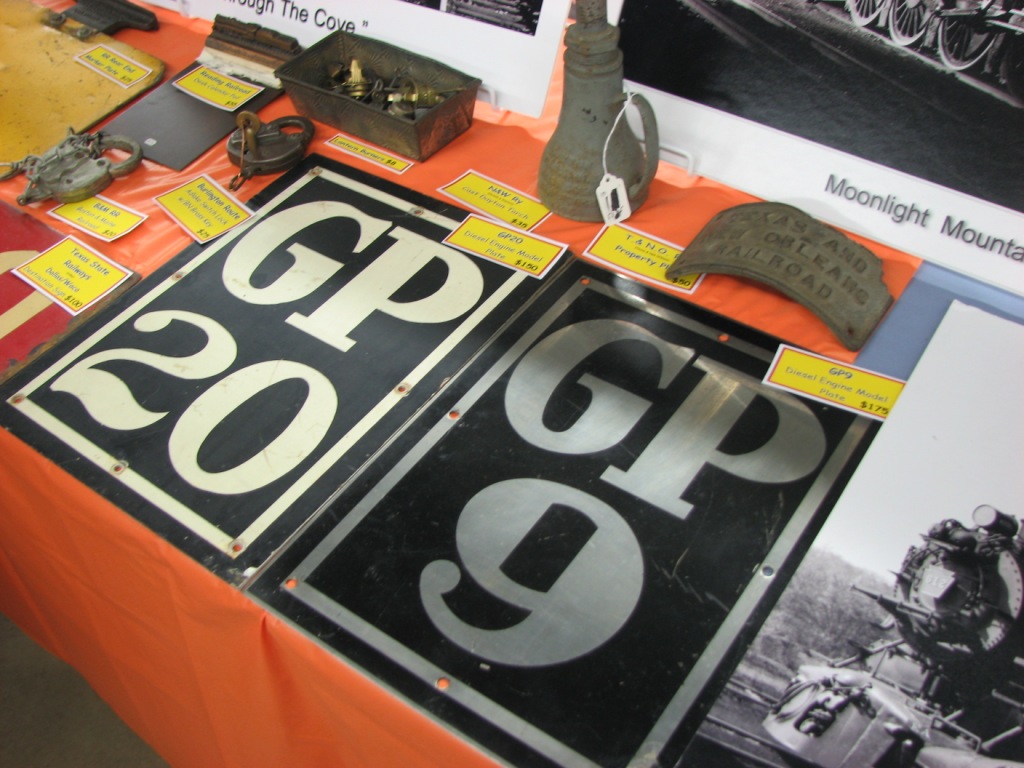

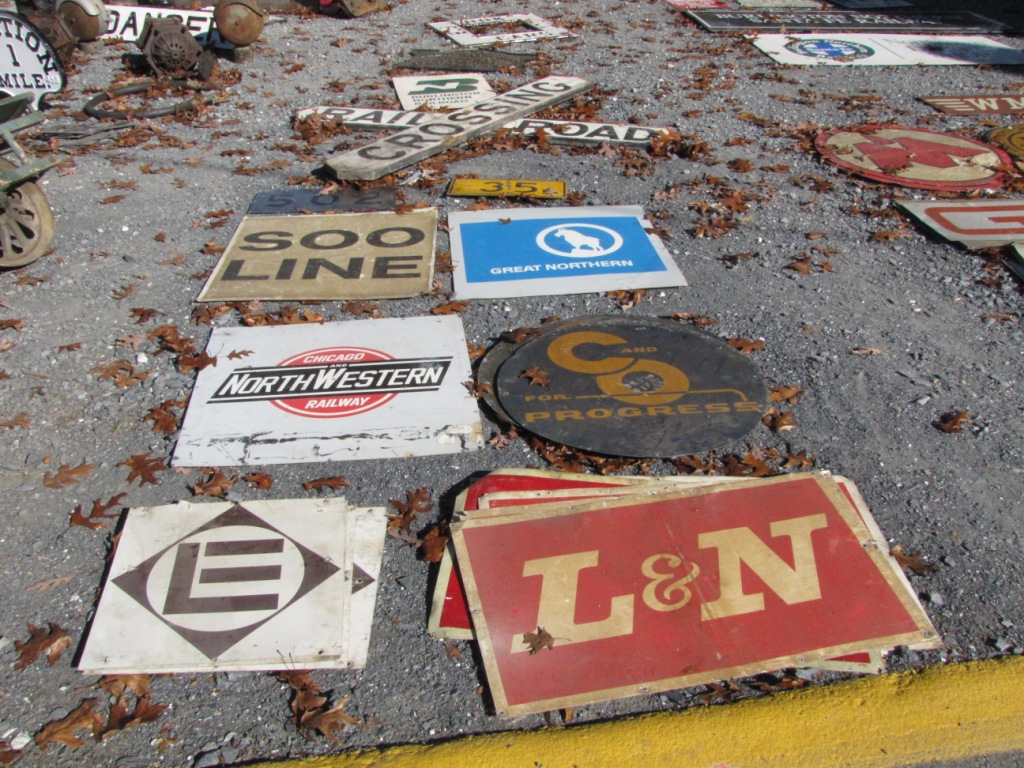

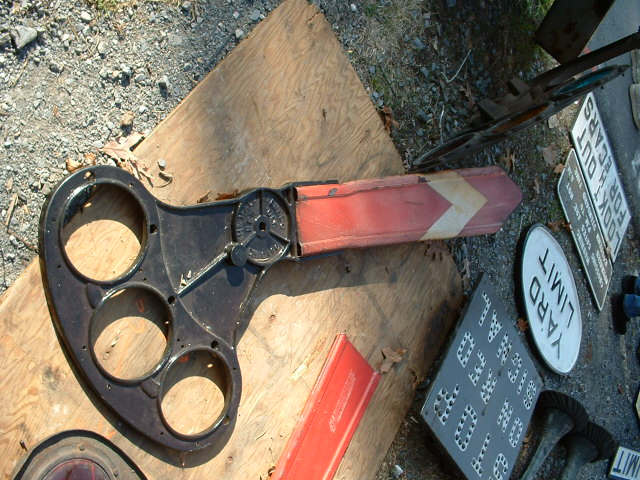

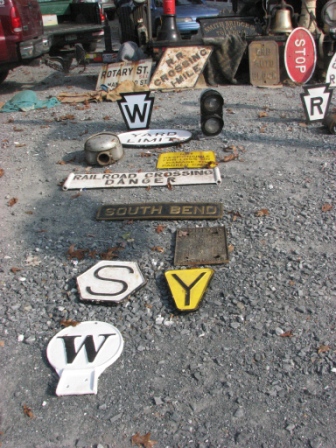

Miscellaneous signs found at (mostly) the Gaithersburg MD train show in November.  Pictures from the train this train show are labeled something like 5e123, the first number is the year the pictures were taken (exp 5e123 = 2005).  A lot of these signs appear year after year.

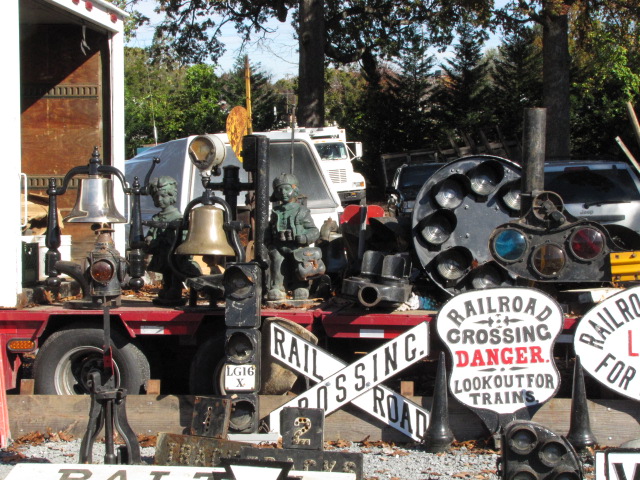

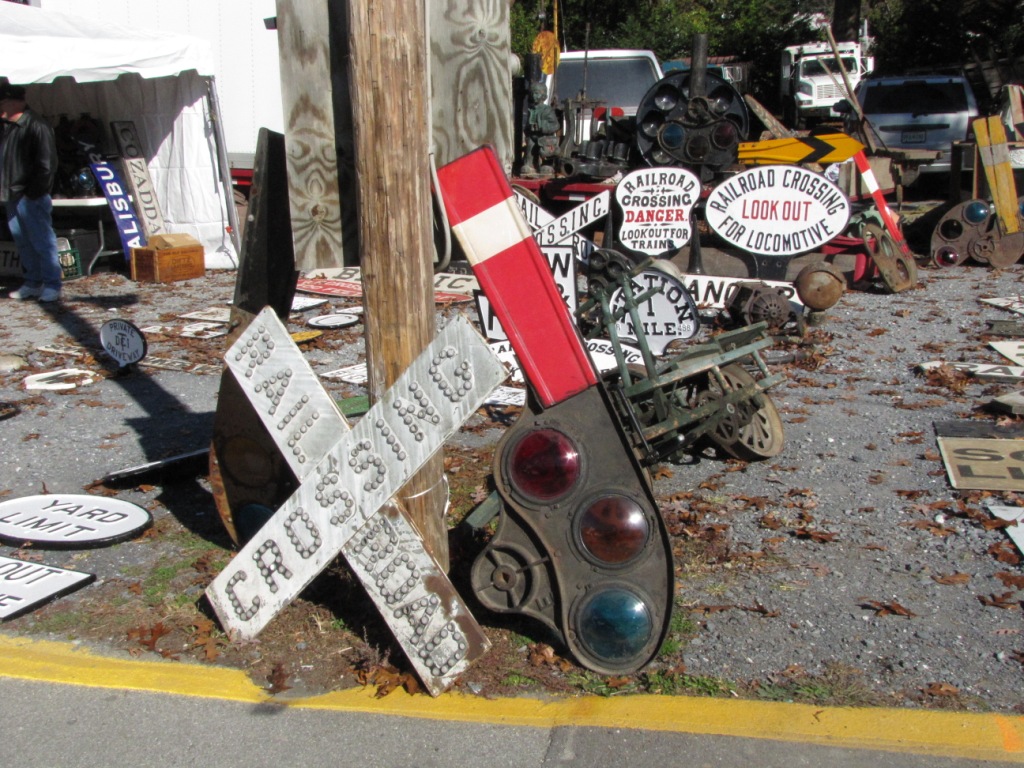

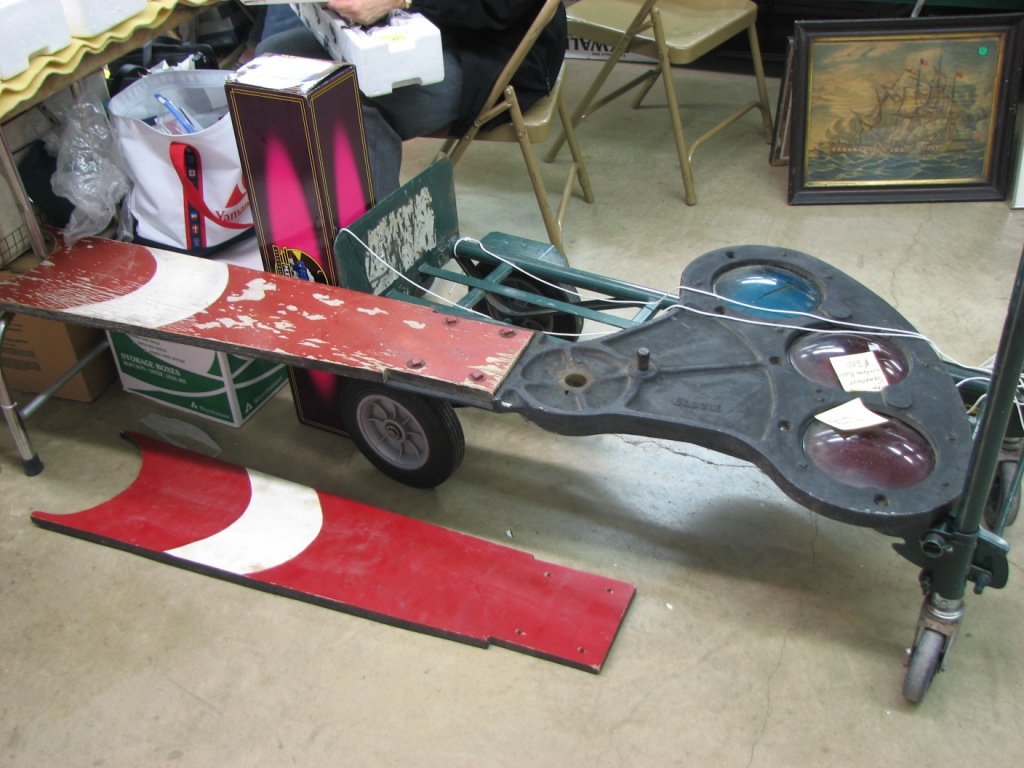

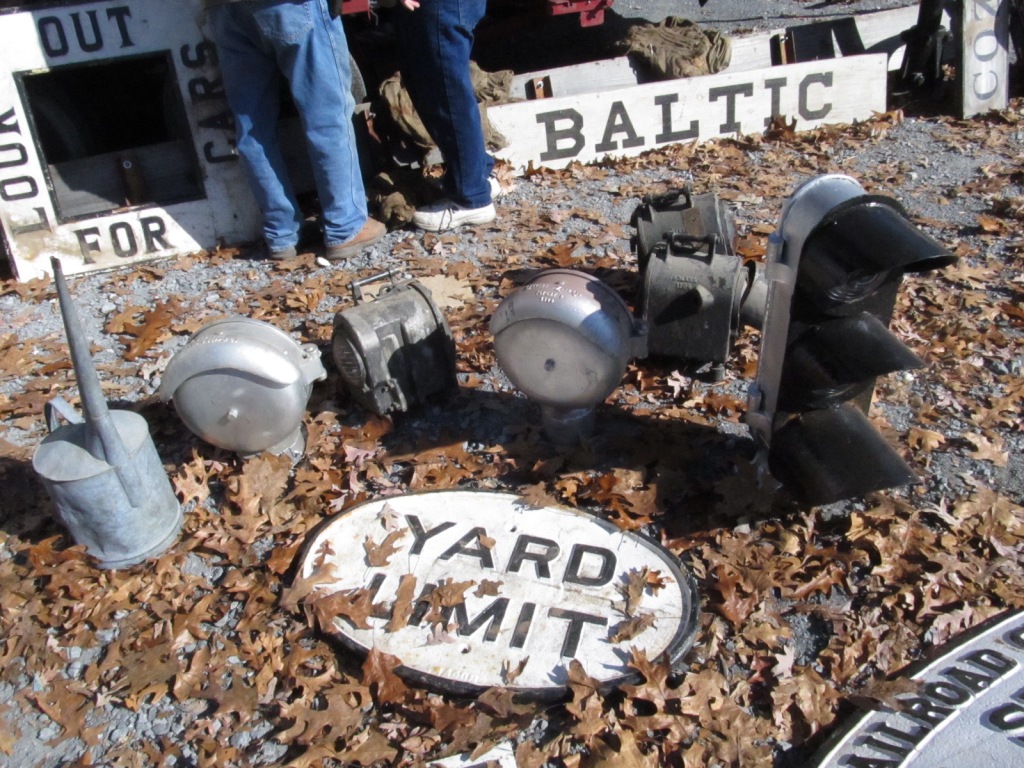

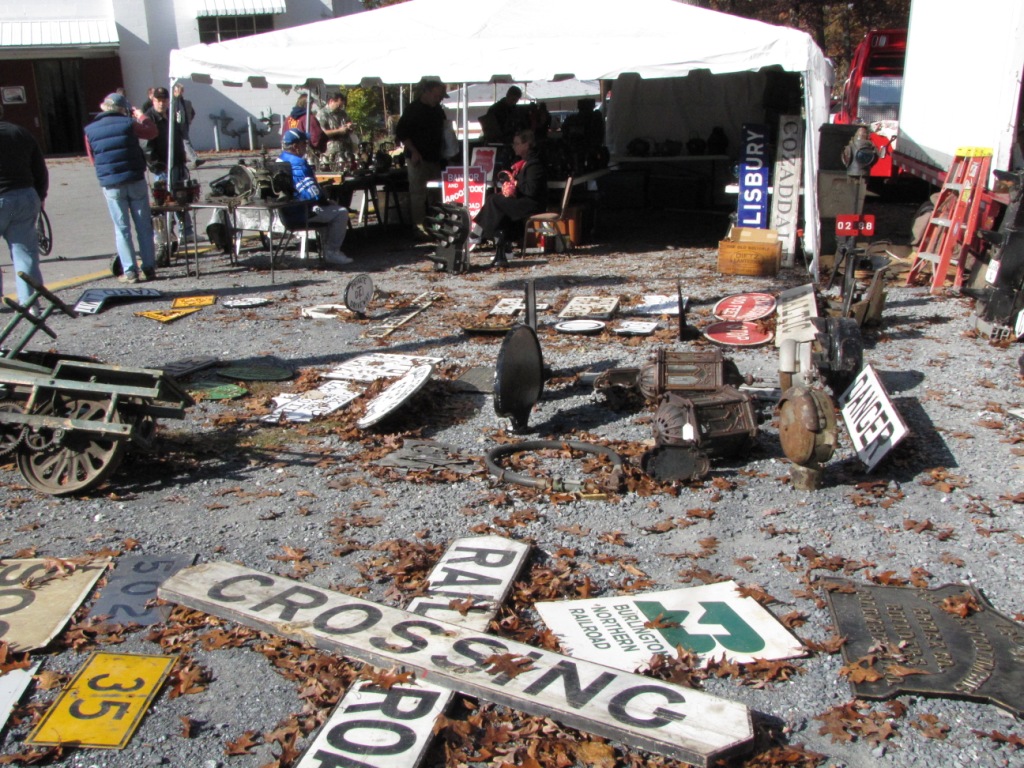

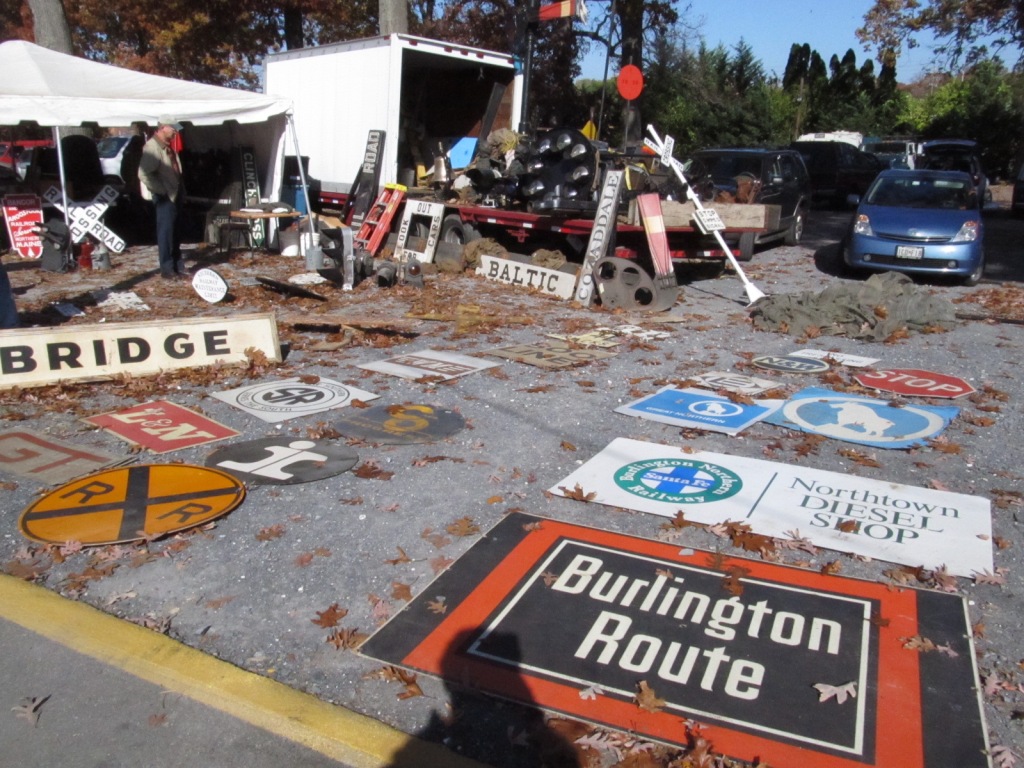

General views of the stuff Brian typically has every year....

  "Enter code now before white sign" by Delrey Tower in Detroit MI

  I'll probably get emails about this one, but it can be found at the Junction Valley RR, a quarter size RR in Michigan.

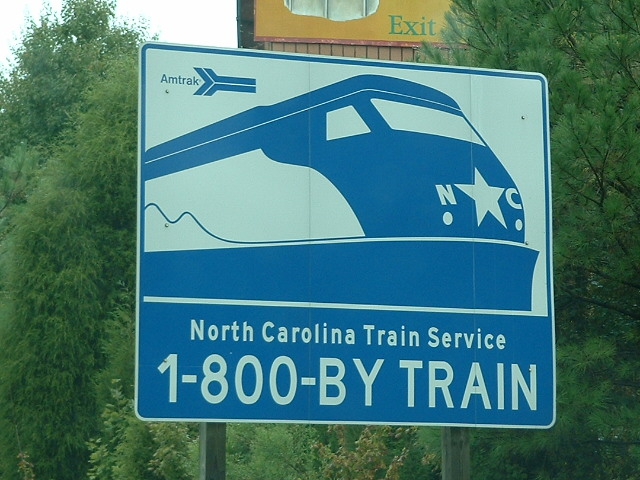

You will see about a dozen of these on I85 between Raleigh and Charlotte


      082805

This street sign pays tribute to the fact that Railroad Ave runs parallel to the CSX (B&O) tracks,
And the Thomas Viaduct is only a few hundred feet away,
This sign is only a few years old, as BaltCo just started using this style about 3-4 years ago,

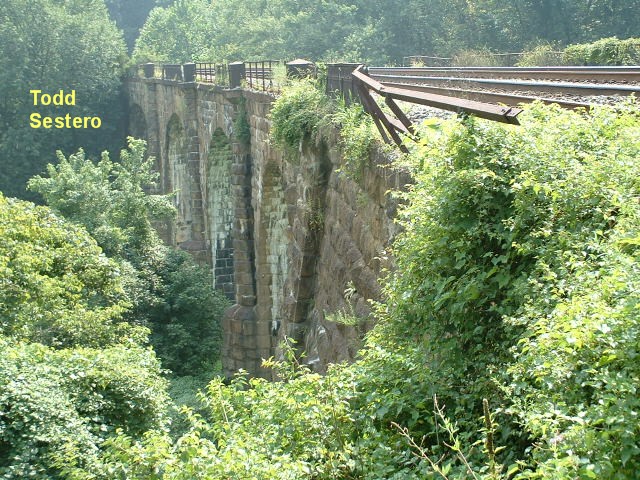

The thumbnail is a picture of Thomas Viaduct, alas, not a very good one,
Located in Relay (St. Denis) MD, a southwestern suburb of Baltimore MD in Baltimore County

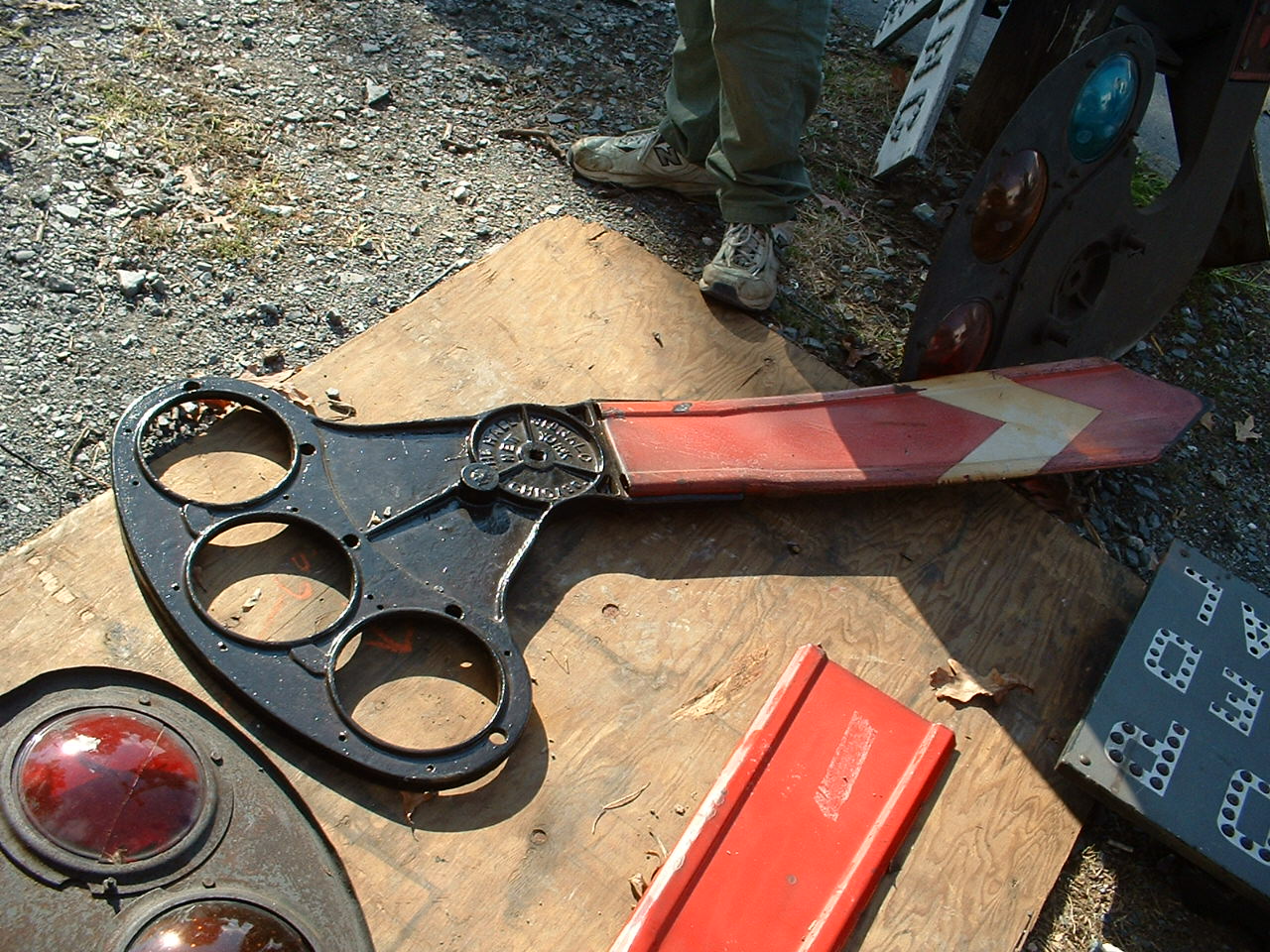

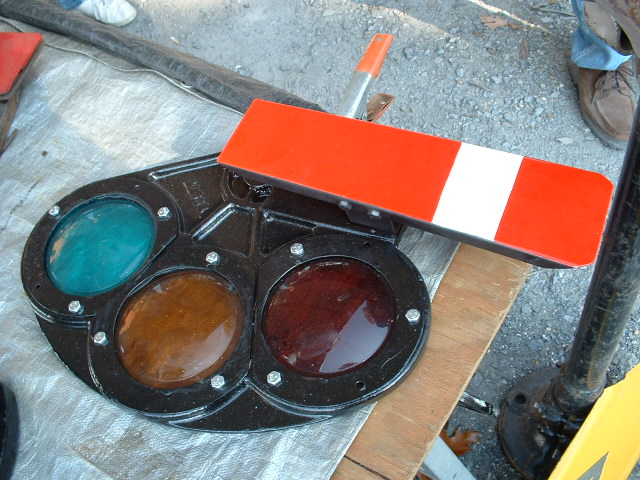

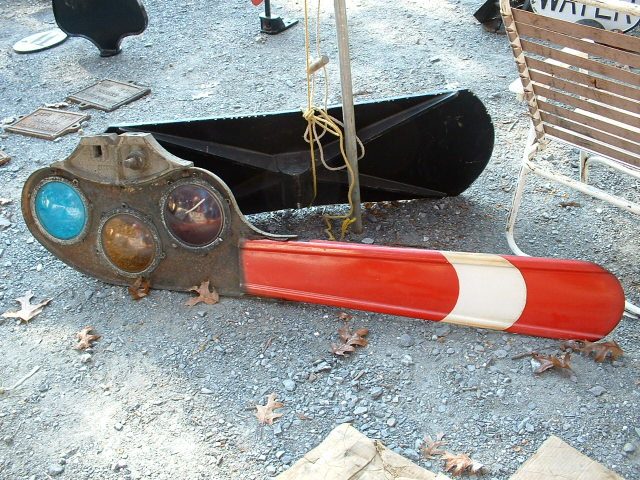

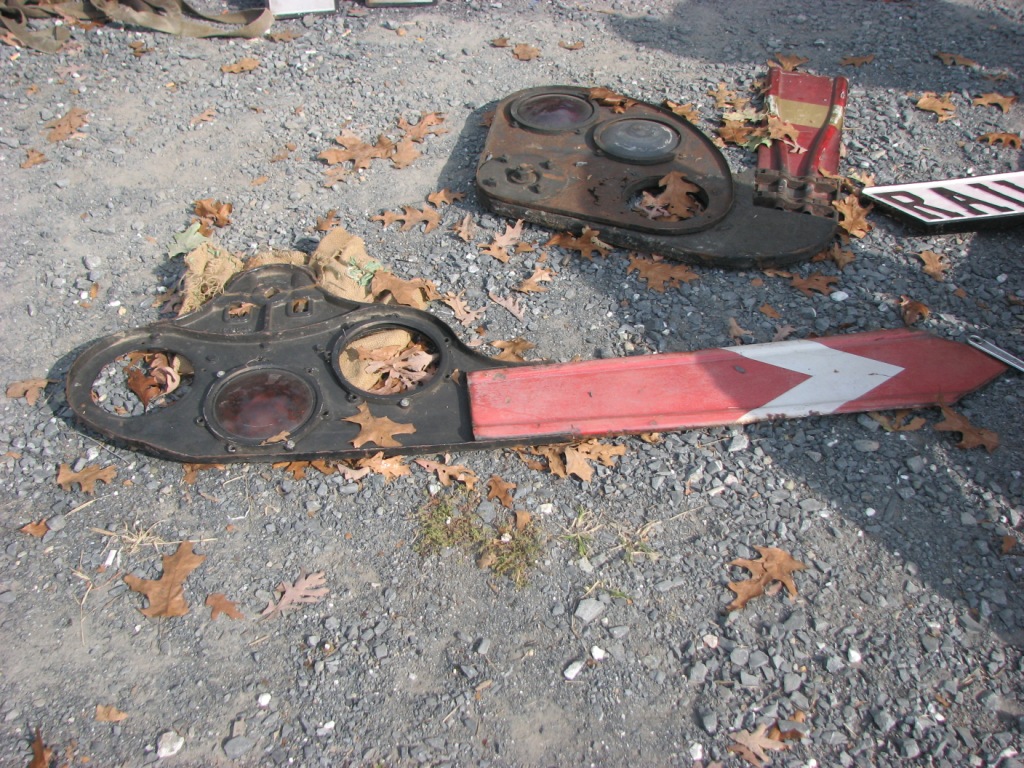

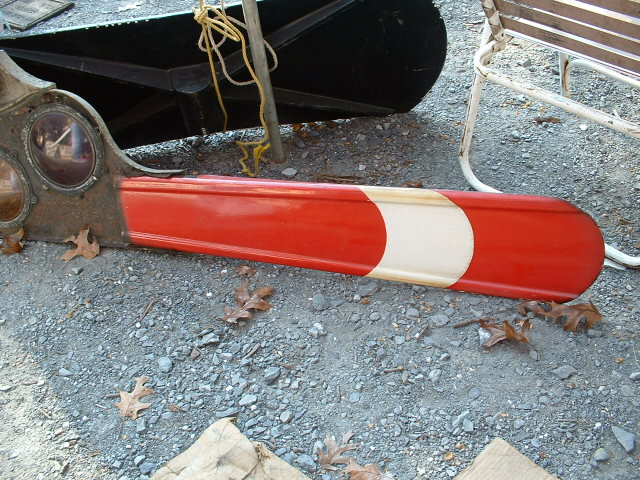

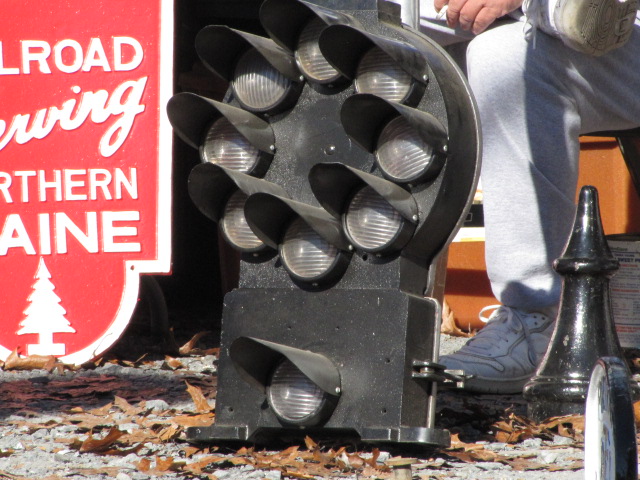

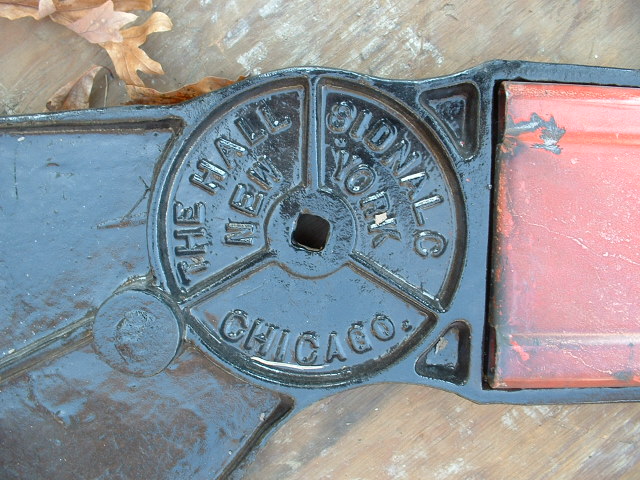

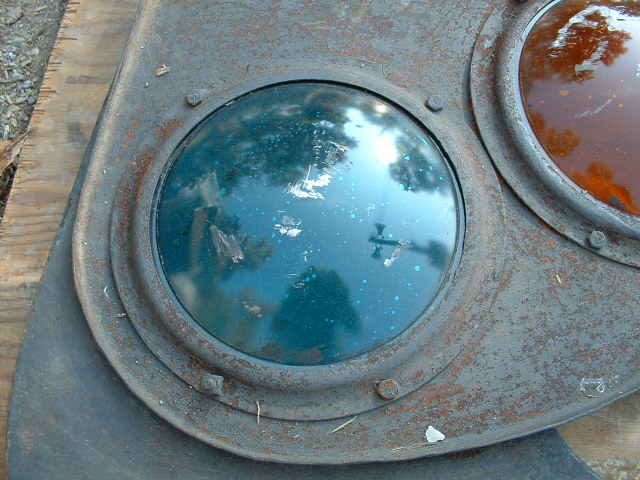

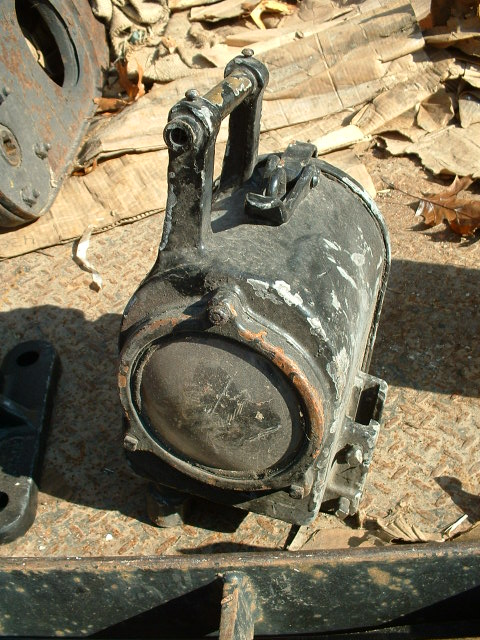

SIGNALS, SEMAPHORES, and SUCH
